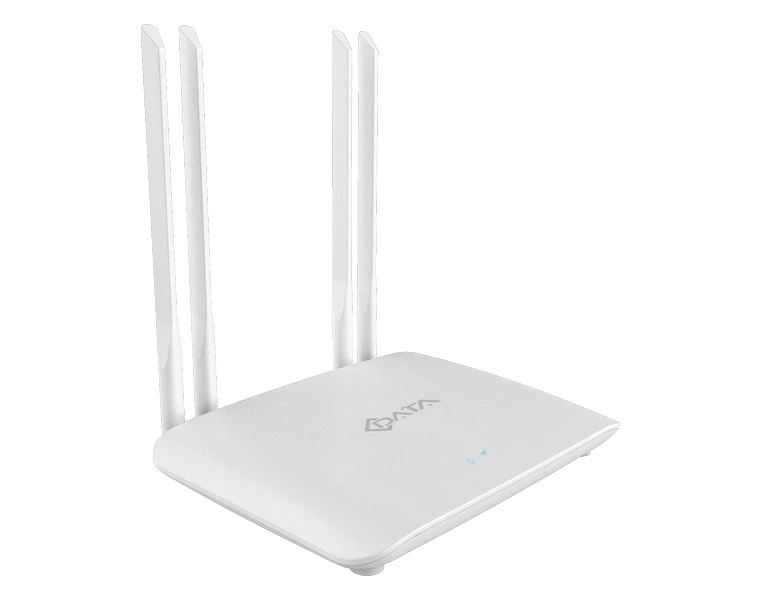

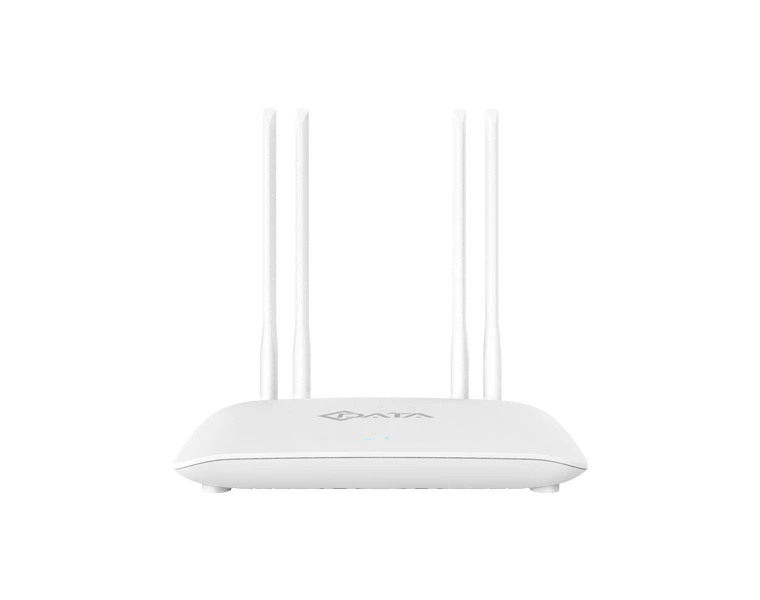

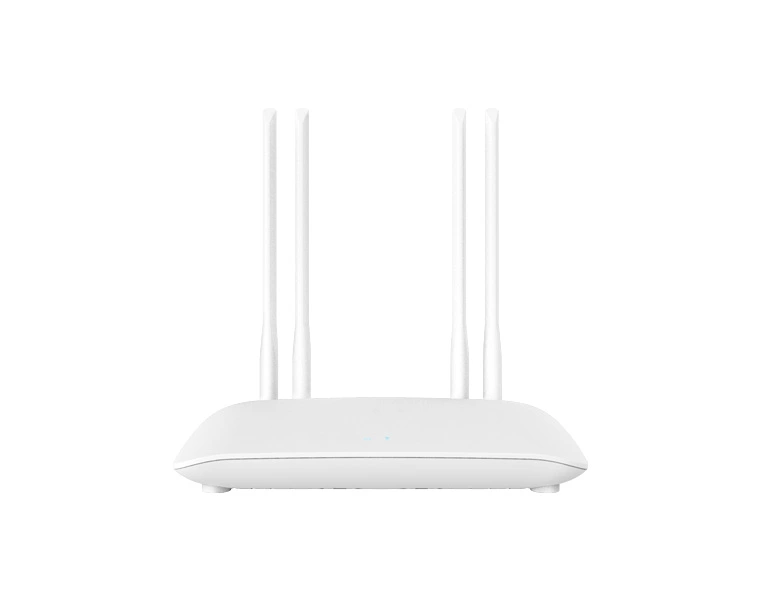

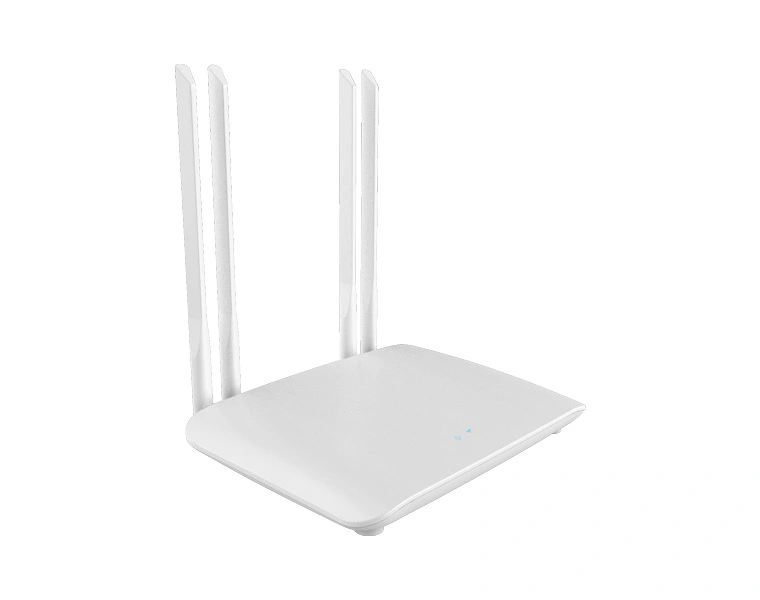

WR133F
1200Mbps / Fast Ethernet

WR133F Router is an AC1200 wireless dual band router specially designed for apartment. This kind of home router equipped with 64MB memory, which has larger data cache space, enables the system to run fast and stably.

It adopts the MTK mainstream chip solution. The built-in independent PA / LNA signal enhancement module and external 4 high-gain omnidirectional antennas produce strong signal penetration performance. This AC1200 wireless dual band router is widely used in various applications such as wireless relay, LED light / WIFI timer switch.

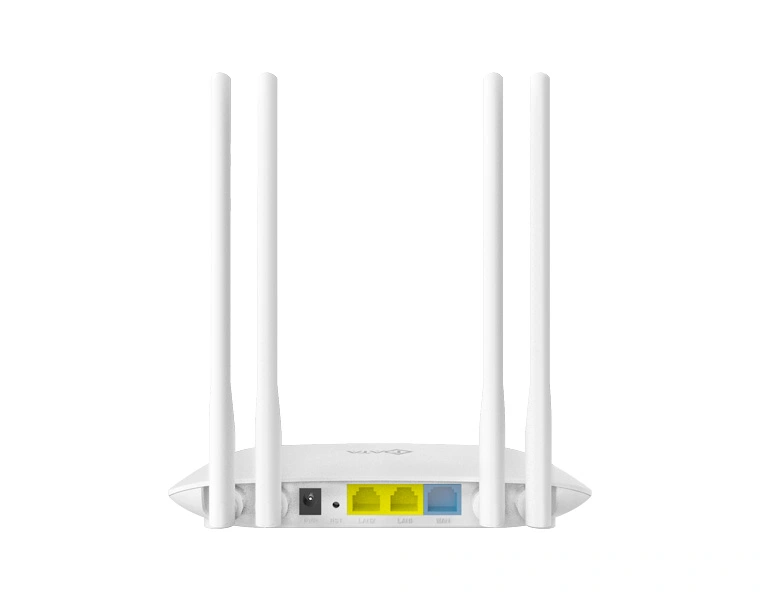

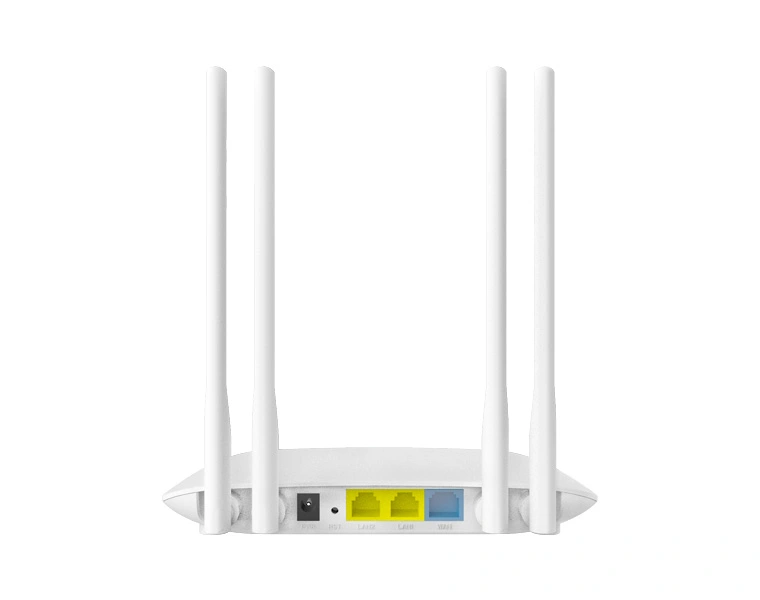

WR133F provides a maximum wireless access rate of 1200Mbps, 1 Ethernet WAN port, and 2 Ethernet LAN ports.

Technical Specifications

Item

WR133F

Specifications
1*FE RJ45 WAN + 2*FE RJ45 LAN + Wi-Fi5
Name
AC1200 Wireless Router
Model
WR133F
CPU
MTK CPU MT7628DAN
Memory /Storage
64MB/8MB
Wi-Fi Antennas
2×2.4GHz

2×5GHz

External 5dBi Gain
Protocol
IEEE 802.11a/b/g/n/ac
Wi-Fi Speed
2.4G Wi-Fi (Speed 300Mbps)

5G Wi-Fi (Speed 867Mbps)
LEDPowerGreen: Power on
Off: Power off
2.4G Wi-FiGreen: Wi-Fi up
Off: Wi-Fi down
5G Wi-Fi

InterfaceWAN1 RJ45 port ,10/100Mbps
LAN2 RJ45 port ,10/100Mbps
ResetButton
Transmit Power2.4G20dBm
2.4G enhanced23dBm
5G20dBm
Power Supply
DC12V/1A Adapter
Power Consumption
<6W
Dimension
180x130x26mm
Operating Temperature
-10~50℃
Storage Temperature
40~85℃
