WR135G manifests excellent capacity on data processing and energy conservation.
It applies low-power technology with good power dissipation.

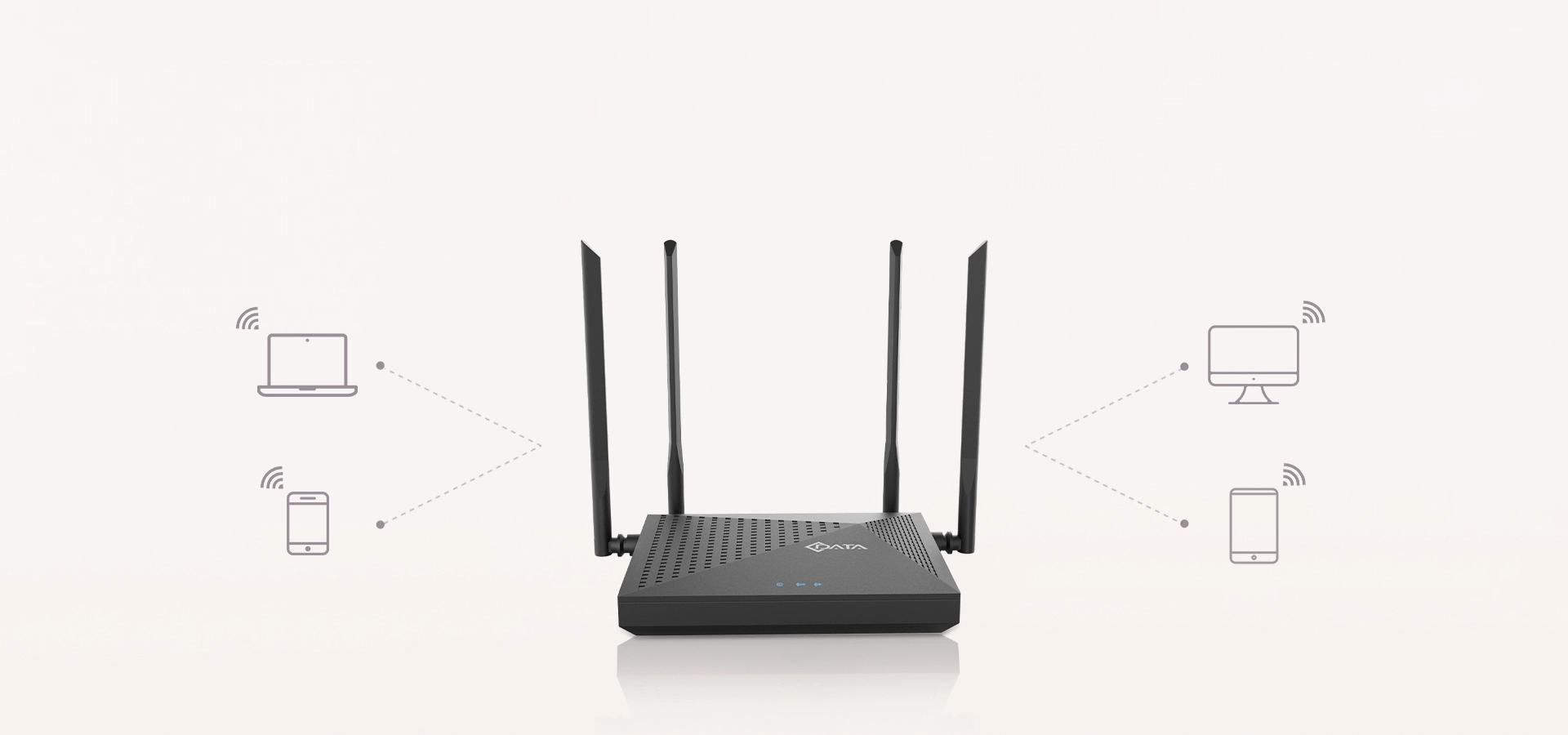

WR135G can communicate with multiple devices at a time, shortening latency and improving quantities of connected devices.
| Interface | WAN 1 RJ45 port, 10/100/1000Mbps LAN 4 RJ45 port, 10/100/1000Mbps |
| Wi-Fi Speed | 2.4G Wi-Fi (Speed 300Mbps), 5G Wi-Fi (Speed 867Mbps) |
| Transmit Power | 2.4G 20dBm 2.4G enhanced 23dBm 5G 20dBm |
| Wi-Fi Antennas | 2×2.4GHz, 2×5GHz, External 5dBi Gain |
| Size | 160x110x30mm |
| Power consumption | <6W |
| Item |
|
|
|
| |
| Specifications | 1*FE RJ45 WAN + 2*FE RJ45 LAN + Wi-Fi5 | 1*GE RJ45 WAN + 4*GE RJ45 LAN + Wi-Fi5 | 1*GE RJ45 WAN + 2*GE RJ45 LAN + Wi-Fi5 + Mesh AX1800 | 1*GE RJ45 WAN + 2*GE RJ45 LAN + Wi-Fi5 + Mesh AC1200 | |
| Name | AC1200 Wireless Router | AC1200 Wireless Router | AX1800 Wireless Router | AC1200 Wireless Router | |
| Model | WR133F | WR135G | WR535G | WR625G | |
| CPU | MTK CPU MT7628DAN | MTK CPU MT7621D | MTK CPU MT7621A | MTK CPU MT7621D | |
| Memory /Storage | 64MB/8MB | 128MB/8MB | 128MB/16MB | 128MB/16MB | |
| Wi-Fi Antennas | 2×2.4GHz | 2×2.4GHz | 2×2.4GHz | 2×2.4GHz | |
| 2×5GHz | 2×5GHz | 2×5GHz | 2×5GHz | ||
| External 5dBi Gain | External 5dBi Gain | Internal 3dBi Gain | Internal 3dBi Gain | ||
| Protocol | IEEE 802.11a/b/g/n/ac | IEEE 802.11a/b/g/n/ac | IEEE 802.11a/b/g/n/ac | IEEE 802.11a/b/g/n/ac | |
| Wi-Fi Speed | 2.4G Wi-Fi (Speed 300Mbps) | 2.4G Wi-Fi (Speed 300Mbps) | 2.4G Wi-Fi (Speed 600Mbps) | 2.4G Wi-Fi (Speed 300Mbps) | |
| 5G Wi-Fi (Speed 867Mbps) | 5G Wi-Fi (Speed 867Mbps) | 5G Wi-Fi (Speed 1200Mbps) | 5G Wi-Fi (Speed 867Mbps) | ||
| LED | Power | Green: Power on | Green: Power on | Blue Light Flashing: Mesh networking | Blue Light Flashing: Mesh networking |
| Off: Power off | Off: Power off | ||||
| 2.4G Wi-Fi | Green: Wi-Fi up | Green:2.4G Wi-Fi up | |||
| Off: Wi-Fi down | Off:2.4G Wi-Fi down | Green Light Successfully connected Mesh | Green Light Successfully connected Mesh | ||
| 5G Wi-Fi | Green:5G Wi-Fi up | ||||
| Off:5G Wi-Fi down | |||||
| Interface | WAN | 1 RJ45 port ,10/100Mbps | 1 RJ45 port ,10/100/1000Mbps | 1 RJ45 port ,10/100/1000Mbps | 1 RJ45 port ,10/100/1000Mbps |
| LAN | 2 RJ45 port ,10/100Mbps | 4 RJ45 port ,10/100/1000Mbps | 2 RJ45 port ,10/100/1000Mbps | 2 RJ45 port ,10/100/1000Mbps | |
| Reset | Button | Button | Button | Button | |
| Transmit Power | 2.4G | 20dBm | 20dBm | 23dBm | 20dBm |
| 2.4G enhanced | 23dBm | 23dBm | |||
| 5G | 20dBm | 20dBm | 21dBm | 20dBm | |
| Power Supply | DC12V/1A Adapter | DC12V/1A Adapter | DC12V/1A Adapter | DC12V/1A Adapter | |
| Power Consumption | <6W | <6W | <10W | <10W | |
| Dimension | 180x130x26mm | 160x110x30mm | 166x120x80mm | 166x120x80mm | |
| Operating Temperature | -10～50℃ | -10～50℃ | -10～50℃ | -10～50℃ | |
| Storage Temperature | 40～85℃ | -40～85℃ | -40～85℃ | -40～85℃ |
