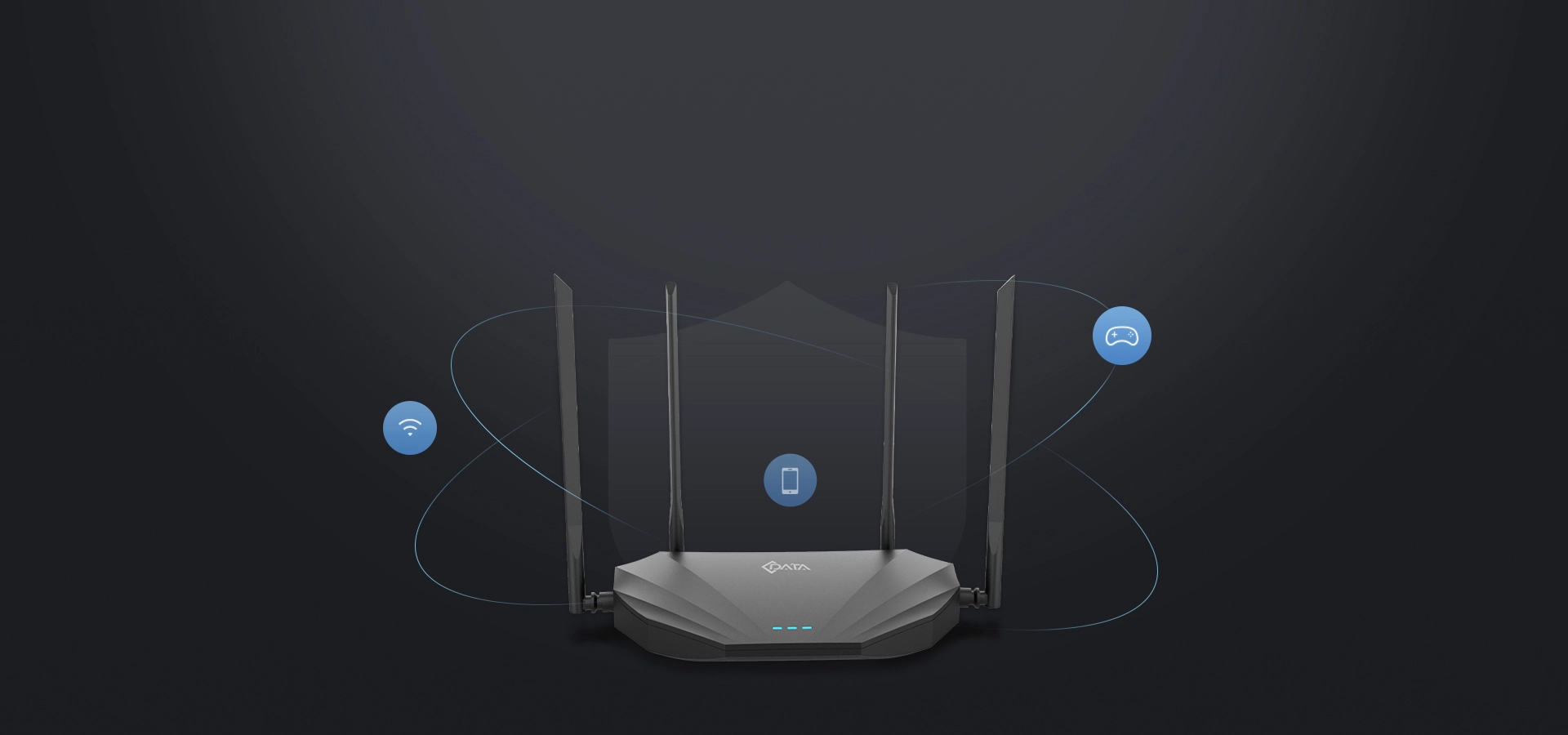

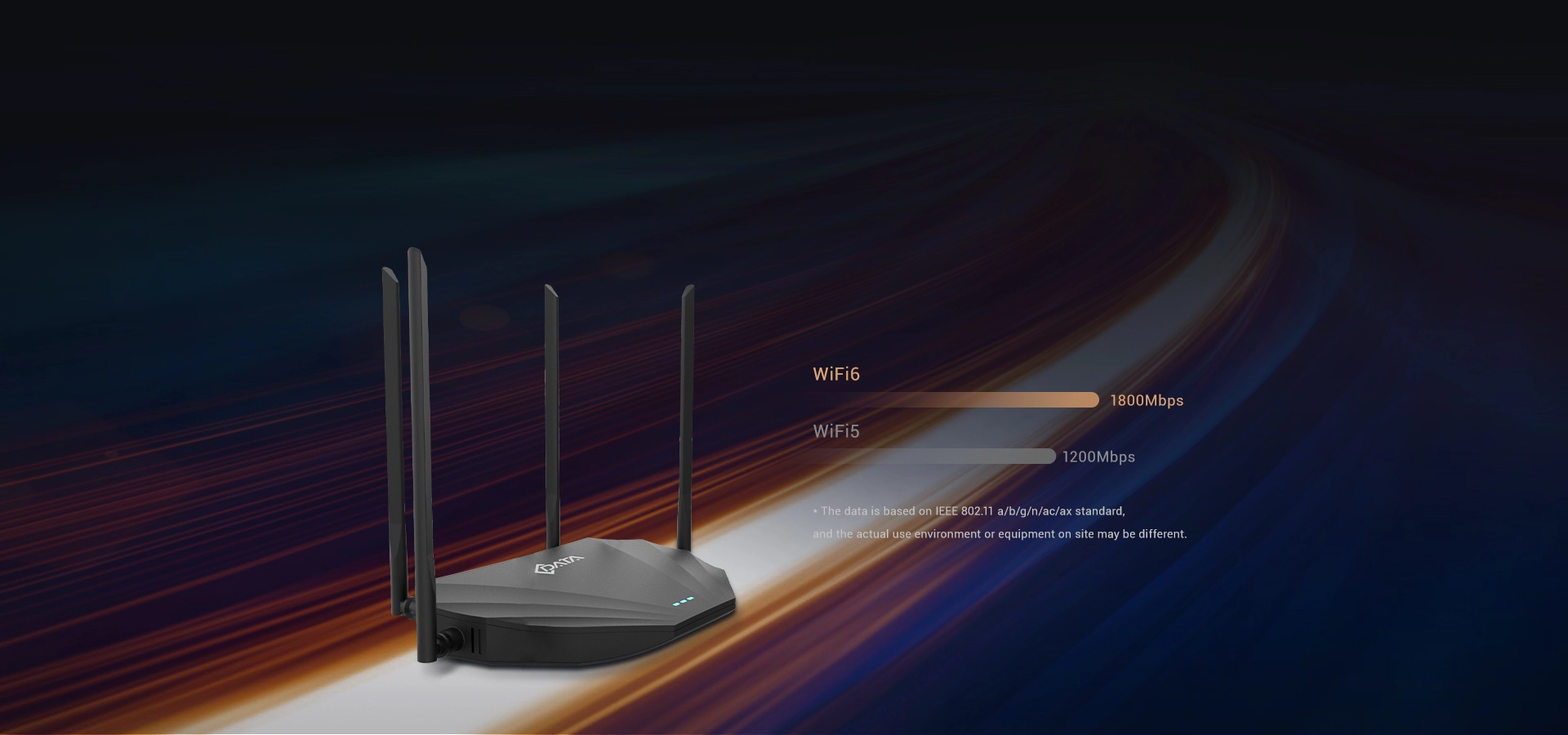

Compared with mainstream WiFi 5, C-Data WiFi 6 router AX1800 increases the theoretical maximum wireless rate by 65%.
With full gigabit network ports, providing you a high-speed network!

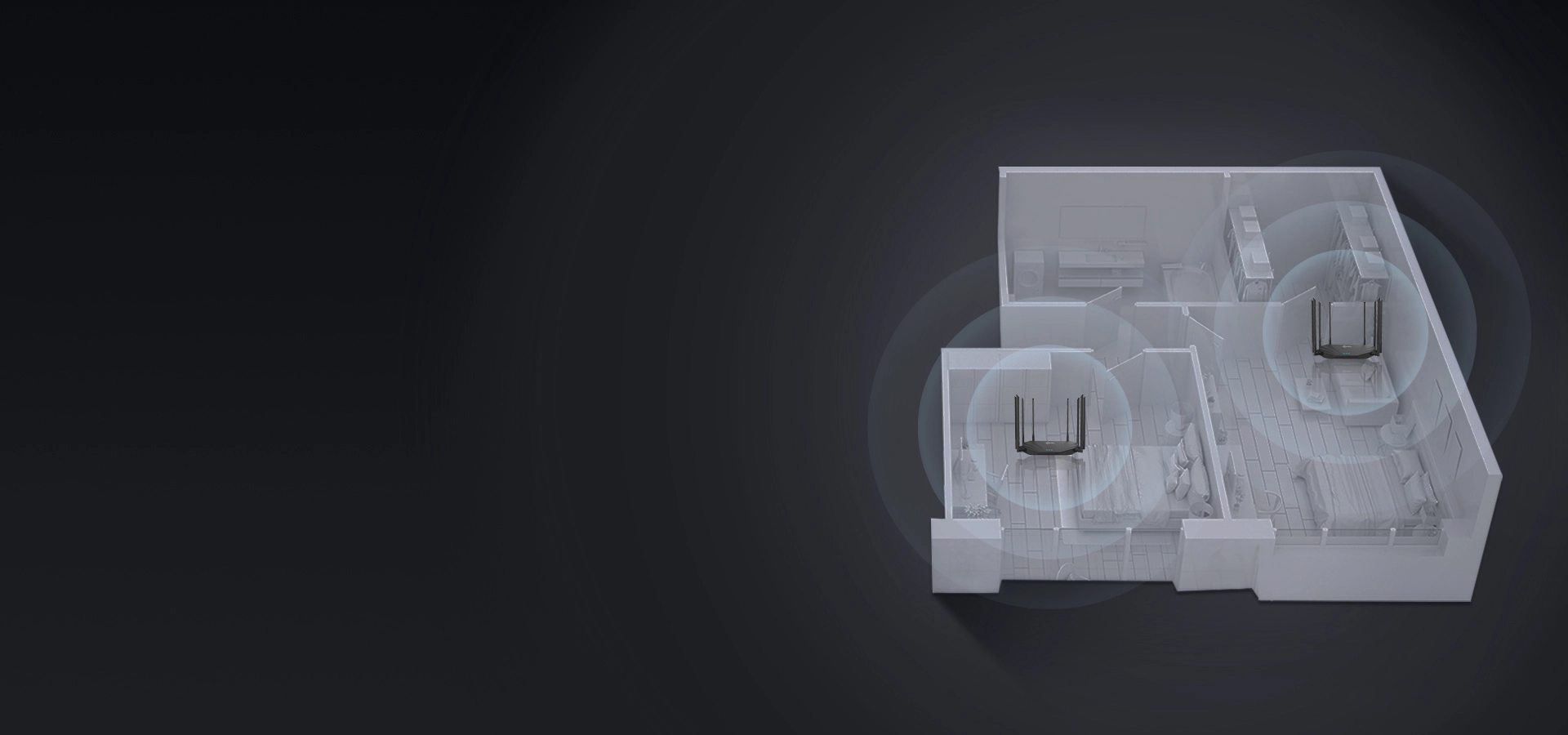

Band steering, Combined with 2.4G’s wall Penetration Capability and 5G’s fast Speed, automatic optimization according to the environment, avoiding disturbance.

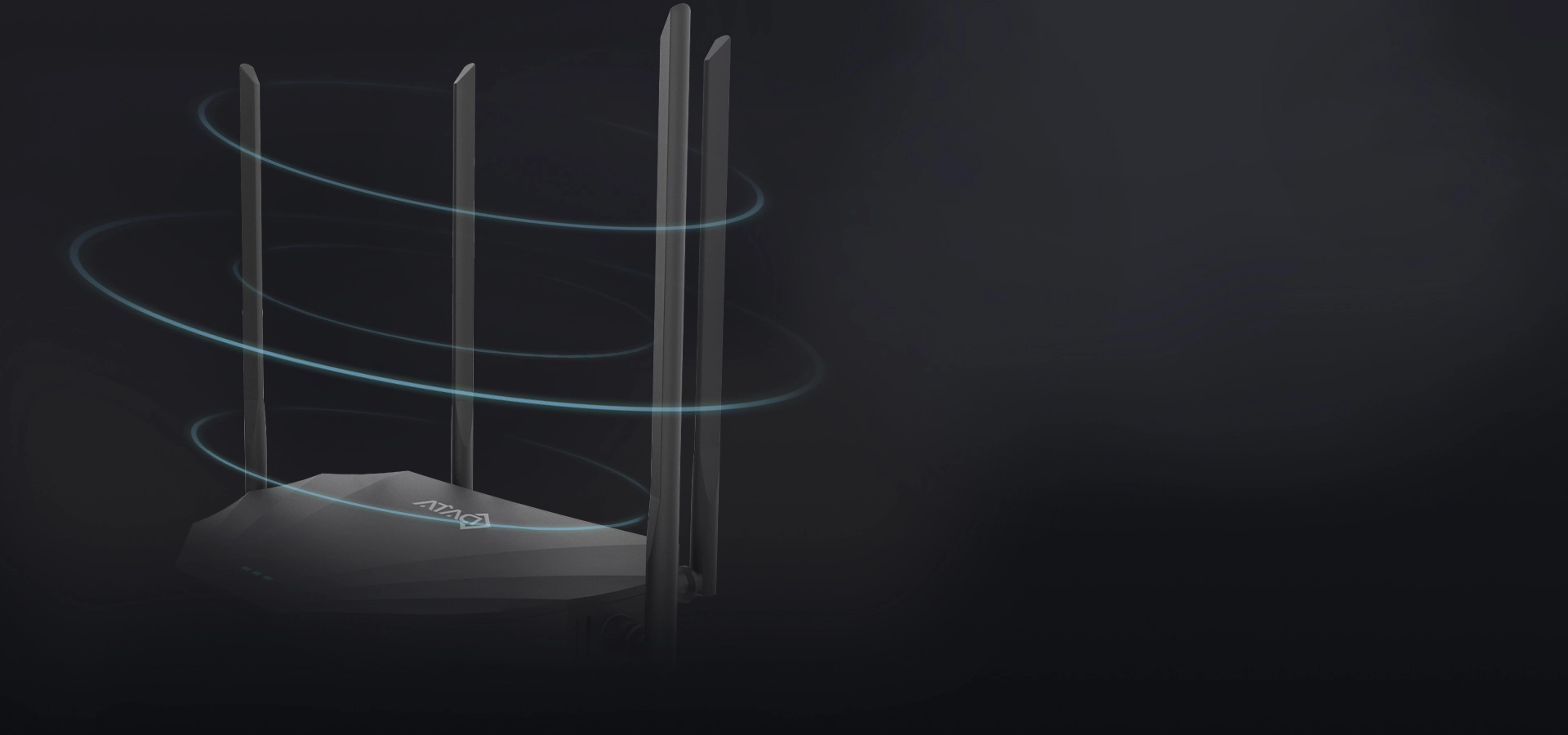

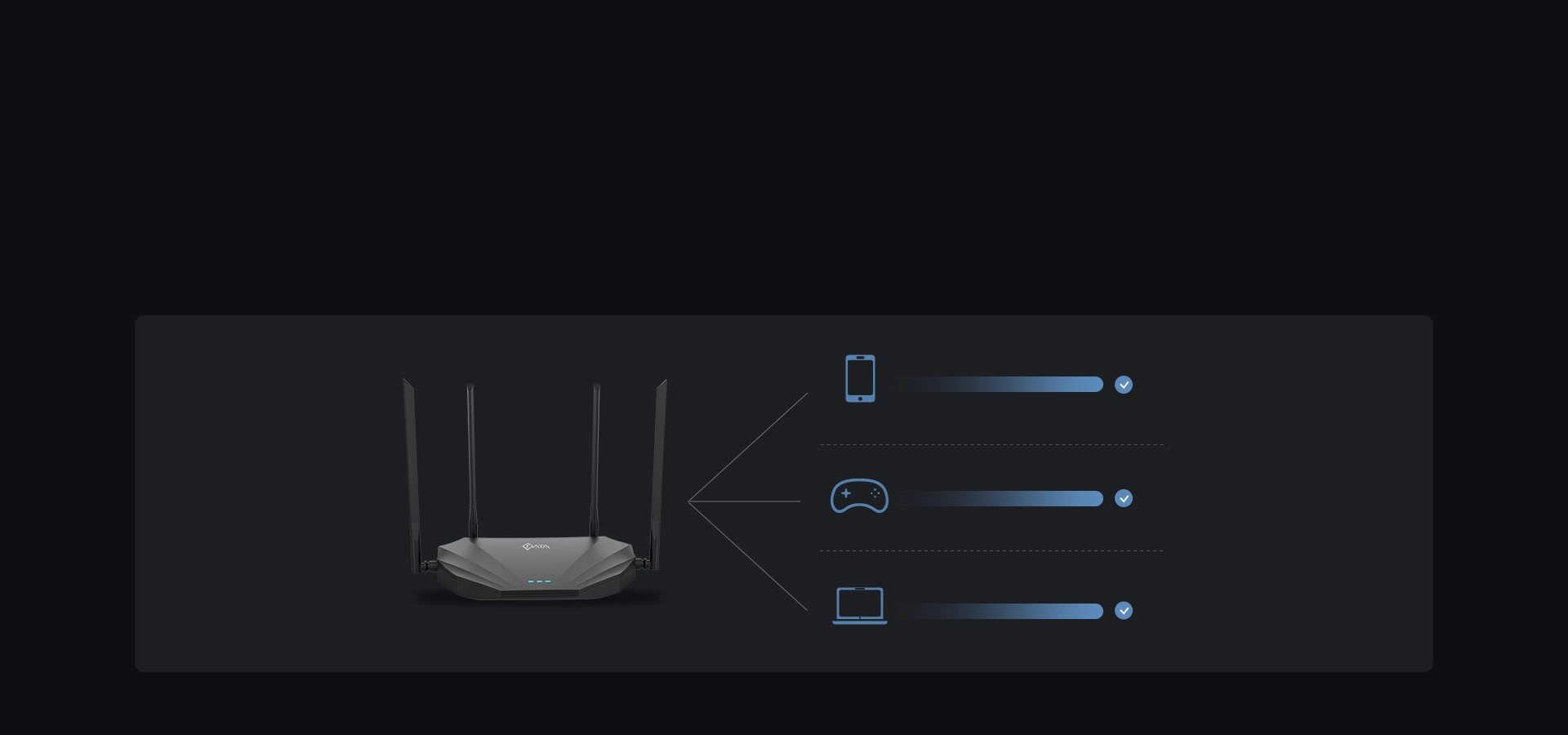

Downlink and uplink MU-MIMO technology alleviates the common channel interference between users and effectively improves the efficiency of data transmission. Multiple devices can access the Internet together without queuing!

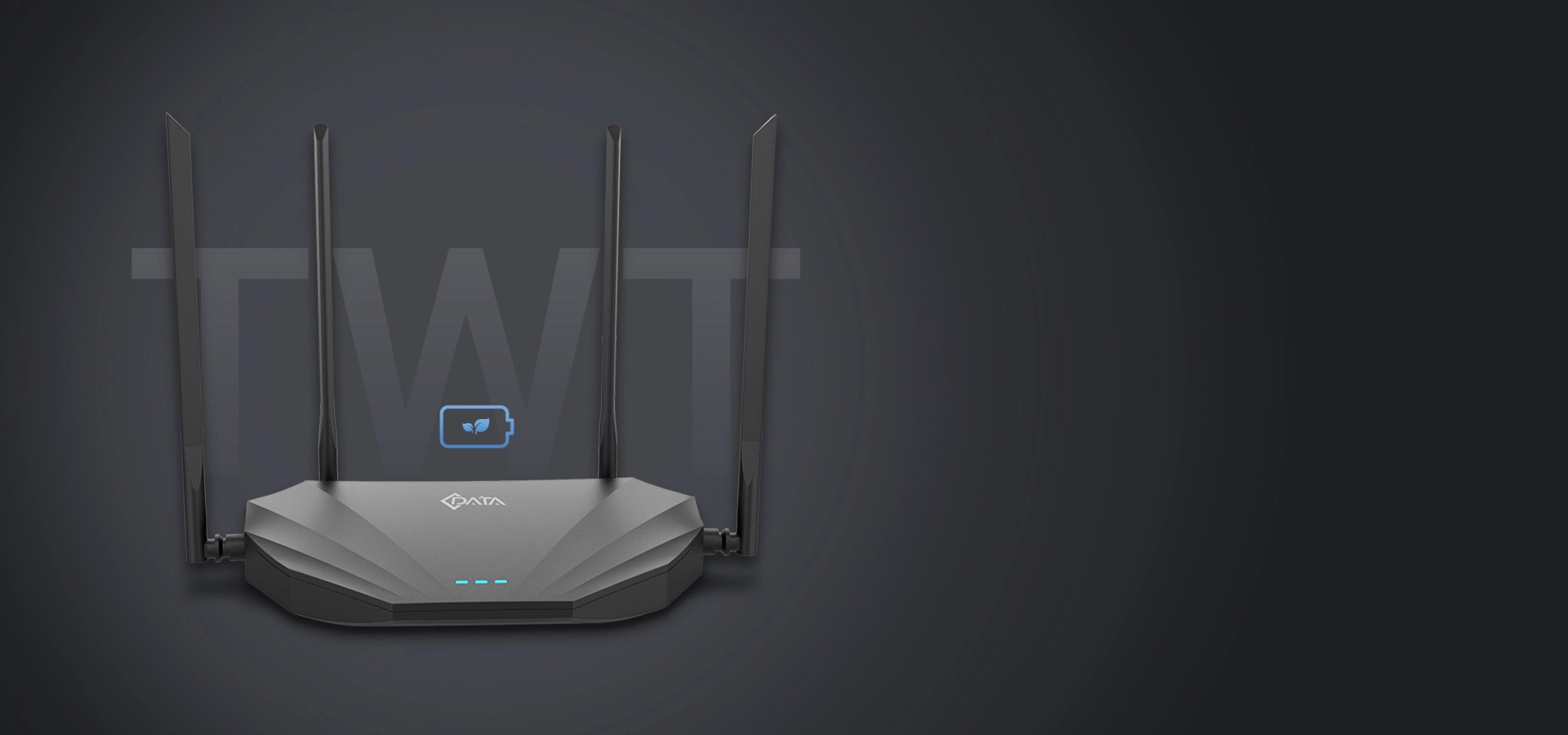

TWT (target wake time) technology allows wifi6 routers to connect only when they receive the transmission signal, and they are in sleep for other periods of time, so as to reduce power consumption.
IPv6 improves the forwarding efficiency of routers and has higher security, making games more enjoyable and online shopping safer.
| CPU | MTK CPU MT7621A |
| Memory /Storage | 128MB/16MB |
| Wi-Fi Antennas | 2×2.4GHz; 2×5GHz ; External 7dBi Gain |
| Protocol | IEEE 802.11a/b/g/n/ac/ax |
| Wi-Fi Speed | 2.4G Wi-Fi (Speed 600Mbps) 5G Wi-Fi (Speed 1200Mbps) |

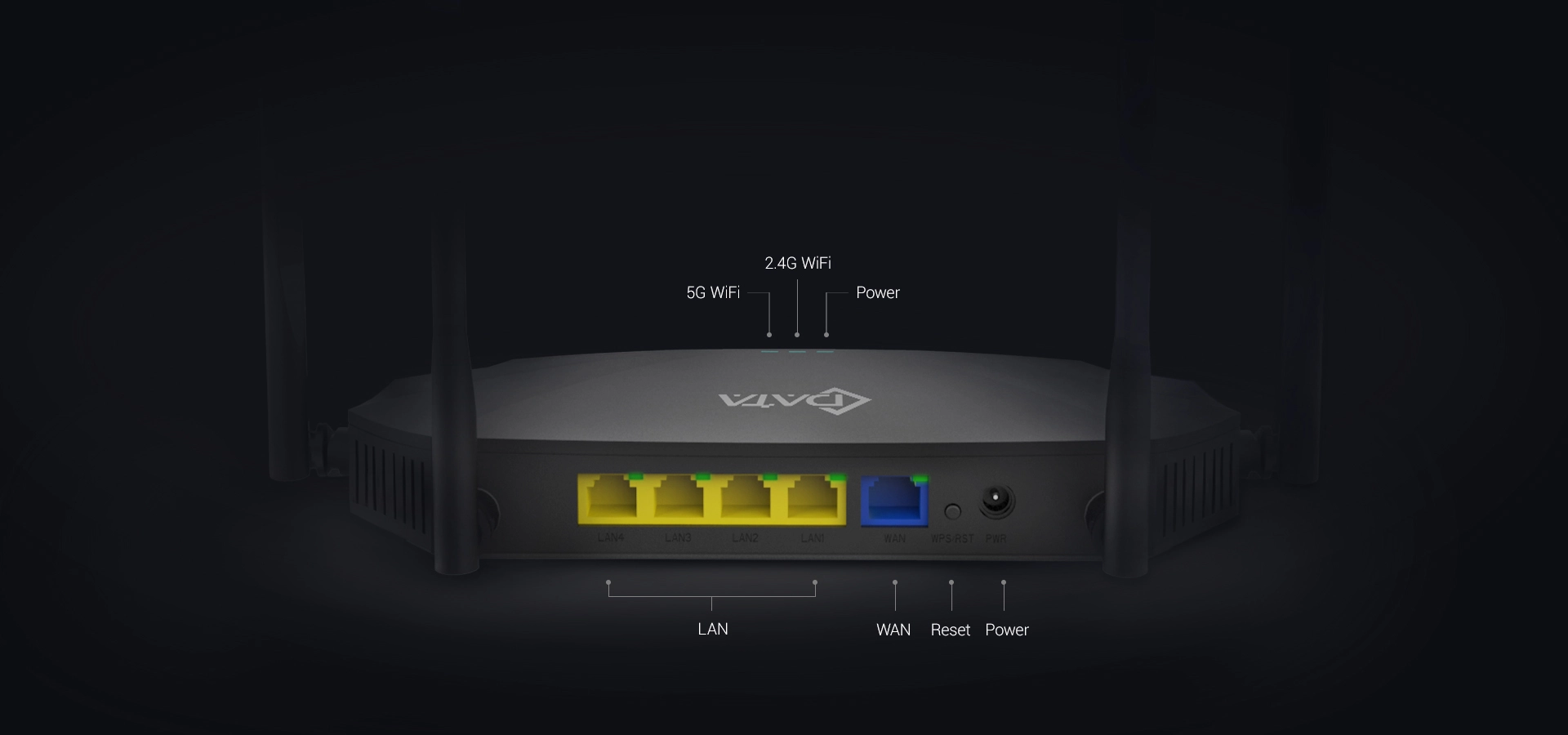

| Interface | WAN 1 RJ45 port ,10/100/1000Mbps LAN 4 RJ45 port ,10/100/1000Mbps Reset Button |
| Item |
| |
| Specifications | 1*GE RJ45 WAN + 4*GE RJ45 LAN + Wi-Fi6 AX1800 | |
| Name | AX1800 Wireless Router | |
| Model | WR525G | |
| CPU | MTK CPU MT7621DA/MT7621A | |
| Memory /Storage | 128MB/16MB | |
| Wi-Fi Antennas | 2×2.4GHz | |
| 2×5GHz | ||
| External 7dBi Gain | ||
| Protocol | IEEE 802.11a/b/g/n/ac/ax | |
| Wi-Fi Speed | 2.4G Wi-Fi (Speed 600Mbps) | |
| 5G Wi-Fi (Speed 1200Mbps) | ||
| LED | Power | Green: Power on |
| Off: Power off | ||
| 2.4G Wi-Fi | Green:2.4G Wi-Fi up | |
| Off:2.4G Wi-Fi down | ||
| 5G Wi-Fi | Green:5G Wi-Fi up | |
| Off:5G Wi-Fi down | ||
| Interface | WAN | 1 RJ45 port ,10/100/1000Mbps |
| LAN | 4 RJ45 port ,10/100/1000Mbps | |
| Reset | Button | |
| Transmit Power | 2.4G | 23dBm |
| 5G | 20dBm | |
| Power Supply | DC12V/1A Adapter | |
| Power Consumption | <12W | |
| Dimension | 234x148x31mm | |
| Operating Temperature | -10～50℃ | |
| Storage Temperature | -40～85℃ |
| NO. | Product Model | Specifications | Accessories |
| 1 | R6300 | 4*GE RJ45 + Optional USB3.0 + Wi-Fi6 AX3000 | |
| 2 | WR525G | 1*GE RJ45 WAN + 4*GE RJ45 LAN + Wi-Fi6 AX1800 |
