Unmanaged Ethernet Switch

Eight-Port Full Gigabit Exquisite New Experience
Eight-Port Full Gigabit Exquisite New Experience

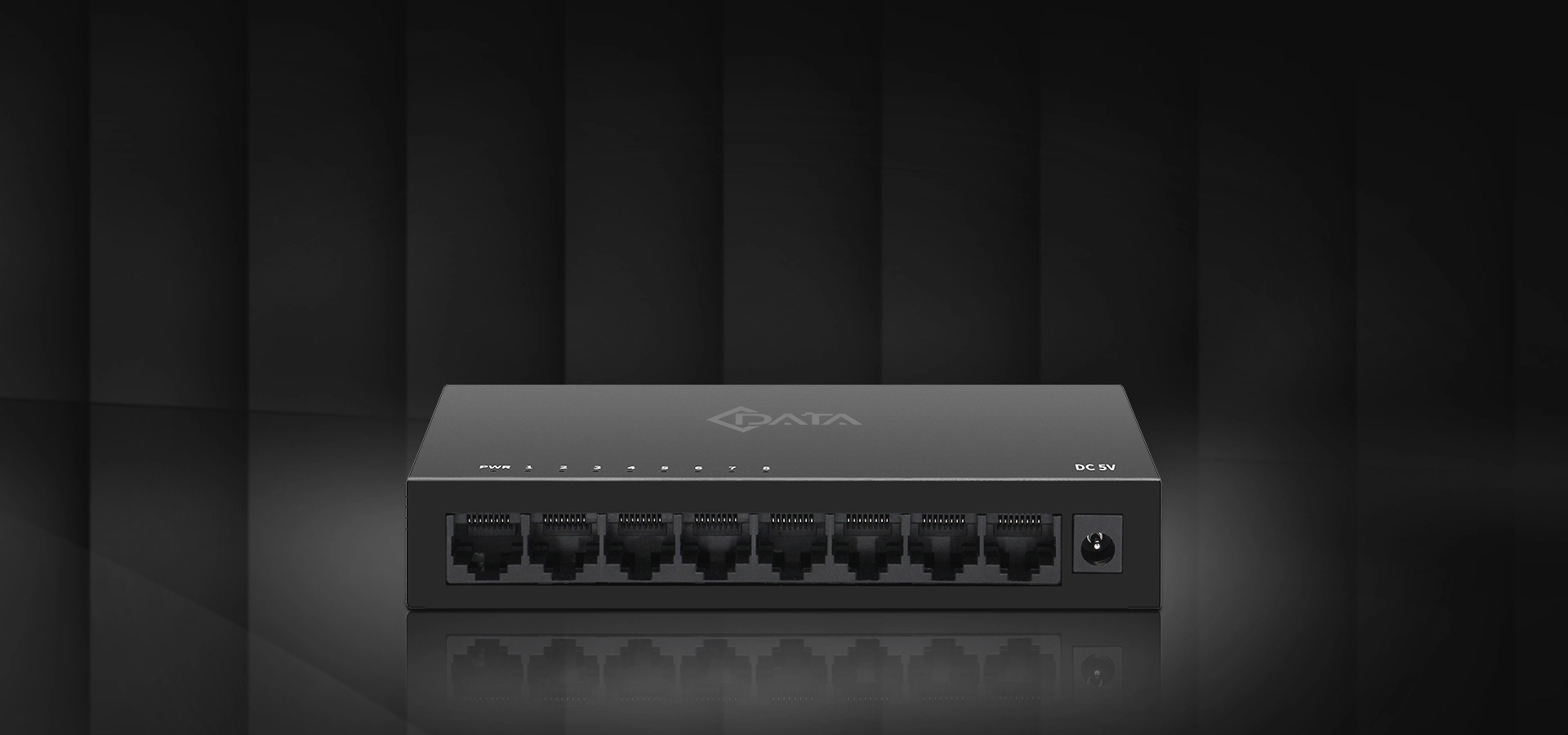

Eight-Port Full Gigabit Ethernet Switch

Plug and Play, Fast Networking    I    High Speed, Full Gigabit Port    I    Save Space, Exquisite Mini    I    Energy Saving, Energy-Efficient Ethernet Technology

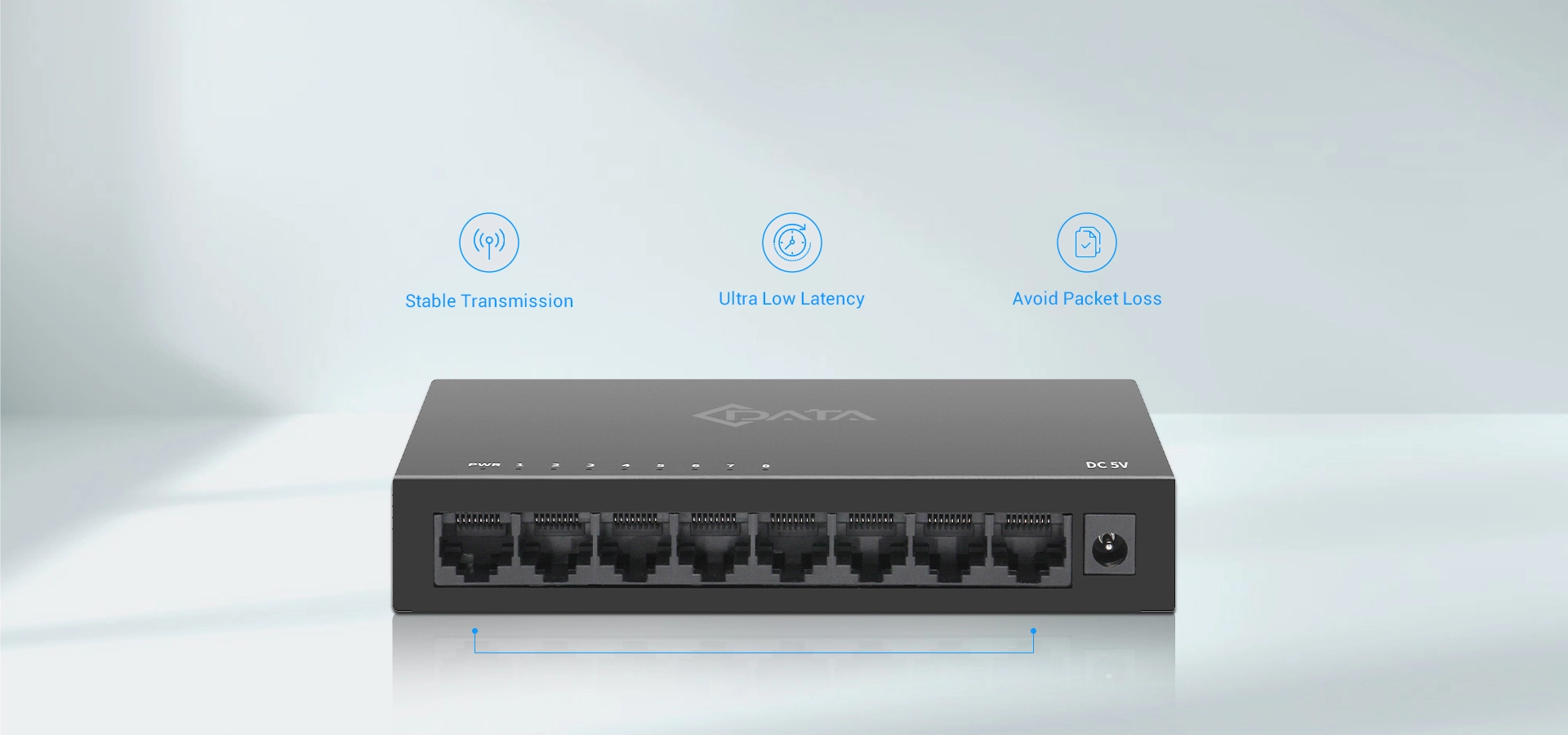

Gigabit Forwarding, High-Speed and Stable Transmission
Gigabit Forwarding, High-Speed and Stable Transmission

With eight full gigabit ports. The storage and forwarding mechanism is used to realize full gigabit non-blocking wire-speed forwarding, ensure efficient and stable data transmission, and support gigabit networking easily.

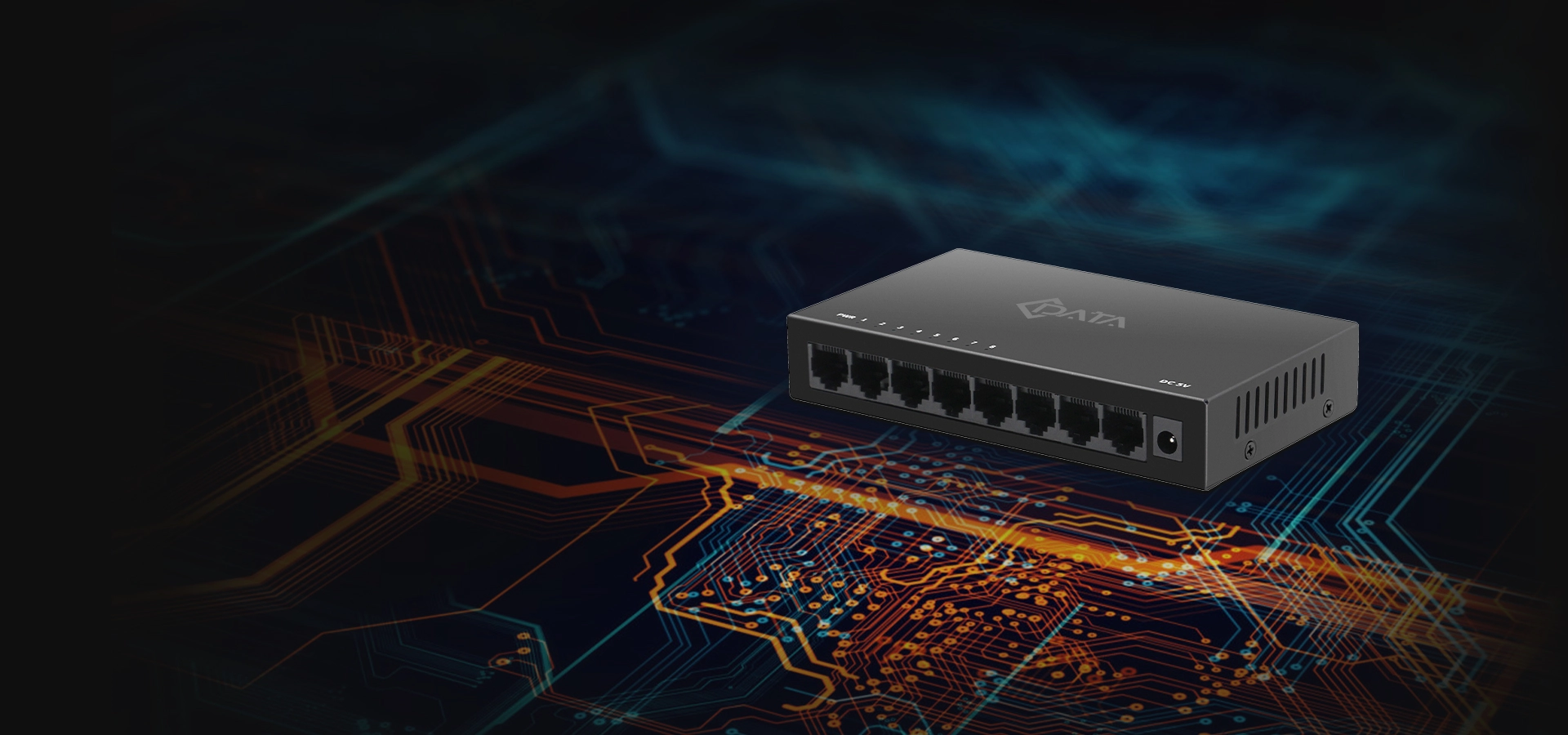

Eight-Core Ethernet Ports, Stable Transmission
Eight-Core Ethernet Ports, Stable Transmission

Each Ethernet port adopts eight-core design to prevent interference in data transmission and greatly improve the stability of network transmission.

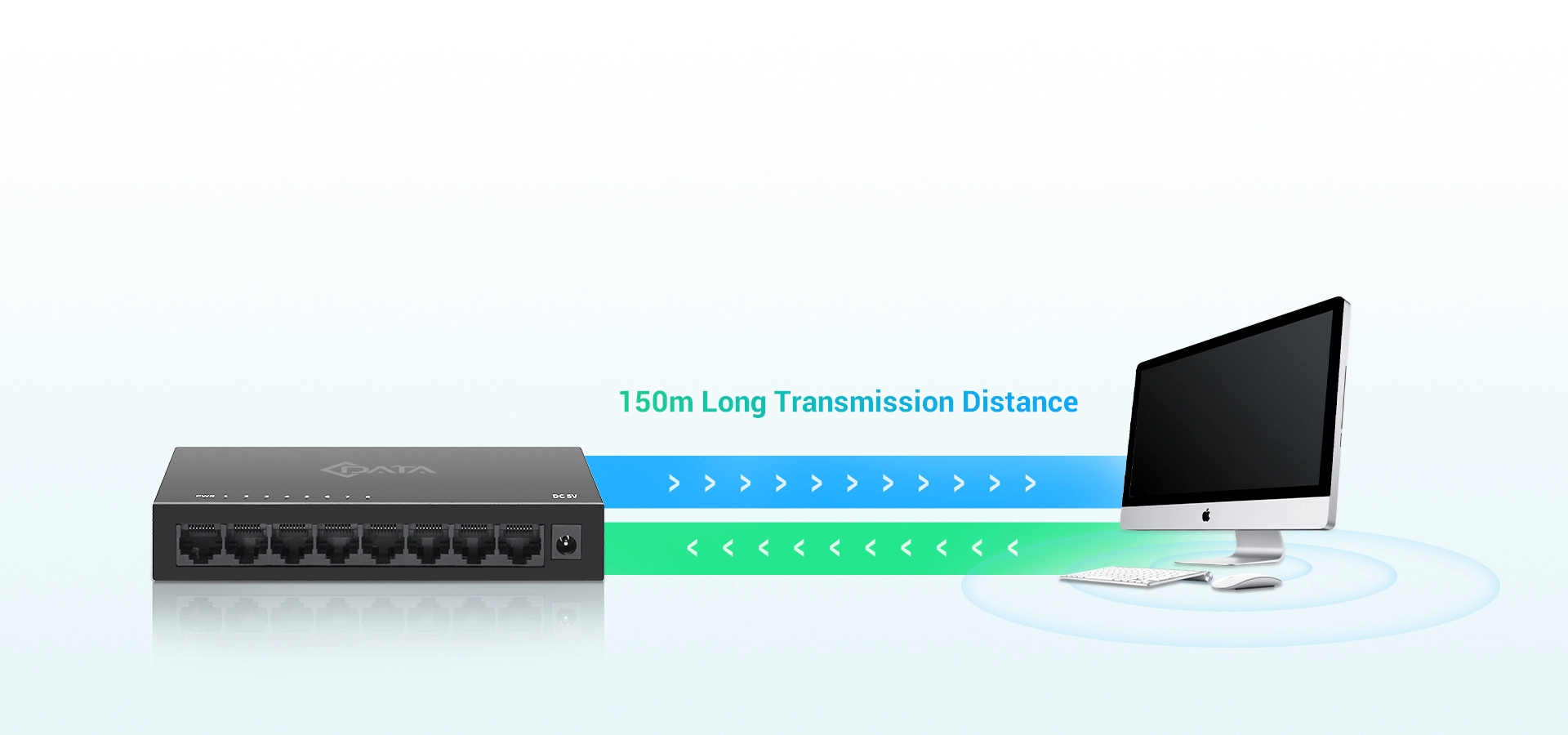

Long-Distance Transmission
Long-Distance Transmission

More Convenient Networking

Support 150m long effective transmission distance, solve wiring problems, and more convenient to build a network.

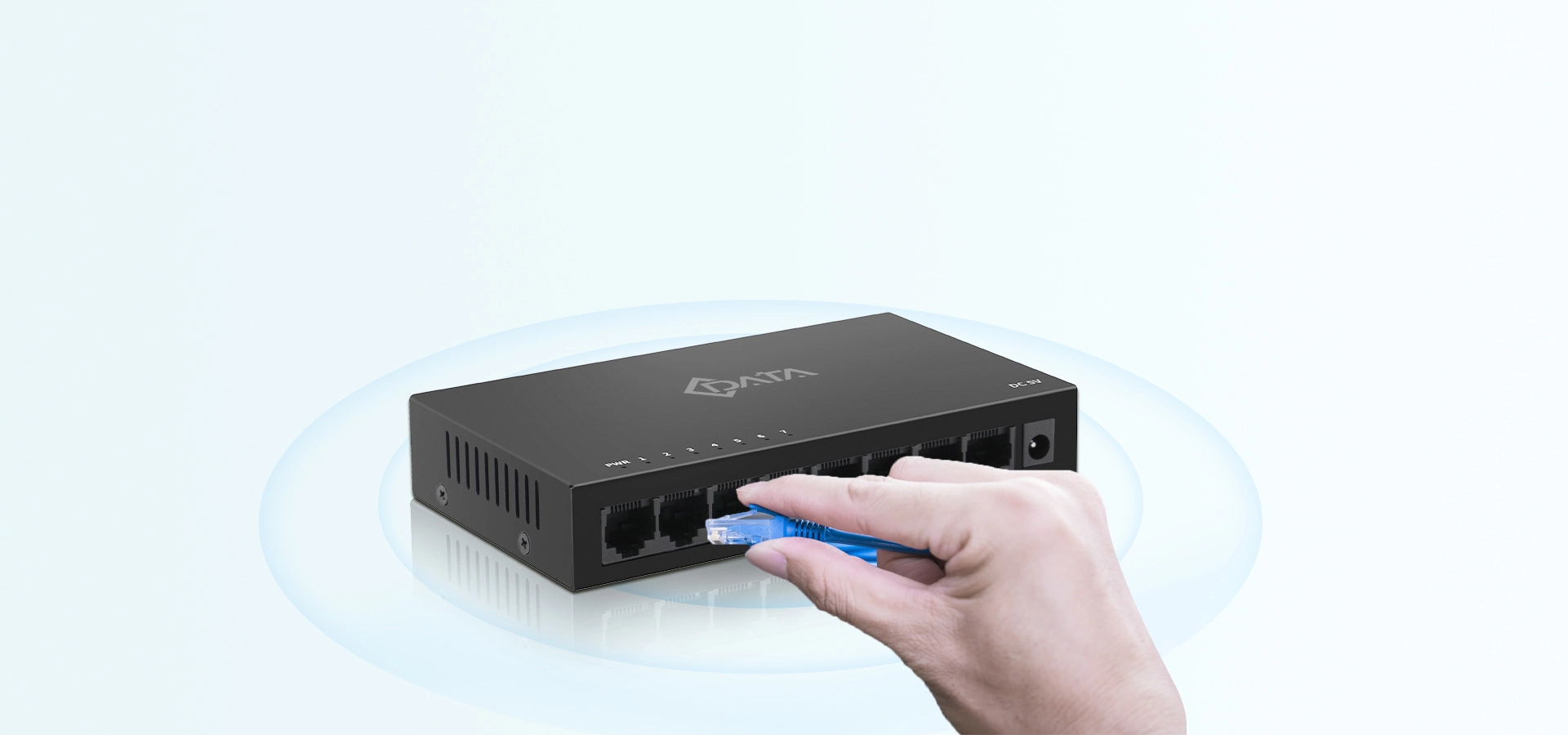

Plug and Play, Fast Networking
Plug and Play, Fast Networking

Plug in the network cable, turn on the power, and it works. It supports MDI/MDIX port auto flipping, MAC address automatically learning and updating, full/half duplex auto-negotiation without manual setting, easy to use and worry-free.

Fully Compatible, Widely Use
Fully Compatible, Widely Use

Fully compatible with computers, printers, webcams, network game equipment, network TV and other networking equipment, better build a variety of scene networks, such as enterprise, family, monitoring and other network construction.

SPECIFICATIONS

ModelCS2080G-M
Interface8*10/100/1000/Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
PowerInput: 5VDC /1A
Transfer MethodStore and Forward

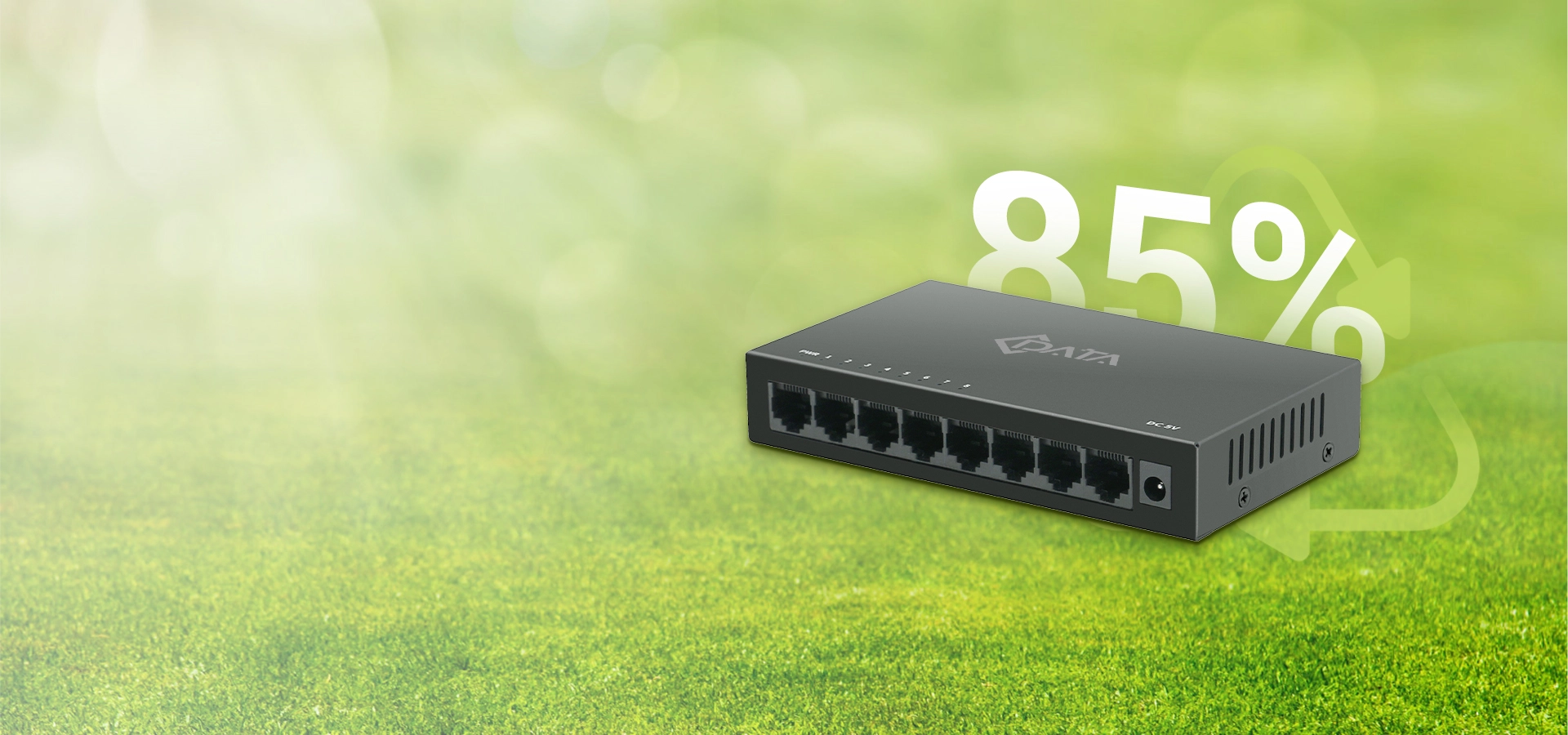

Advanced FunctionsGreen Technology, saving power up to70%; 802.3X Flow Control, Back Pressure Auto-Uplink Every Port
Package Contents8-Port 10/100/1000Mbps Desktop Switch Power Adapter User Guide
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉)



See More
Take Back

RELATED PRODUCTS

Item

Unmanaged Ethernet Switch

CS1042E-POE

Unmanaged Ethernet Switch

CS2042GS-POE

Unmanaged Ethernet Switch

CS2162GS-POE

Unmanaged Ethernet Switch

CS2242GS-POE

Specifications
4*RJ45 PoE + 2*100M RJ454*RJ45 PoE + 2*1000M SFP16*RJ45 PoE + 2*1000M SFP24*RJ45 PoE + 2*1000M SFP
Downlink ports
4*10/100BASE-T PoE+ RJ454*10/100/1000M BASE-T  RJ4516*10/100/1000M BASE-T  RJ4524*10/100/1000BASE-T  RJ45
Uplink ports
2*10/100BASE-T  RJ452*1000M SFP2*1000M SFP2*1000M SFP
Switching capability
1.2Gbps12Gbps36Gbps52Gbps
Packets switching capability
0.8924Mpps8.9Mpps26.78Mpps38.68Mpps
Packet buffer
448K


Switching method
Storage forwardingStorage forwardingStorage forwardingStorage forwarding
LED lightPWR(power supply)Lighting：PoweredLighting：Powered1-18 ACT（Link&Data）ACT（Link&Data）
Un-Light：No PowerUn-Light：No Power1-18 1000M（Link）1000Mbps（1000M Link）
SW(DIP)Lighting：VLANLighting：VLAN

Un-Light：DefaultUn-Light：Default

Flashing：ExtendFlashing：Extend

1-6 Green(Link&Data)Lighting：ConnectingLighting：Connecting

Flashing：Data TransmitFlashing：Data Transmit

Un-Light：DisconnectUn-Light：Disconnect

MAC table size
2K2K8K8K
Jumbo frame
2Kbytes


Input PowerInput VoltageAC 100-240 V100-240V AC, 50/60HzInput: 110-240V AC, 50/60HzInput: 110-240V AC, 50/60Hz
Power supply52V 1.25A


PoE Power
15.4W per port(IEEE802.3af)Max Power:65W (120W optional）Max Power:200W（Optional 300W)Max Power:300W（ Optional 400W)

30W per port(IEEE802.3at)PoE Standard: IEEE802.3af/atPoE Power Supply: 1/2(+),3/6(-)PoE Power Supply: 1/2(+),3/6(-)

Max Power:65WMax. 30W output of single PoE portPoE Standard: IEEE802.3af/atPoE Standard: IEEE802.3af/at



Max. 30W output of single PoE portMax. 30W output of single PoE port
Enviroment parametersWork temperature-20 - to 50℃-10 - to 55℃-10 - to 55℃-10 - to 55℃
Storage temperature-40 - 85℃-40 - 70℃-40 - 70℃-40 - 70℃
Work humidity10% to 90%10% to 90%10% to 95%10% to 95%
Storage humidity5% to 90%10% to 90%10% to 95%10% to 95%
Dimention（W*D*Hmm）
200*118*44mm200*118*44mm440*204*44mm445*285*45mm
Weight
N.W:0.6Kg  G.W:0.9KgN.W:0.6Kg  G.W:0.9KgN.W:2.6Kg  G.W:3.2KgN.W:3.0Kg  G.W:3.7Kg
Certification compliance
FCC CE ROHSFCC CE ROHSFCC CE ROHSFCC CE ROHS
Installation

DesktopRack/ DesktopRack/ Desktop


ORDERING INFORMATION

NO.Product ModelSpecificationsAccessories
1CS1042E-POE4*RJ45 PoE + 2*100M RJ452*L-shaped bracket with screws
2CS1082E-POE8*RJ45 PoE + 2*100M RJ452*L-shaped bracket with screws
3CS1082EG-POE8*RJ45 PoE + 2*1000M RJ452*L-shaped bracket with screws
4CS1243ES-POE24*RJ45 PoE + 2*RJ45 + 1*1000M SFP2*L-shaped bracket with screws
5CS2042GS-POE4*RJ45 PoE + 2*1000M SFP2*L-shaped bracket with screws
6CS2082G-POE8*RJ45 PoE + 2*1000M RJ452*L-shaped bracket with screws
7CS2082GS-POE8*RJ45 PoE + 2*1000M SFP2*L-shaped bracket with screws
8CS2160G16*RJ452*L-shaped bracket with screws
9CS2162GS-POE16*RJ45 PoE + 2*1000M SFP2*L-shaped bracket with screws
10CS2240G24*RJ452*L-shaped bracket with screws
11CS2242GS-POE24*RJ45 PoE + 2*1000M SFP2*L-shaped bracket with screws
12CS2050G-M5*RJ452*L-shaped bracket with screws
13CS2080G-M8*RJ452*L-shaped bracket with screws
