HF3300-PFB1 HF3301-BAF-L670 HF3311-W310
Compact Design for Flexible Deployment

Compact Design for Flexible Deployment

Facilitates rapid deployment and hassle-free replacement.


High Output Power

High Output Power

Contributes to wide coverage and supports multiple optical nodes, facilitating network upgrade and expansion effortlessly.


Unparalleled Performance and Reliability

Unparalleled Performance and Reliability

Maintains stable output with minimal gain fluctuation (±0.5dB) and low noise signature (≤5.5dB @ 0dBm input).

Supports adjustable output ranging from -6dB to 0dB instantly, with no waiting required.

Features a high-quality JDSU/Oclaro pump laser and offers optional single or dual input configurations.

Effortless Management

Effortless Management

Intuitive LCD display and indicators for convenient on-site monitoring.

Remote user-friendly Web and SNMP management for seamless control.

Comprehensive data checks, alarms, reports, and more ensure streamlined operation.

Application Scenarios

  • hfc optical amplifier for catv systems
  • hfc optical amplifier for fttx pon architectures
  • hfc optical amplifier for triple-play application
  • hfc optical amplifier for long-haul transmission

Technical Overview

  • ftth passive optical receiver
  • ftth optical receiver
  • ftth optical receiver
  • ftth passive optical receiver
  • ftth optical receiver
  • ftth optical receiver

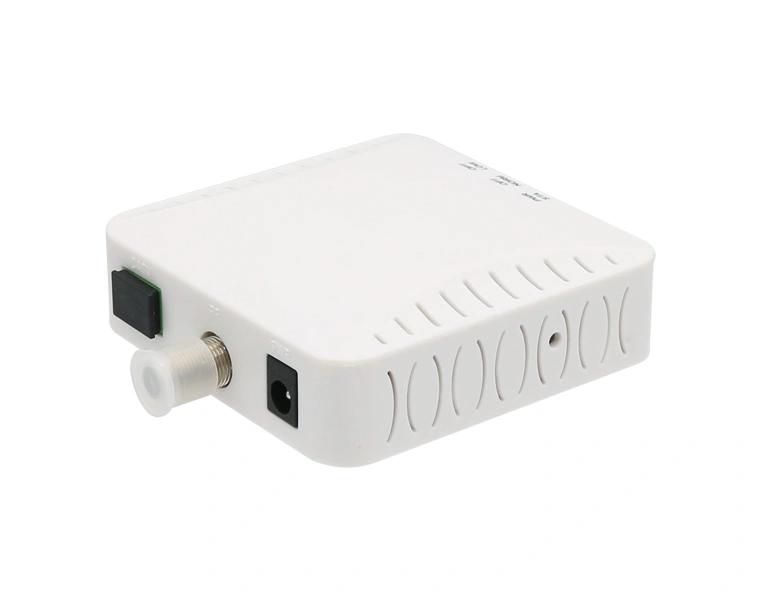

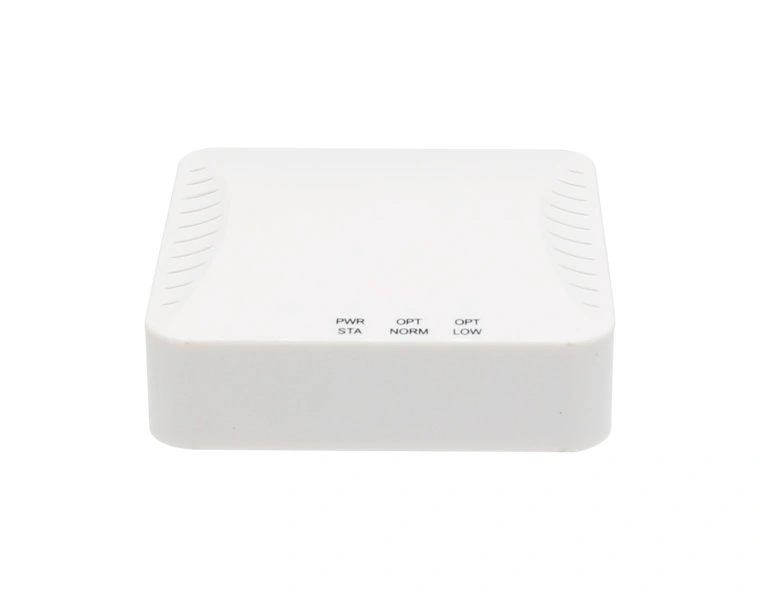

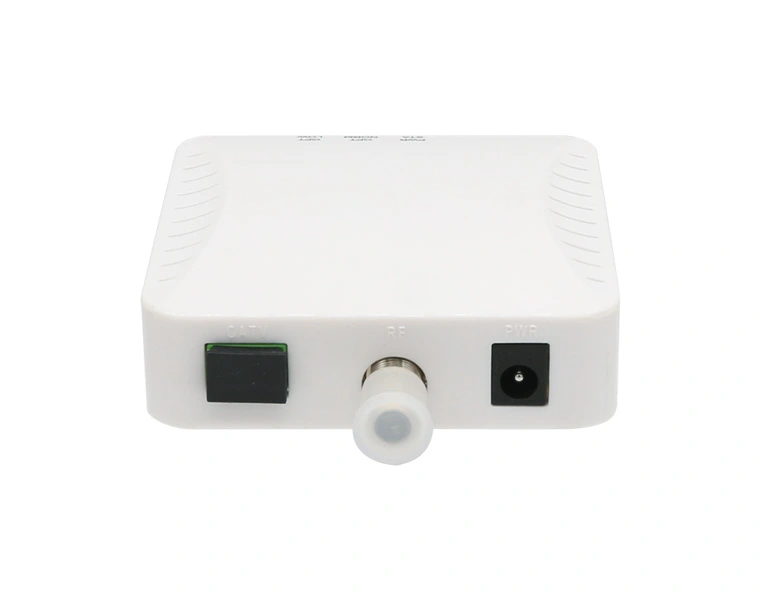

The HF100-3301AF is a FTTH optical receiver. The main board holds the photodiode, MMIC amplifiers and AGC circuits. The external optical input port and RF output port are easy accessible for operations.

Datasheet Get Docs

Technical Specifications


ParametersUnitValueNotes
Environment FeatureStorage Temperature Range℃-40 ~ +85
Operating Temperature Range℃-10 ~ +50
Storage Relative Humidity
5%~95%No Condensation
Optical FeatureCATV Operation Wavelengthnm1540~1563Filter for CATV 1550nm
Reflective Wavelengthnm1310, 1490Internet
Channel IsolationdB≥ 321550&1490nm
Optical Return LossdB≥ 55
ResponsibilityA/W≥ 0.8For 1550nm
≥ 0.9
Receiving Optical PowerdBm-18~+3
Recommended Receiving Optical PowerdBm-15~+2
Optical AGC RangedBm-2～-12
Optical Connector Type
SC/APC
RF FeatureImpedanceΩ75
Work BandwidthMHz47~1000
Return LossdB≥14Within work bandwidth range 47~1000MHz
FlatnessdB≤ ±1.5
AGC Control StabilitydB≤ ±1.0Within optical AGC range: -2~-12dBm.
CNRdB≥50At optical power -2dBm for 59CH PAL_D analog TV
signals, OMI=3.2%.
C/CSOdBc≤-60At optical power -2dBm for 59CH PAL_D analog TV
signals, OMI=3.2%.
C/CTBdBc≤-65At optical power -2dBm for 59CH PAL_D analog TV
signals, OMI=3.2%.
MERdB≥37Optical power range from -8dBm to +2dBm,
OMI=3.2%, 93CH 64 QAM digital signals, MER≥40dB.
BERdB≤1.0E-9Optical power range from -15dBm to +2dBm,
OMI=3.2%, 93CH 64 QAM digital signals, MER≥40dB.
RF Connector
F-FemaleF-male optional
RF Output Port Number
1
LED indicatorsPower Supply Indicator
GreenGreen for working, no show is power down.
Input Optical Power Indicators
GreenInput optical power is higher than -16dBm or lower
than +2dBm.

RedInput optical power is lower than -16dBm or higher
than +2dBm.
HousingDimension L x W x Hmm78 x 78 x 26
WeightKg< 0.5
Power SupplyInput Voltage RangeVAC100~240Frequency 50~60 Hz
Output DC Voltage RangeV11.4~12.6
Output DC CurrentA0.5MAX
Power ConsumptionW< 3


Technical Specifications

Environment Feature
Parameters

  • Storage Temperature Range

  • Operating Temperature Range

  • Storage Relative Humidity

Unit

  • ℃

  • ℃

  • /

Value

  • -40 ~ +85

  • -10 ~ +50

  • 5%~95%

Notes

  • /

  • /

  • No Condensation

Optical Feature
Parameters

  • CATV Operation Wavelength

  • Reflective Wavelength

  • Channel Isolation

  • Optical Return Loss

  • Responsibility

  • Receiving Optical Power

  • Recommended Receiving Optical Power

  • Optical AGC Range

  • Optical Connector Type

Unit

  • nm

  • nm

  • dB

  • dB

  • A/W

  • dBm

  • dBm

  • dBm

  • /

Value

  • 1540~1563

  • 1310, 1490

  • ≥ 32

  • ≥ 55

  • ≥ 0.8/≥ 0.9

  • -18~+3

  • -15~+2

  • -2～-12

  • SC/APC

Notes

  • Filter for CATV 1550nm

  • Internet

  • 1550&1490nm

  • /

  • For 1550nm

  • /

  • /

  • /

  • /

RF Feature
Parameters

  • Impedance

  • Work Bandwidth

  • Return Loss

  • Flatness

  • AGC Control Stability

  • CNR

  • C/CSO

  • C/CTB

  • MER

  • BER

  • RF Connector

  • RF Output Port Number

Unit

  • Ω

  • MHz

  • dB

  • dB

  • dB

  • dB

  • dBc

  • dBc

  • dB

  • dB

  • /

  • /

Value

  • 75

  • 47~1000

  • ≥14

  • ≤ ±1.5

  • ≤ ±1.0

  • ≥50

  • ≤-60

  • ≤-65

  • ≥37

  • ≤1.0E-9

  • F-Female

  • 1

Notes

  • /

  • /

  • Within work bandwidth range 47~1000MHz

  • /

  • Within optical AGC range: -2~-12dBm.

  • At optical power -2dBm for 59CH PAL_D analog TV
    signals, OMI=3.2%.

  • At optical power -2dBm for 59CH PAL_D analog TV
    signals, OMI=3.2%.

  • At optical power -2dBm for 59CH PAL_D analog TV
    signals, OMI=3.2%.

  • Optical power range from -8dBm to +2dBm,
    OMI=3.2%, 93CH 64 QAM digital signals, MER≥40dB.

  • Optical power range from -15dBm to +2dBm,
    OMI=3.2%, 93CH 64 QAM digital signals, MER≥40dB.

  • F-male optional

  • /

LED indicators
Parameters

  • Power Supply Indicator

  • Input Optical Power Indicators

Unit
/
Value

  • Green

  • Green

  • Red

Notes

  • Green for working, no show is power down.

  • Input optical power is higher than -16dBm or lower
    than +2dBm.

  • Input optical power is lower than -16dBm or higher
    than +2dBm.

Housing
Parameters

  • Dimension L x W x H

  • Weight

Unit

  • mm

  • Kg

Value

  • 78 x 78 x 26

  • < 0.5

Notes
/
Power Supply
Parameters

  • Input Voltage Range

  • Output DC Voltage Range

  • Output DC Current

  • Power Consumption

Unit

  • VAC

  • V

  • A

  • W

Value

  • 100~240

  • 11.4~12.6

  • 0.5

  • < 3

Notes

  • Frequency 50~60 Hz

  • /

  • MAX

  • /


Ordering Information

NO.Product ModelSpecificationsAccessories
11U 1550nm EDFA HF300-3815C1*Optical output + 1*Optical input + 1*RS232
21U 1550nm EYDFA HF3915C-B1Optional 8/16*Optical output + Optional 1/2*Optical input + Optional 1310/1490/1550nm WDM + 1*RS232
32U 1550nm EYDFA HF3915C-B2Optional 8/16/32*Optical output + Optional 1/2*Optical input + Optional 1310/1490/1550nm WDM + 1*RS232


Ordering Information

NO.

  • 1

  • 2

  • 3

Product Model

  • 1U 1550nm EDFA HF300-3815C

  • 1U 1550nm EYDFA HF3915C-B1

  • 2U 1550nm EYDFA HF3915C-B2

Specifications

  • 1*Optical output + 1*Optical input + 1*RS232

  • Optional 8/16*Optical output + Optional 1/2*Optical input + Optional 1310/1490/1550nm WDM + 1*RS232

  • Optional 8/16/32*Optical output + Optional 1/2*Optical input + Optional 1310/1490/1550nm WDM + 1*RS232

Accessories

  • /
