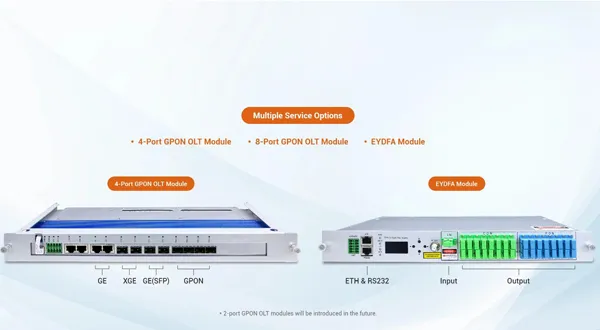

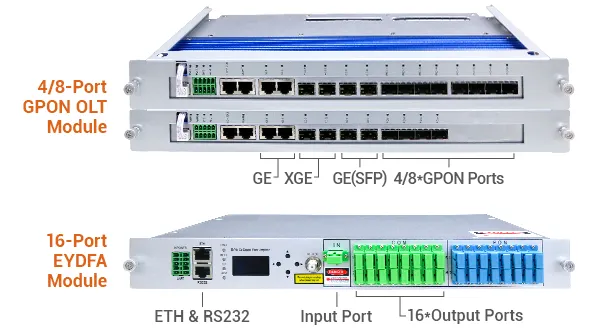

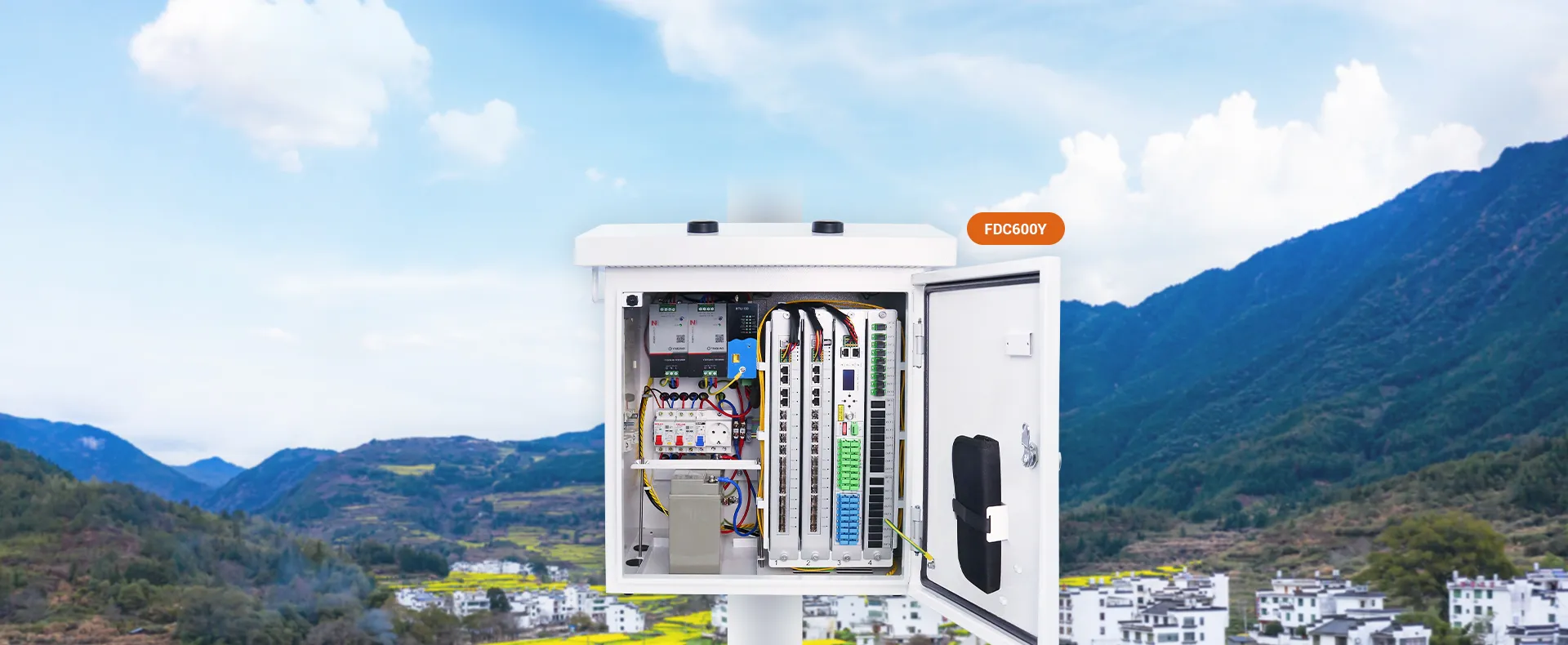

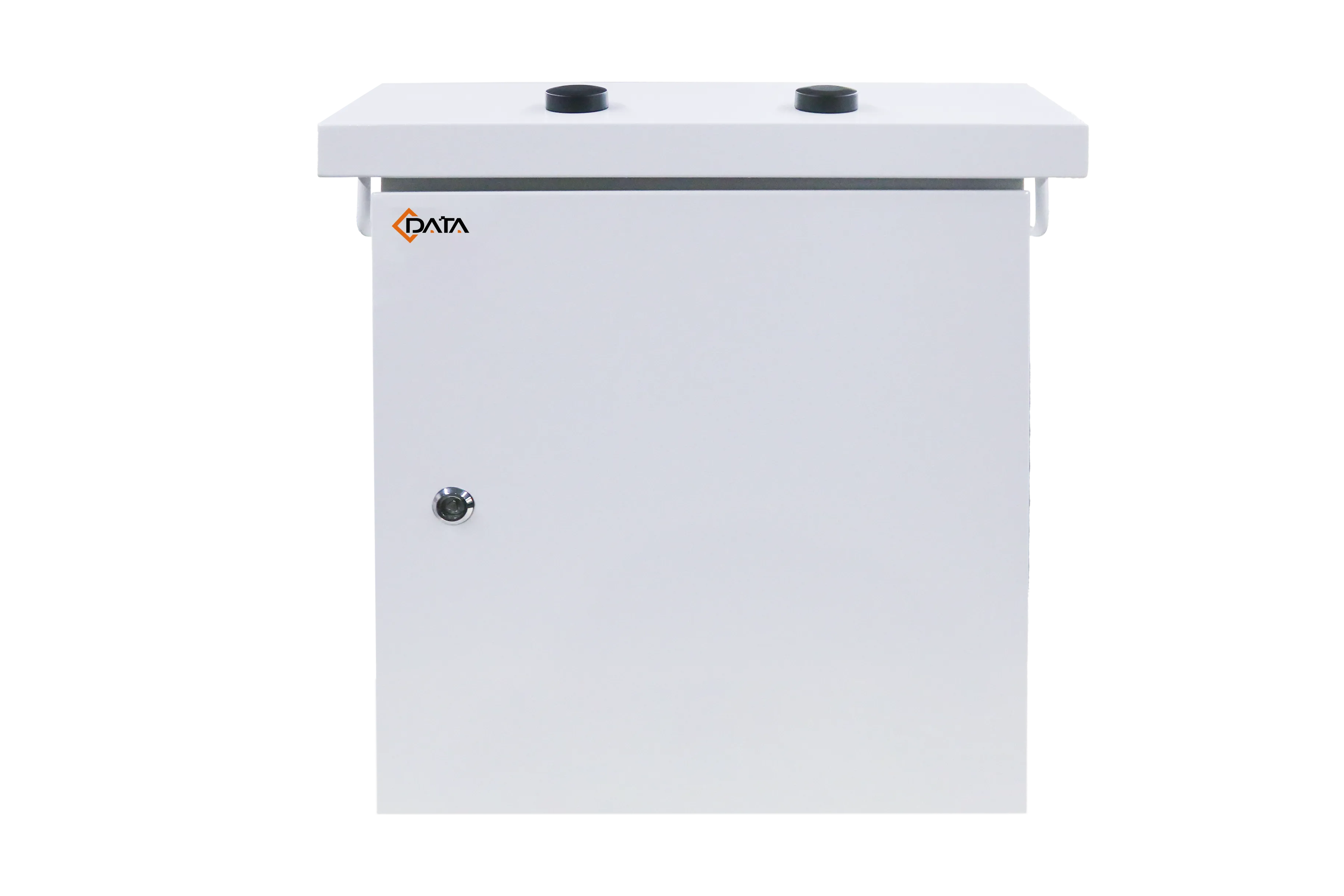

FDC600Y provides more space that integrates OLT modules and EYDFA module. Flexible customized configuration is also offered to meet your network requirement.

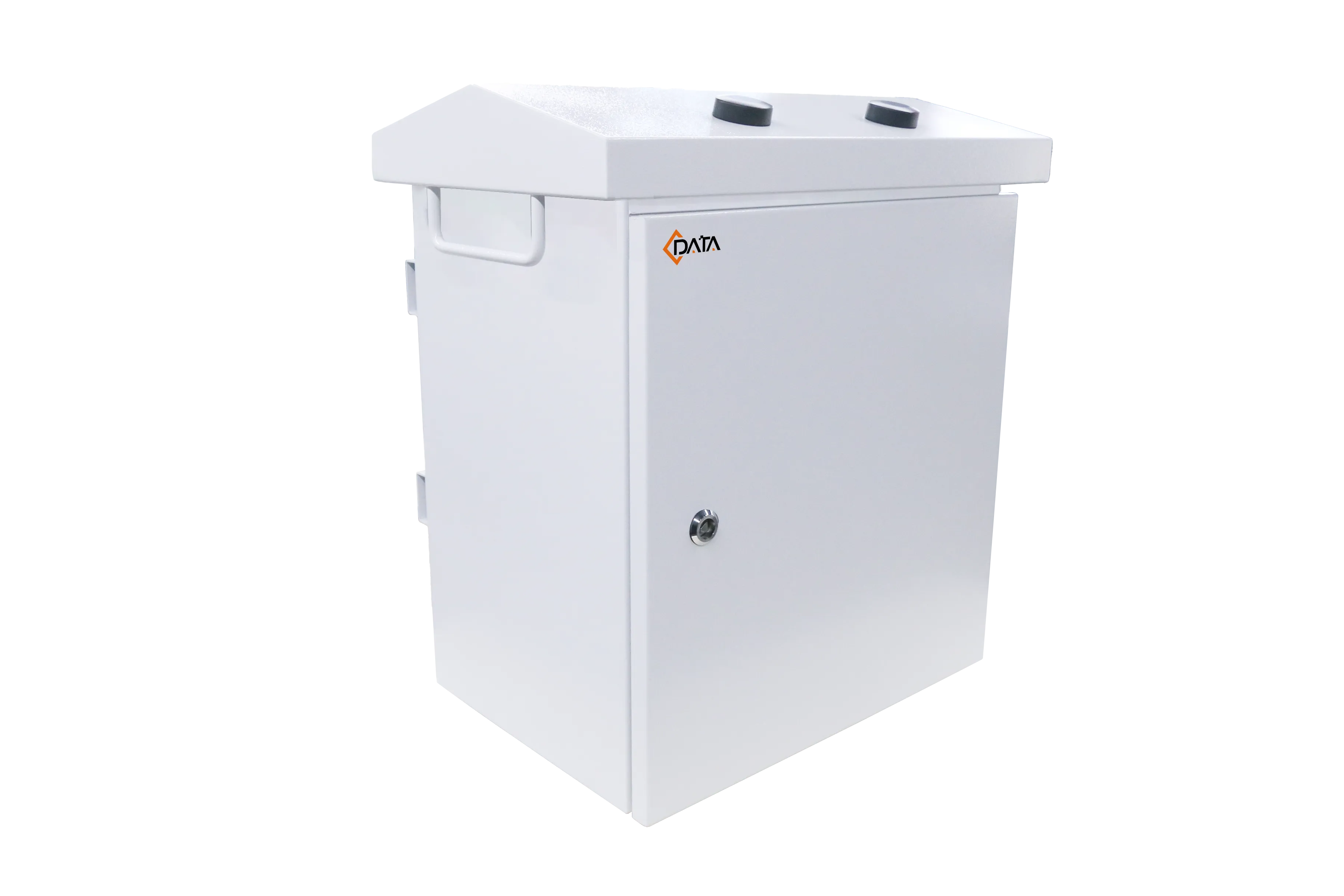

Crafted with industrial-grade material, FDC600Y meets outdoor performance requirements, and is capable of withstanding extreme weather, ensuring stable and enduring operation.

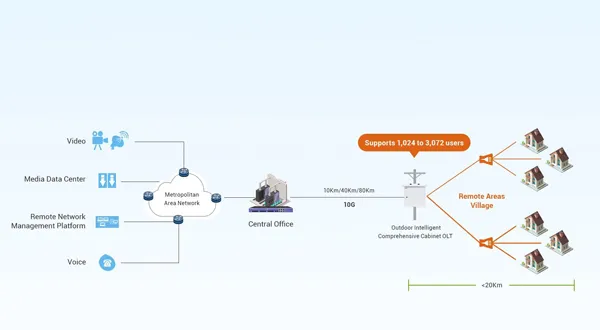

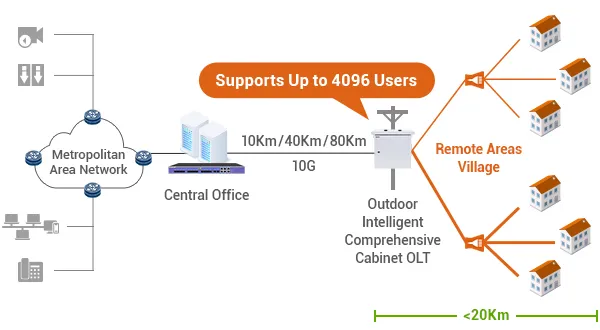

FDC600Y is deep in node, reduce the necessary fiber cores back to the CO. It provides cost-effective FTTH with long-distance data transmission achieved by 10G uplink and GPON OLT modules. The cabinet is deployed outdoors to reduce computer room and auxiliary costs. The existing mobile site/hub/fiber is reusable, saving space and power consumption.

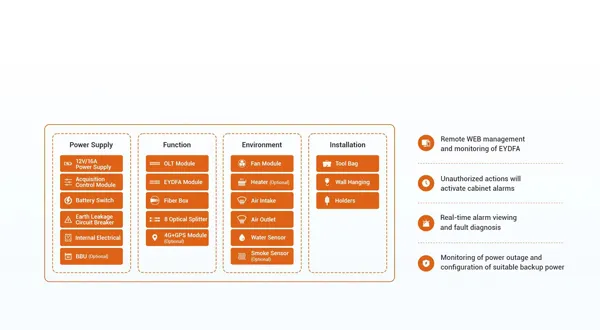

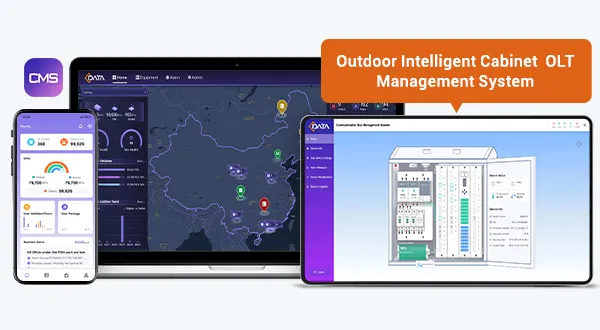

C-Data's CMS, OLT WEB, and EYDFA WEB provide users, enterprises, and operators with a secure, efficient, and intelligent network operation and maintenance platform. CMS achieves efficient, stable, and swift management, significantly enhancing overall efficiency.

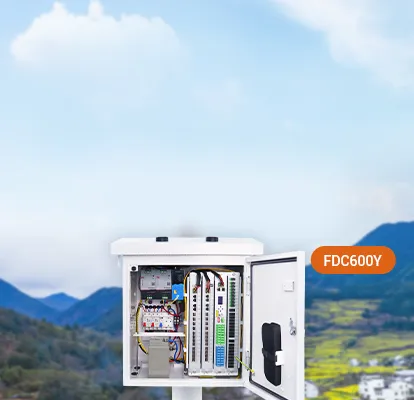

FDC600Y supports pole/wall-mounting options for swift deployment. It offers built-in tool box for module replacement and maintenance, and supports max 3*8-port ODF, ensuring enhanced protection and precise fiber management.

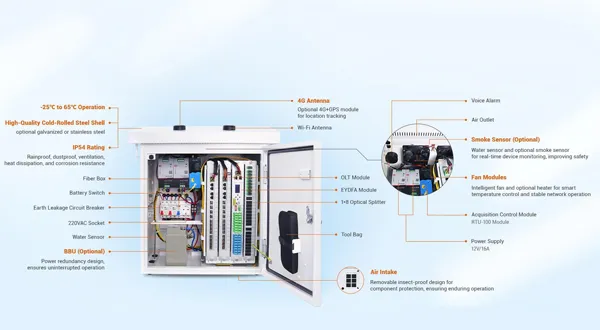

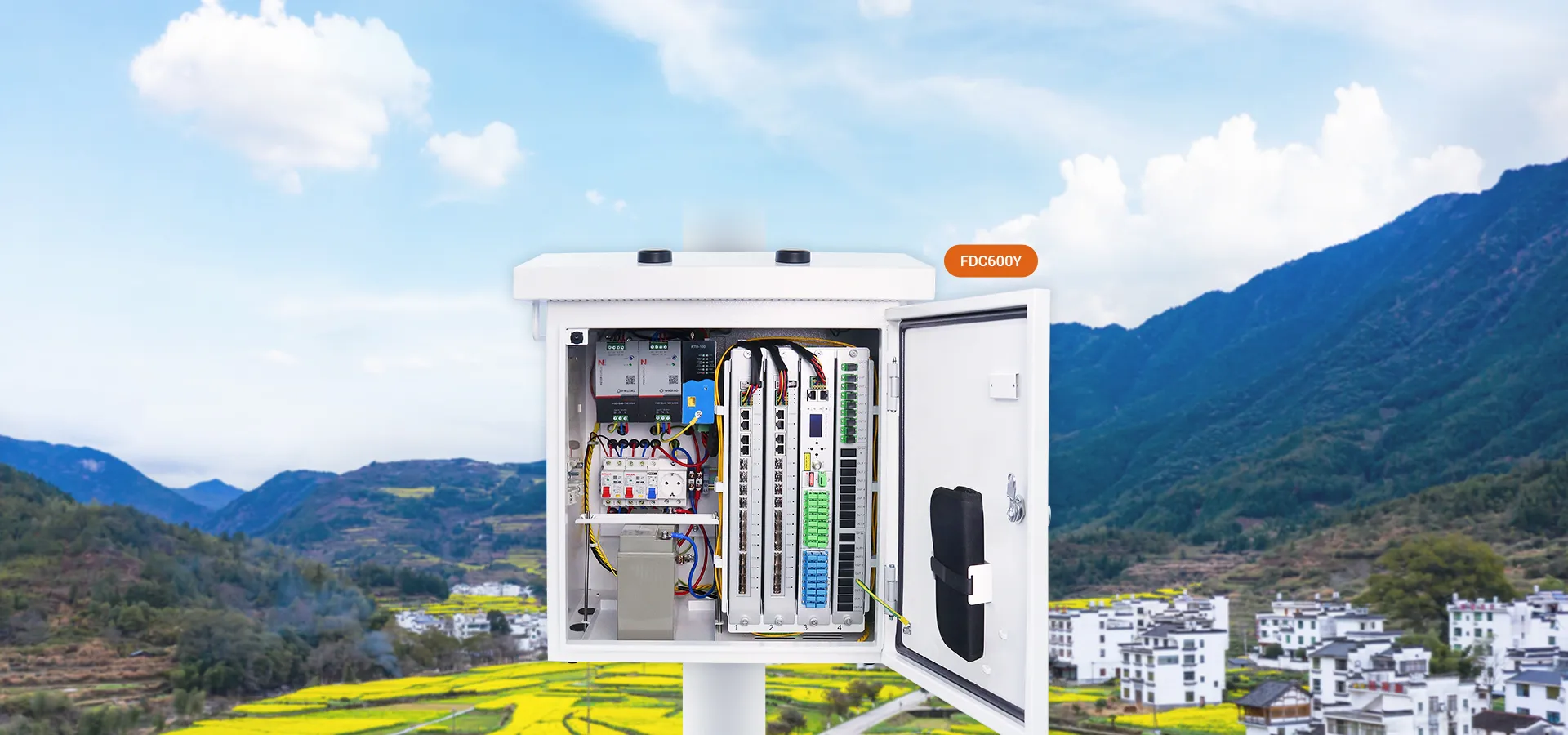

The intelligent field communication box is designed for use in open-air outdoor environments, offering all-weather outdoor electrical protection.
By installing various business modules, it enables the convergence and transmission of multiple services. The shell is made from high-quality cold-rolled steel plate (with options for galvanized or stainless steel), providing rainproof, dustproof, ventilated, heat-dissipating, and corrosion resistance properties. The pole-mount structure design is convenient for quick installation.

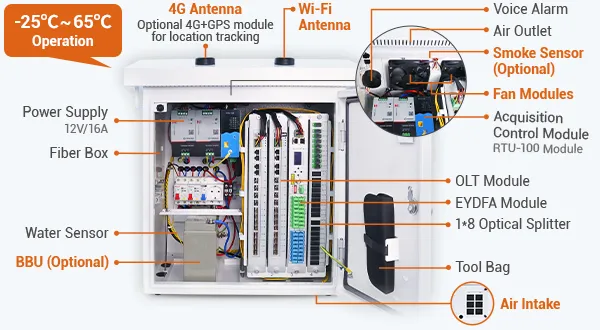

The built-in environmental parameter acquisition control module adjusts the internal fan to dissipate heat based on the temperature inside the box. The control module also triggers an audible alarm when the box door is illegally opened. A water sensor can detects the water level inside the box and issuing an alarm, while a smoke sensor can detect the smoke level inside the box and triggers an alarm if needed.
An optional 4G+GPS module allows for location tracking, with alarms sent via the web if the box is illegally moved. The power redundancy backup design ensures the long-term reliability of the equipment. With an optional battery power supply, the system will automatically switch to battery power if mains power fails.
The intelligent field communication box is equipped with web and CMS management functionality for easy monitoring and control.
Environmental parameter acquisition control module specifications
| Name | Parameter |
| Fan start temperature | 45℃ |
Heater start temperature | -5℃ |
| Lights status and Results | ||||
| Name | Light ON | Light Flashing | Light OFF | Notes |
| SYS | System working normal | / | System is unnormaled | Green light |
| WIFI | WIFI function ope | Data transmitter | WIIF function off | Green light |
| ETH | ETH connect norma | Data transmitter | EHT unconnecte | Green light |
Battery Low | Battery over discharge protection | / | Battery voltage is normal | Green light |
| CHARGING | Battery is charging | / | Battery is not charging | Green light |
CHARGED | Battery is fully charged | / | Battery is not fully charged | Green light |
14.4V Charging | 14.4V charge mode is selected | / | 14.4V charge mode is unselected | Green light |
| 12.6V Charging | 12.6V charge mode is selected | / | 12.6V charge mode is unselected | Green light |
| FAN1 | Fan1 is working | / | Fan1 is unworking | Green light |
| FAN2 | Fan2 is working | / | Fan2 is unworking | Green light |
| POWER | RTU-100 module power on | / | RTU-100 module power off | Green light |
| ALARM | With alarms | / | Without alarms | Red light |
Operating Specifications of Intelligent Field Communication Box
| Name | MIN | Typ. | MAX | Unit |
| Store temperature | -40 | 85 | ℃ | |
Storage humidity | 5 | 95 | % | |
Operate temperature (with heater） | -25 | 65 | ℃ | |
Operate temperature (no heater) | 0 | 65 | ℃ | |
Work humidity (non-condensing) | 10 | 92 | % | |
| Power consumption (no heater) | N/A | 120 | W | |
| AC input voltage | 100 | 220V | 240 | V |
Main configuration of intelligent field communication box
| Name | Quantity | Remark |
| OLT module | Max 2 (with EYDFA module) | Individually packaged |
Max 3 (without EYDFA module) | ||
Max 4 (without EYDFA module and Optical Splitter module) | ||
| EYDFA module | Max1 | Individually packaged |
Optical Splitter Module | Max3 | One 1*8 port module is configured by default |
Earth Leakage Circuit Breaker | 2 | |
Switching power supply | 2 | |
220VAC Socket | 1 | |
| Control Module | 1 | RTU-100 Module |
Fan | 2 | |
Water Sensor | 1 | |
Smoke Sensor | 1 | Optional |
| Battery (28AH) | 1 | Optional |
| 4G+GPS Module | 1 | Optional |
Heater (45W) | 1 | Optional |
| Mechanics | ||
| Bare metal Dimensions (length*width*height) | 580*350*530mm | OLT module and EYDFA module are not installed |
| Bare metal weight | 20kg | |
Packing Dimensions (length*width*height) | 760*655*535mm | |
| Packed weight | 36kg | |
| NO. | Product Model | Specifications | Accessories |
| 1 | FD1608Y | 8*GPON + 2*GE + 2*GE SFP + 2*10GE SFP+ | Optional 1*EYDFA module Pole-mounted/wall-mounted installation kits |
| 2 | FDC600Y | 2*8-port GPON OLT modules + 2*GE + 2*SFP + 2*SFP+ 1*EYDFA module | Pole-mounted/wall-mounted installation kits |
