FD812XW-R460
1GE+1FE+1POTS+CATV+WIFI XPON ONU

Name: FD812XW-R460
Brand: Shenzhen C-Data Technology Co., Ltd.

FD812XW-R460 is an indoor fiber broadband access terminal. The device provides one GPON / EPON adaptive optical port and supports XPON mode. It can be used in connection with our company FD16 series GPON OLT or FD11 / 12 series EPON OLT. It can also interconnect with the mainstream manufacture (Huawei / ZTE / Fiberhome) GPON or EPON OLT to provide users with Internet, VOIP and CATV services based on GPON and EPON technology. The device performance and functions also meet IEEE802.3ah and ITU-T G984.X technical specifications.

FD812XW-R460 integrates wireless function which meets 802.11 b/g/n technical standards. It has two external high gain omnidirectional antennas and wireless transmission rate up to 300Mbps. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.

 Download  Inquiry

Technical Specifications

Item		FD812XW-R460

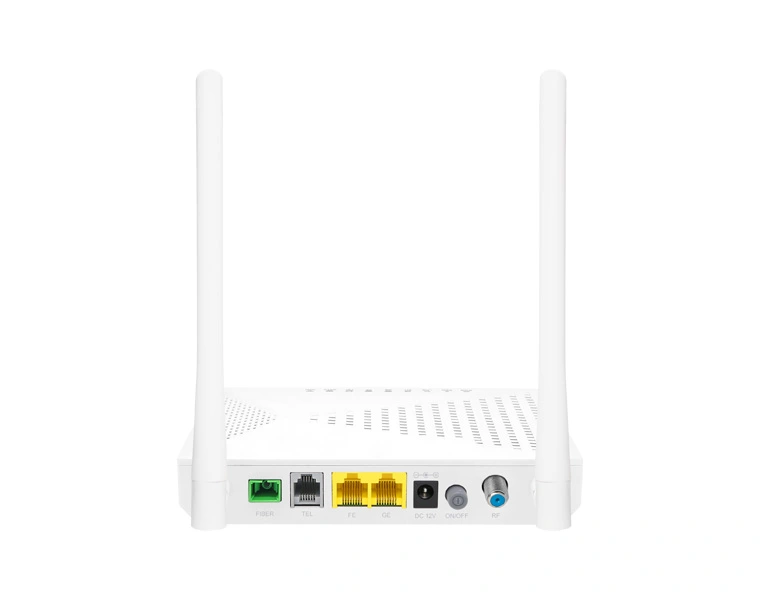

Specifications		1xPON + 1FE RJ45 + 1GE RJ45 + 1POTS + 1*RF CATV + Wi-Fi
GPON/EPON Port		Single mode single fiber
	GPON	FSAN G.984.2 standard,Class B+
	EPON	1000BASE-PX20+ symmetric
	GPON	2.488Gbps/1.244Gbps downstream/upstream
	EPON	1.25Gbps downstream/upstream
	Wavelength	Transmit: 1310nm Receiver: 1490nm
	Receiving sensitivity	GPON：-28dBm EPON：-27dBm
	Saturated power	GPON：-8dBm EPON：-3dBm
	Transmitting power	GPON：0.5～5dBm EPON:0～4dBm
User Port(LAN)		110/100 M and 110/100/1000 MAuto-negotiation
		Full Duplex / Half-Duplex
		RJ45, Auto-MDI/MDI-X
		Transmission Distance 100 Meter
User Port(POTS)		RJ-11 connector
		1*accounts
		SIP protocol
		TDMF
		G711U/G711A/G729/G722 encoding anddecoding
WIFI performance parameters		IEEE802.11b/g/n(2.4G)
		Max rate: 300M(2.4G)
		MAX TX power 2.4G:17dBm
CATV（Input /Output port）	Wavelength	1550nm
	RF frequency	47MHz~1000MHz
	RF impedance	75Ω
	Input optical power	-18dBm～0dBm(with AGC)
	RF output level	78dBuV (@-12dBm@85MHz)(with AGC)
	RF output return loss	>12dB(with AGC)

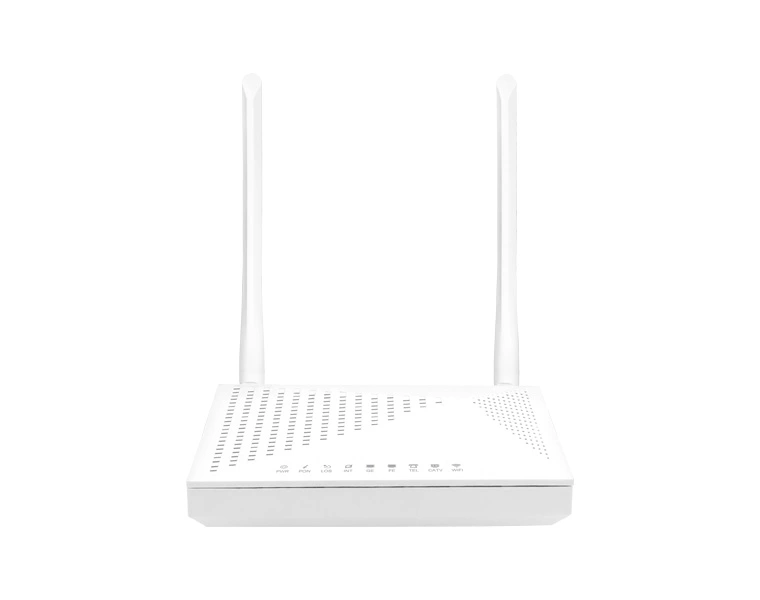

Indicators		PWR / PON / LOS / GE / FE / TEL / CATV/ WIFI /INT / OPT
Power		External 12VDC/1A power supply adapter Power
Power		Power consumption:<7.7W
Dimension and Weight	Item Dimension	214mm139.532mm
Dimension and Weight	Item weight	about 300g
Environmental Specifications	Operating temperature	0 to 40ºC
Environmental Specifications	Operating humidity	10% to 90%(Non-condensing)
