2.4G+5G dual-band WiFi, combined with 2.4G’s wall penetration capability and 5G’s fast speed, creates the ultimate Internet experience.

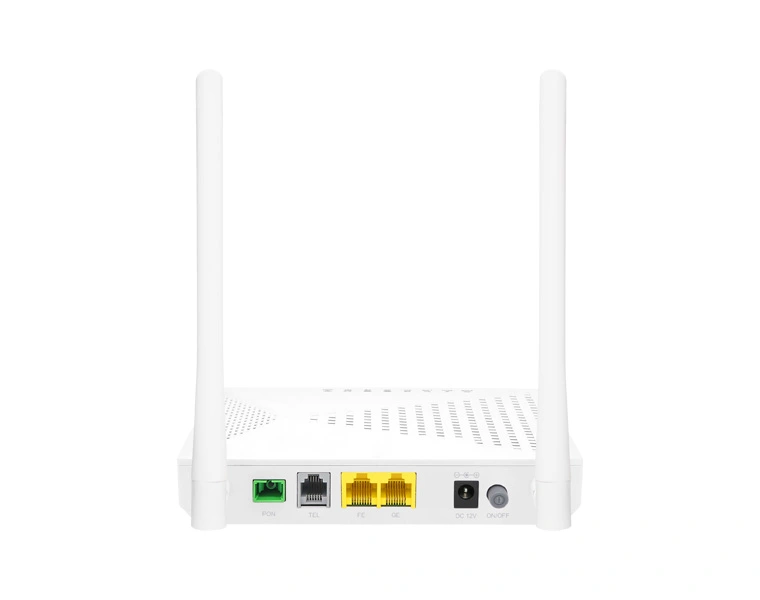

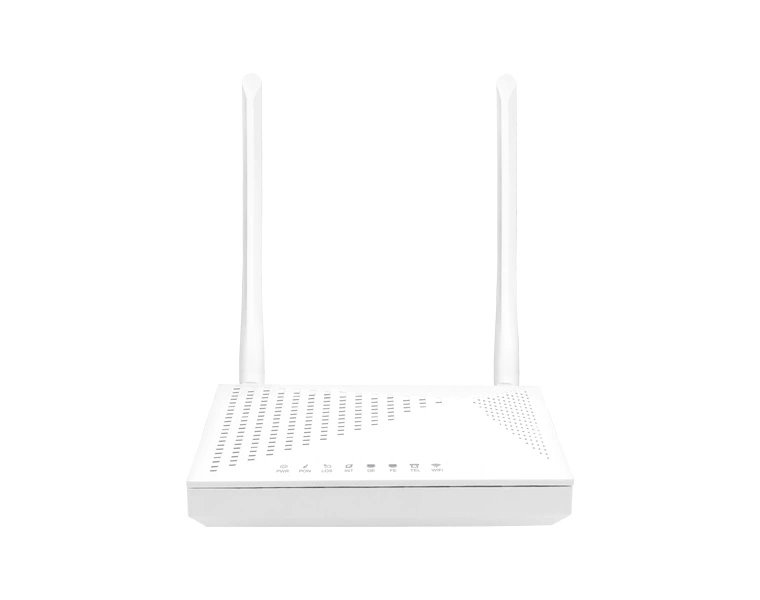

FD612XW-R460 dual-mode ONU supports EPON and GPON two modes access. The ONU automatically switches into the corresponding PON mode by identifying the local OLT mode to complete GPON or EPON adaptive access.
FD612XW-R460 features high-performance forwarding capabilities to ensure excellent experience with VoIP and Internet services. It fully meets the ITU-T technical standards and have good compatibility with third party OLT. It provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
| Item | FD612XW-R460 | |
| Specifications | 1*xPON + 1*FE RJ45 + 1*GE RJ45 + 1*POTS + Wi-Fi | |
| GPON/EPON Port | Single mode single fiber | |
| GPON | FSAN G.984.2 standard,Class B+ | |
| EPON | 1000BASE-PX20+ symmetric | |
| GPON | 2.488Gbps/1.244Gbpsdownstream/upstream | |
| EPON | 1.25Gbps downstream/upstream | |
| Wavelength | Transmit: 1310nm Receiver: 1490nm | |
| Receiving sensitivity | GPON：-28dBm EPON：-27dBm | |
| Saturated power | GPON：-8dBm EPON：-3dBm | |
| Transmitting power | GPON：0.5～5dBm EPON:0～4dBm | |
| User Port(LAN) | RJ-45 connector | |
| 1*10/100 and1 *10/100/1000Mbps adaptive Ethernet port | ||
| Full/half duplex | ||
| Auto MDI/MDI-X | ||
| User Port(POTS) | RJ-11 connector | |
| 1*POTS | ||
| SIP protocol | ||
| TDMF | ||
| G711U/G711A/G729/G722 encoding and decoding | ||
| WIFI performance parameters | IEEE802.11b/g/n(2.4G) | |
| Max rate: 300M(2.4G) | ||
| MAX TX power 2.4G:17dBm | ||
| Indicators | PWR / PON / LOS / GE / FE / TEL / WIFI / INT / OPT | |
| Power | External 12VDC/1A power supply adapter | |
| Power consumption:<9W | ||
| Dimension and Weight | Item Dimension | 214*139.5*32mm |
| Item weight | 300g | |
| Environmental Specifications | Operating temperature | 0 to 40ºC |
| Storage temperature | -40 to 85ºC | |
| Operating humidity | 10% to 90%(Non-condensing) |
| NO. | Product Model | Specifications | Accessories |
| 1 | FD612XW-R460 | 1*xPON + 1*FE RJ45 + 1*GE RJ45 + 1*POTS + Wi-Fi | AC-DC Power Adapter: DC 12V/0.5A |
| 2 | FD612GD-R460 | 1*xPON + 2*GE RJ45 + 1*POTS + Dual-Band Wi-Fi | AC-DC Power Adapter: DC 12V/0.5A |
| 3 | FD604GW-DX | 1*xPON + 4*GE RJ45 + 2*POTS + Wi-Fi | AC-DC Power Adapter: DC 12V/0.5A |
