FD1700S
Combo PON Modular OLT - 32 Ports

The GPON OLT FD1700S fully complies with the relevant standards of ITU G.984.x and FSAN. It's a 1RU device featuring an uplink SFP port with options for either 4*1G/10G and 4*10G/25G. The PON ports come in configurations of 4/8/16 ports. Each GPON port supports a splitting ratio of 1:128. Consequently, the GPON system can accommodate up to 4096 terminal connections, depending on the number of PON ports chosen.

 Download  Inquiry

Specification

Mechanics
Management Rack	1U 19-inch standard box
Dimensions	44037544mm
Weight	About 6kg

Hardware
Uplink Port	41G(SFP)/10G SFP+ 410G(SFP+)/25G(SFP28)

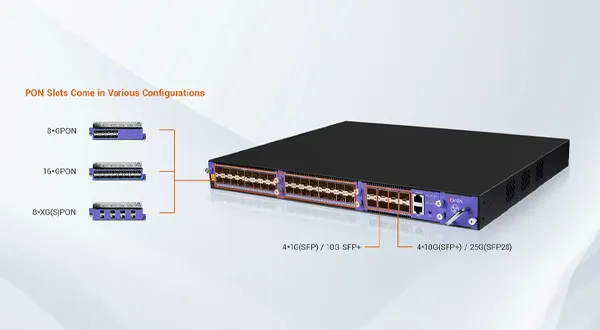

PON Port	Quantity	8GPON/ 16GPON/24GPON/32GPON/ 8*XG(S)PON
	Physical interface	SFP slot
	Interface type	GPON: ITU-TG.984.2 Class B+/Class C+
	Max splitting ratio	GPON: 1:128
Management Port		100/ 1000BASE-Tx out-band Ethernet port CONSOLE local management port
PON Port attribute	Transmission distance	20KM
	Port rate	GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps
	Wavelength	Forwarding: 1490nm Receiving: 1310nm
	Interface type	SC/ UPC
	Fiber type	9/ 125μm SMF (Single Mode Fiber)
	Light transmission power	Class B+:+1.5 ~ +5dBm	Class C+:+3 ~ +7dBm	Class C++++:+7.5dBm~+10.5d Bm	Class C++： +4.5dBm~+10dBm
	Receiving sensitivity	Class B+:-28dBm	Class C+:-30dBm	Class C++++:-30dBm	Class C++:-31dBm
	Saturation power	Class B+:-8dBm	Class C+:-12dBm	Class C++++:-10dBm	Class C++:-10dBm
Backplane Bandwidth		400G
