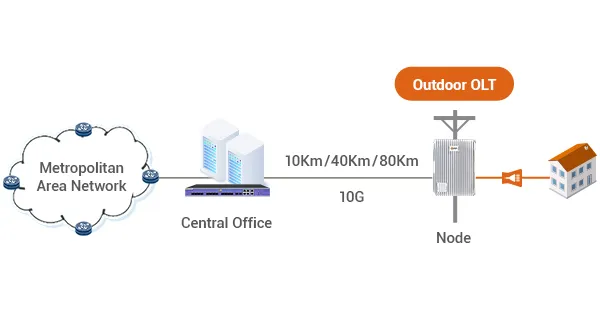

OLT deep in node, reduce the necessary fiber number back to the co.
Deployed outdoors to reduce equipment room and auxiliary costs.
Providing cost-effective FTTH with 10/40/80km optical module via 10G uplink and 8PON.

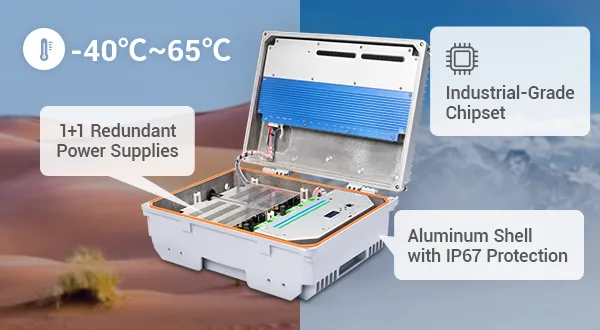

-40℃~65℃ working temperature, suitable for harsh environment
Industrial chip, more stable
Aluminum shell, easy to carry, efficient heat dissipation
Dual power supply, 1+1 redundant backup, ensure stable power supply
IP67, waterproof and dustproof
1550nm output power up to 23dBm with 8 output ports.
Serving 512 users with 8PON OLT equipment by 1:64.

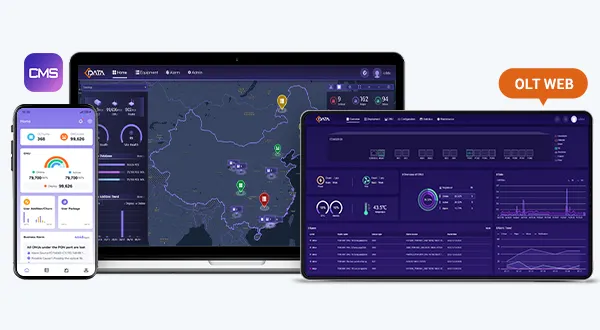

Multiple interfaces, support in-band & out-band management. High-power EYDFA is included in network management, convenient for maintenance. Remote management, solve problems with one click. Automatic alarm mechanism, troubleshooting timely.

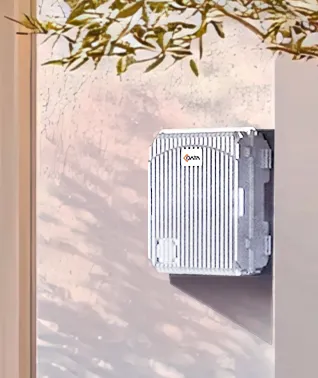

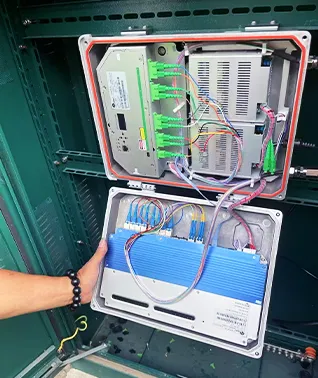

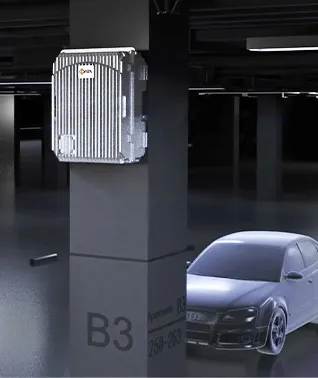

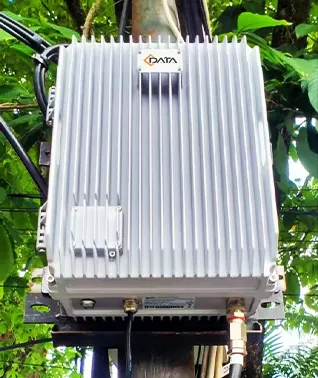

Designed to be installed in OSP locations: strand mount, wall, pole, cabinet or pedestal.

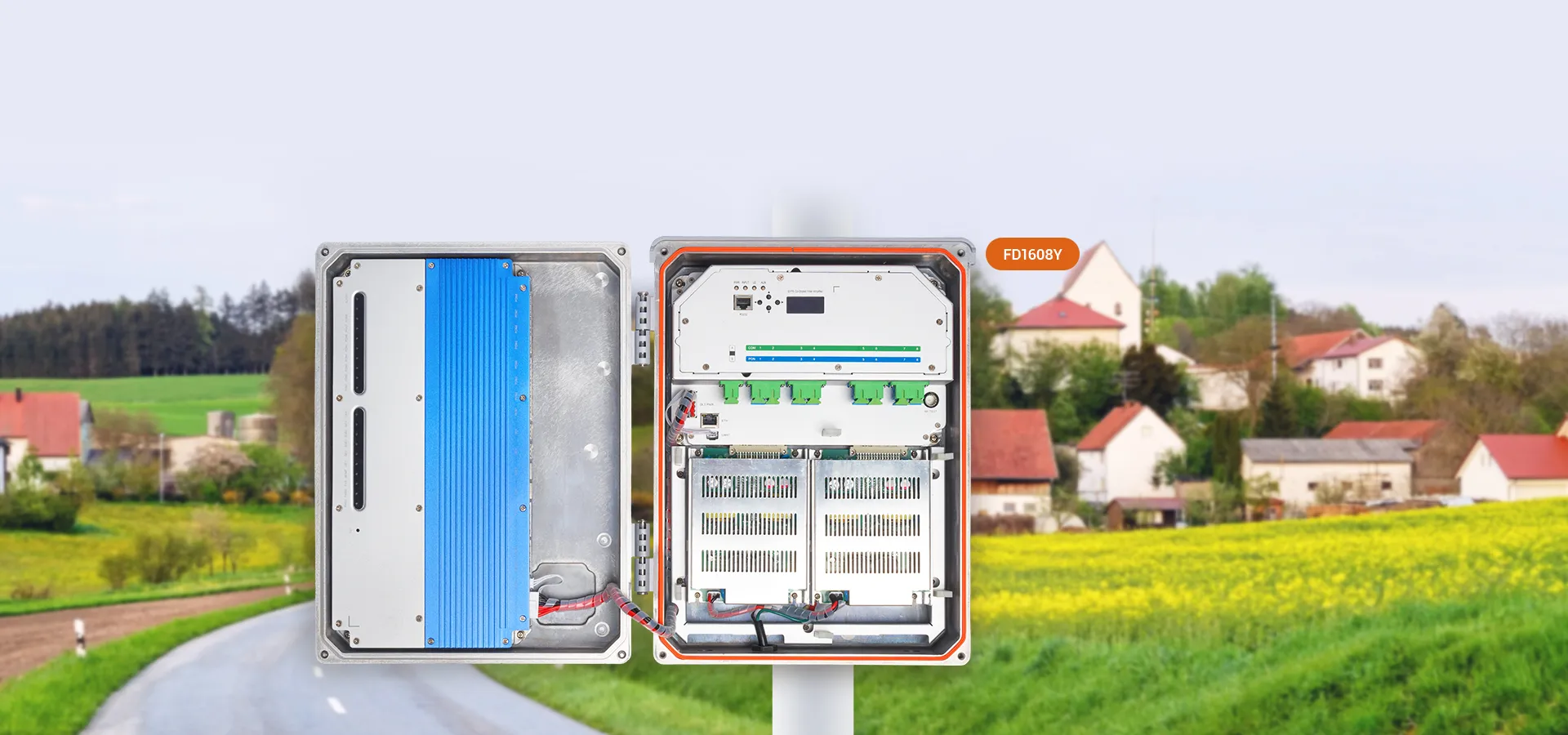

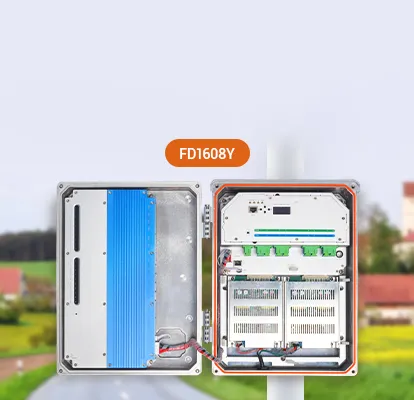

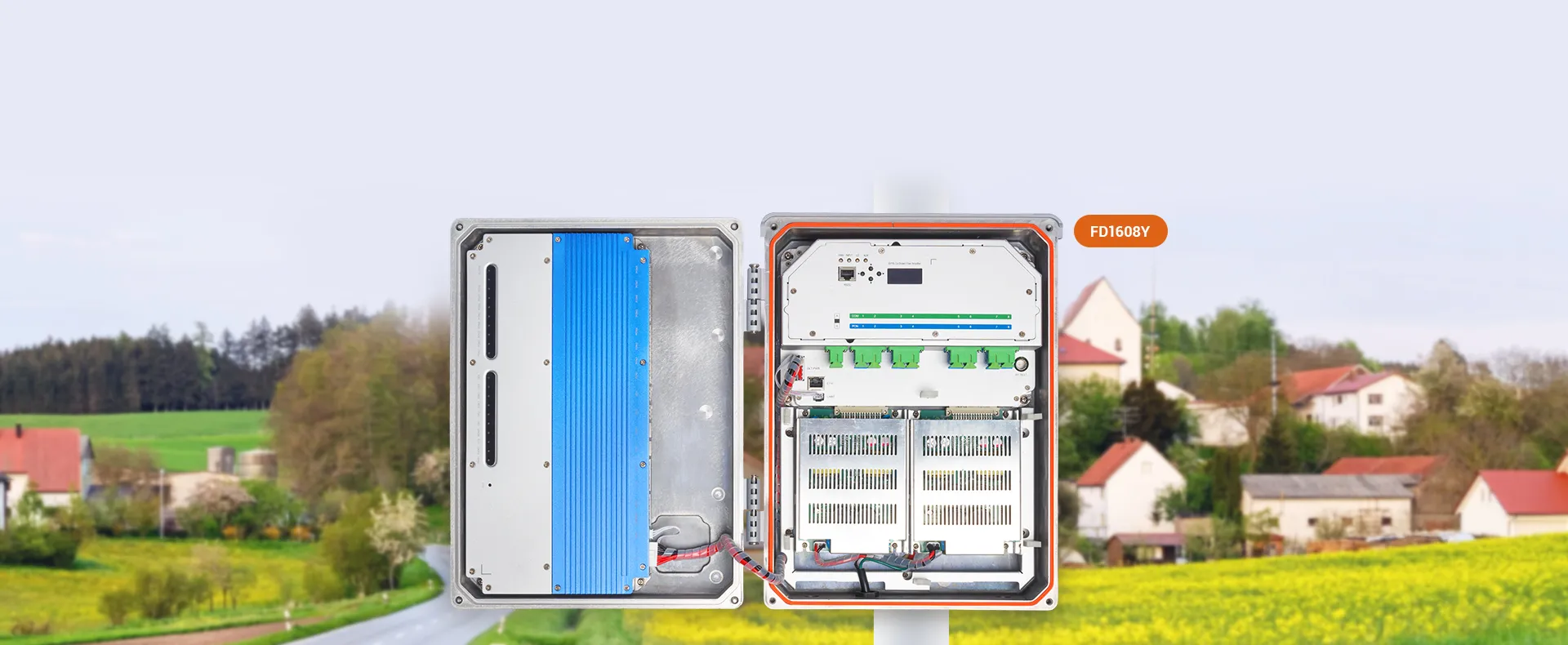

FD1608Y GPON OLT is a field-type central office equipment. The product adopts cast aluminum shell, which has good heat dissipation and shielding effect. The equipment is flexible to use and easy to deploy, meeting the requirements of equipment performance in outdoor environment.

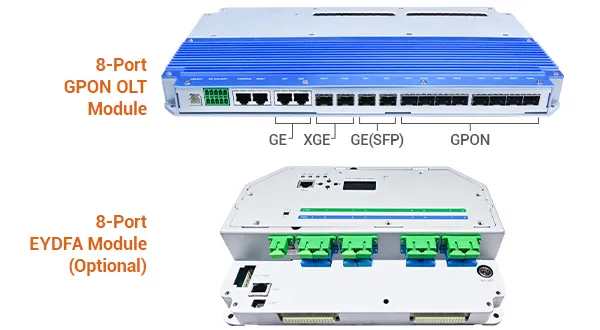

The device provides 2 uplink GE ports, 2 uplink SFP ports, 2*10GE uplink ports and 8 GPON ports, 1 in-band management port, 1 out-band management port, and supports dual power supply configuration.
The maximum split ratio of each GPON optical port is 128, and the system can support up to 1024 ONUs. The product is suitable for FTTH access, video surveillance network, enterprise LAN, Internet of Things and other network applications of operator networks, and has a high cost performance.
| ITEM | FD1608Y | |
| Management Rack | Type | Field type slave equipment,Cast aluminum housing |
| Uplink Port | 2* 10/100/1000M auto-negotiation Ethernet ports 2 SFP interfaces 2 SFP+ interfaces | |
| PON Port | Quantity | 8 |
| Physical interface | SFP slot | |
| Interface type | GPON: ITU-TG.984.2 Class B+/Class C+ | |
| Max splitting ratio | GPON: 1:128 | |
| Management Port | 1 100/1000BASE-Tx out-band Ethernet port 1 CONSOLE local management port | |
| PON Port attribute | Transmission distance | 20KM |
| Port rate | GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps | |
| Wavelength | Forwarding: 1490nm Receiving: 1310nm | |
| Interface type | SC/UPC | |
| Fiber type | 9/125μm SMF (Single Mode Fiber) | |
| Light transmission power | Class B+ +1.5～+5dBm Class C+ +3～+7dBm | |
| Receiving sensitivity | Class B+ : -28dBm Class C+ : -30dBm | |
| Saturation power | Class B+ -8dBm Class C+ -12dBm | |
| Network management method | Support CLI、SNMP、TELNET、SSH、WEB | |
| Business capabilities | Support device log, device upgrade, device management, condition monitoring, configuration management, and user management. Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QOS and so on. PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on. Layer 3 function: support static routing, dhcp-relay and vlanif configuration | |
| Backplane Bandwidth | 78G | |
| Size | 385*306.95*180mm | |
| Weight | 12.6KG | |
| Power supply | 220VAC | AC: 100V～240V，50/60Hz |
| Working environment | Working temperature | -40~65℃ |
| Storage temperature | -40～85℃ | |
| Relative humidity | 5～90% (Non-condensing) | |
| NO. | Product Model | Specifications | Accessories |
| 1 | FD1608Y | 8*GPON + 2*GE + 2*GE SFP + 2*10GE SFP+ | Optional 1*EYDFA module Pole-mounted/wall-mounted installation kits |
| 2 | FDC600Y | 2*8-port GPON OLT modules + 2*GE + 2*SFP + 2*SFP+ 1*EYDFA module | Pole-mounted/wall-mounted installation kits |
