Name: C-Data Expandable OLT Platform FD1700S
Brand: Shenzhen C-Data Technology Co., Ltd.
Price: 100 USD

Functional characteristics Specifications Related Products

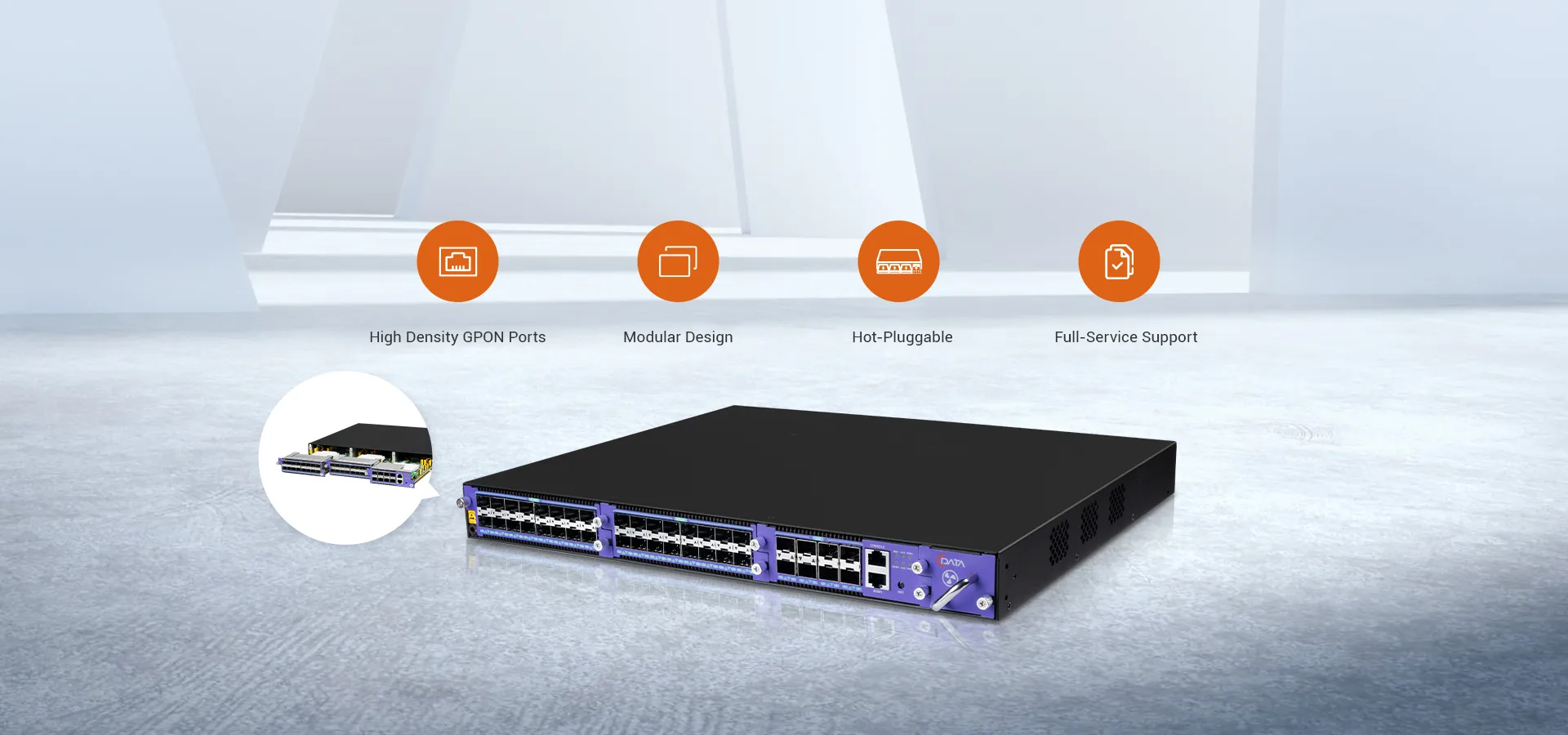

C-Data Expandable OLT Platform FD1700S

Invest only in what you need, seamless upgrades in GPON, XG(S)PON - plug in progress, anytime.

High Density GPON Ports
Modular Design
Hot-Pluggable
Full-Service Support

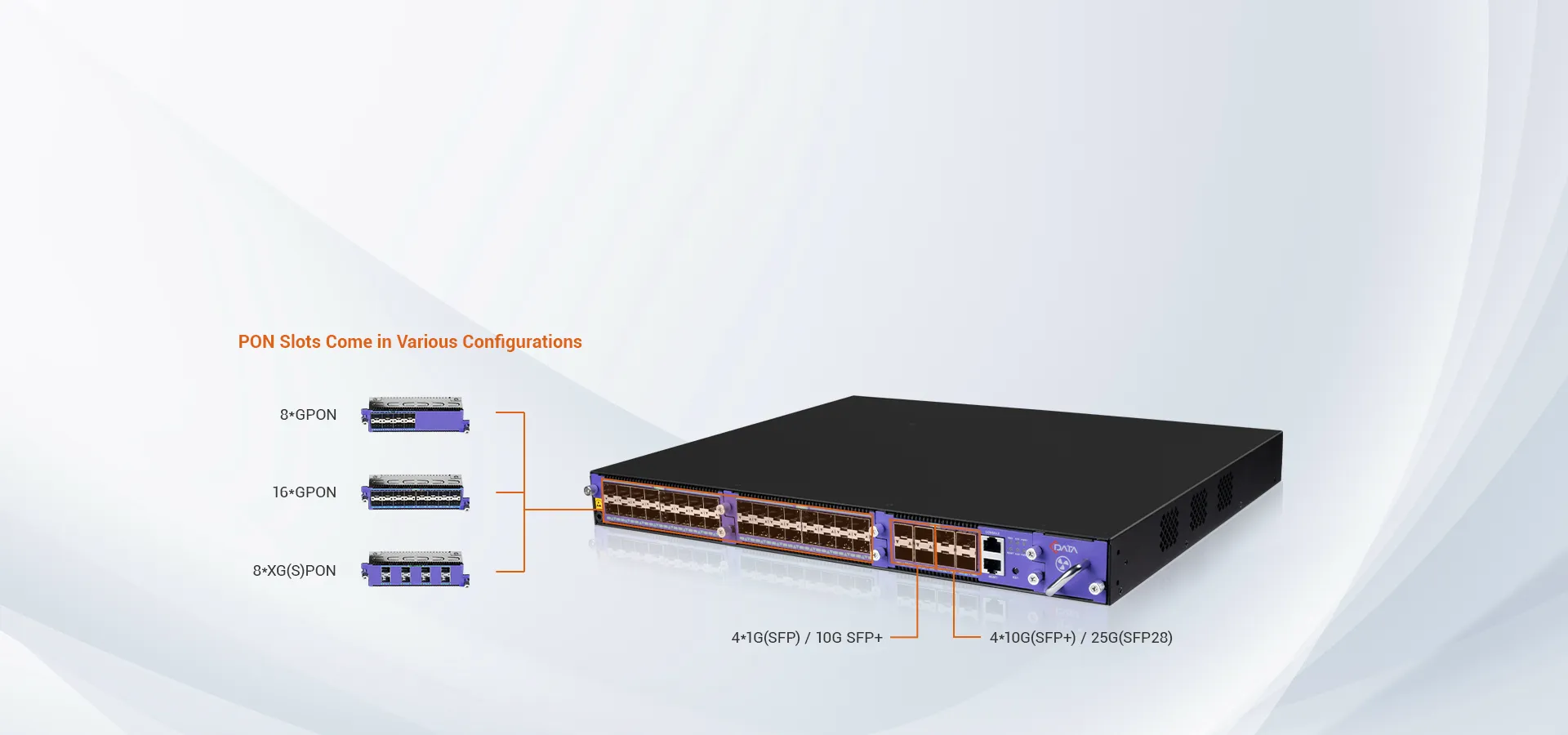

Easily Adapting to Changing Network Requirements, Preventing Unnecessary Expenses on Unused Features.

FD1700S offers unparalleled flexibility and excellent scalability.

Supporting 2 pluggable slots with 4 various choices, it tailors solutions for every need, seamlessly integrating into existing networks, effortlessly bridging the present and the future.

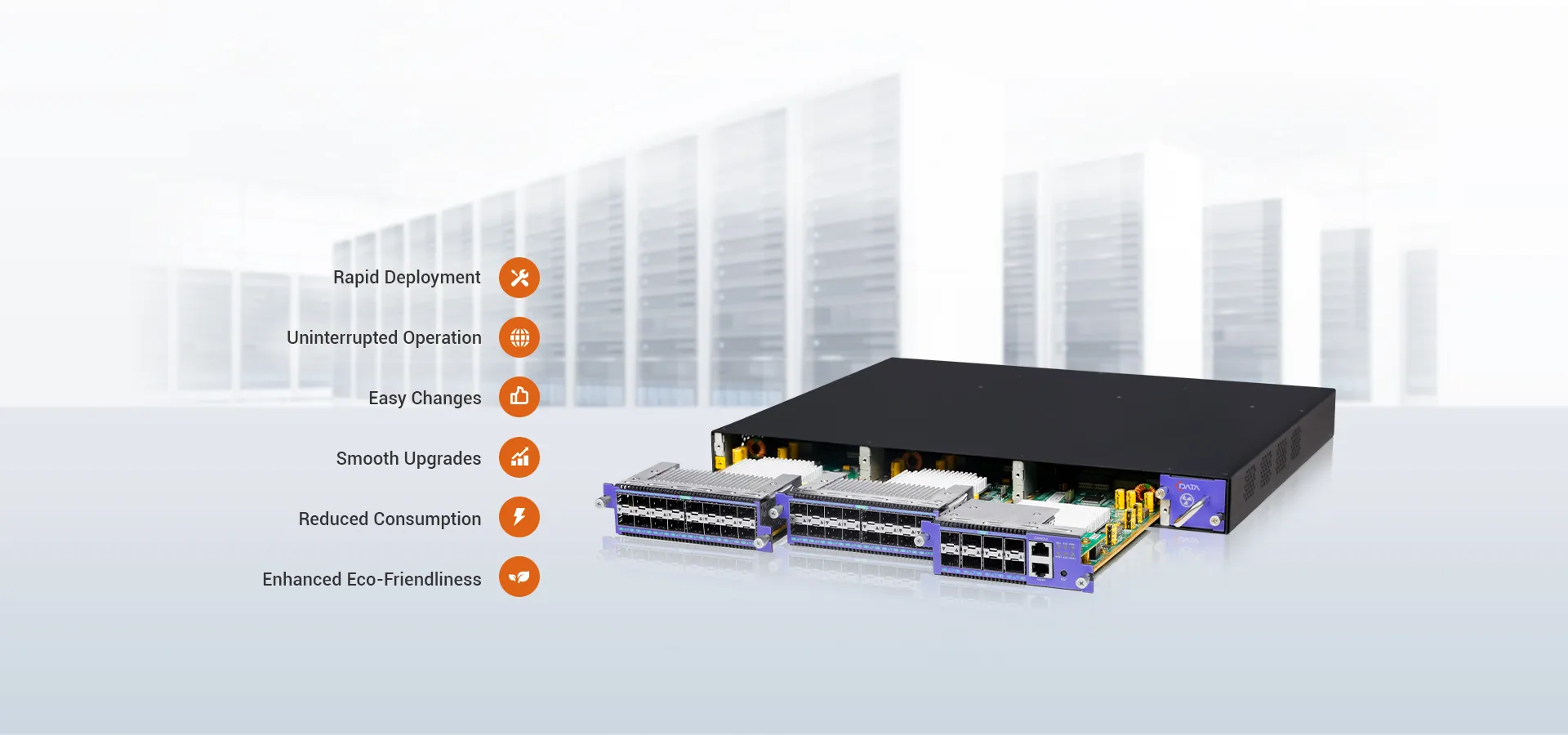

Flexible, Efficient, and Future-Ready OLT Solution

Customized to your needs, FD1700S features a hot-pluggable and modular design, making it effortless to achieve:

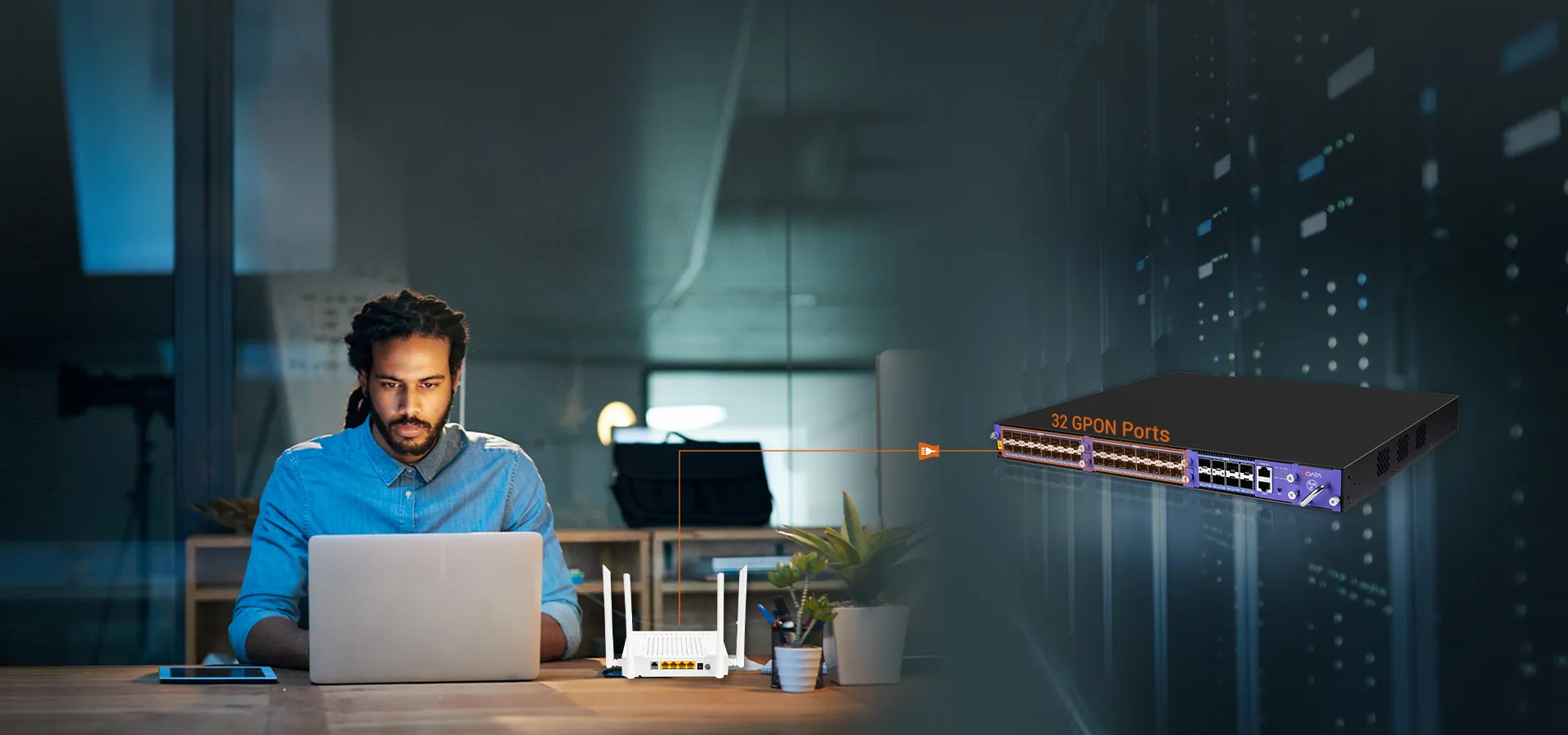

High Density, Compact Size

Standard 1RU but powerful: FD1700S boasts up to 32 GPON ports within a standard 1RU size. This ensures high density without sacrificing performance, offering savings in costs, energy, and space.

Incredible data throughput: Each GPON port supports a stable splitting ratio of 1:128, accommodating a maximum of up to 4096 terminal connections.

Aligned with ITU-T G.984.x and FSAN Standards

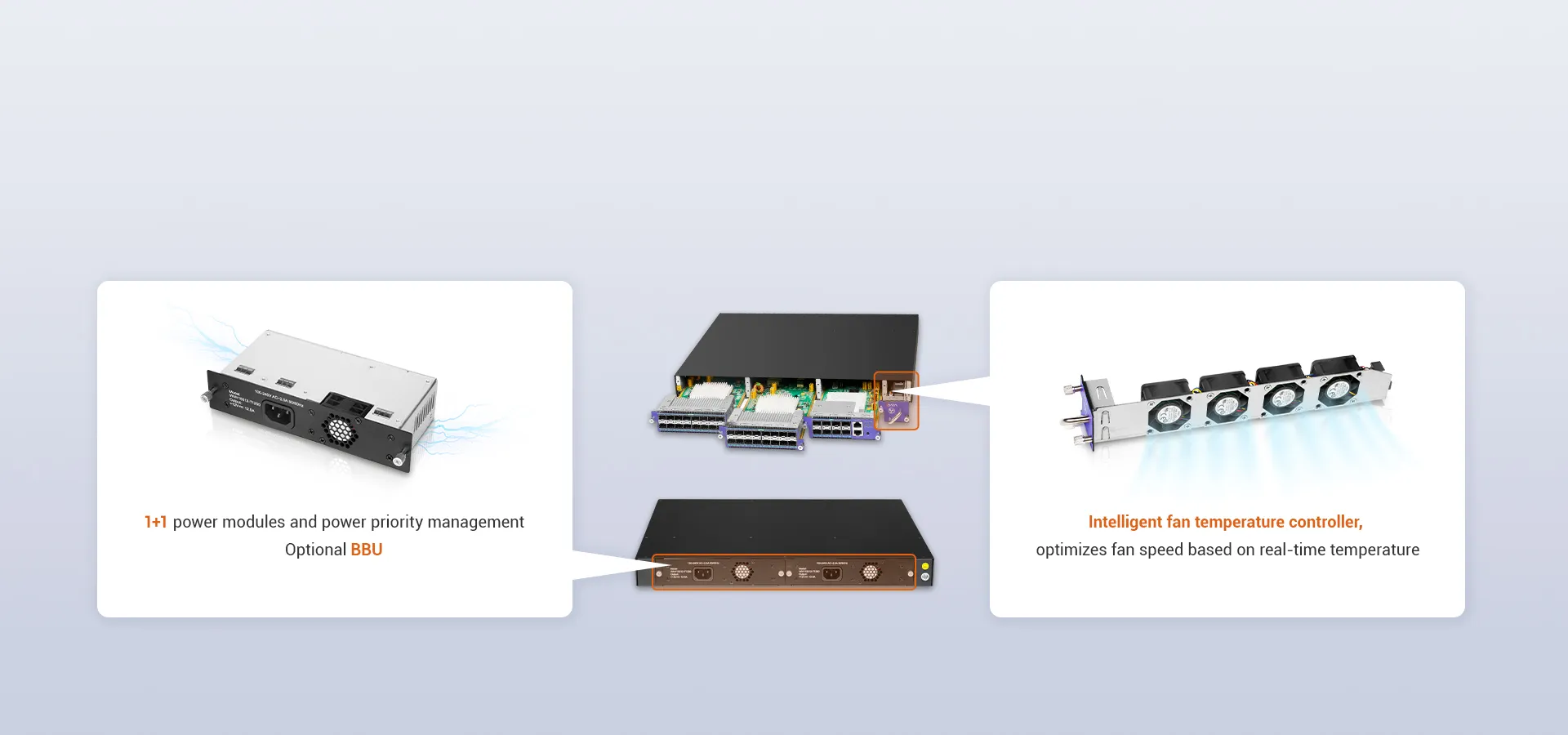

High Reliability, Enduring Performance

Stability is paramount, and FD1700S guarantees enduring and trustworthy performance.

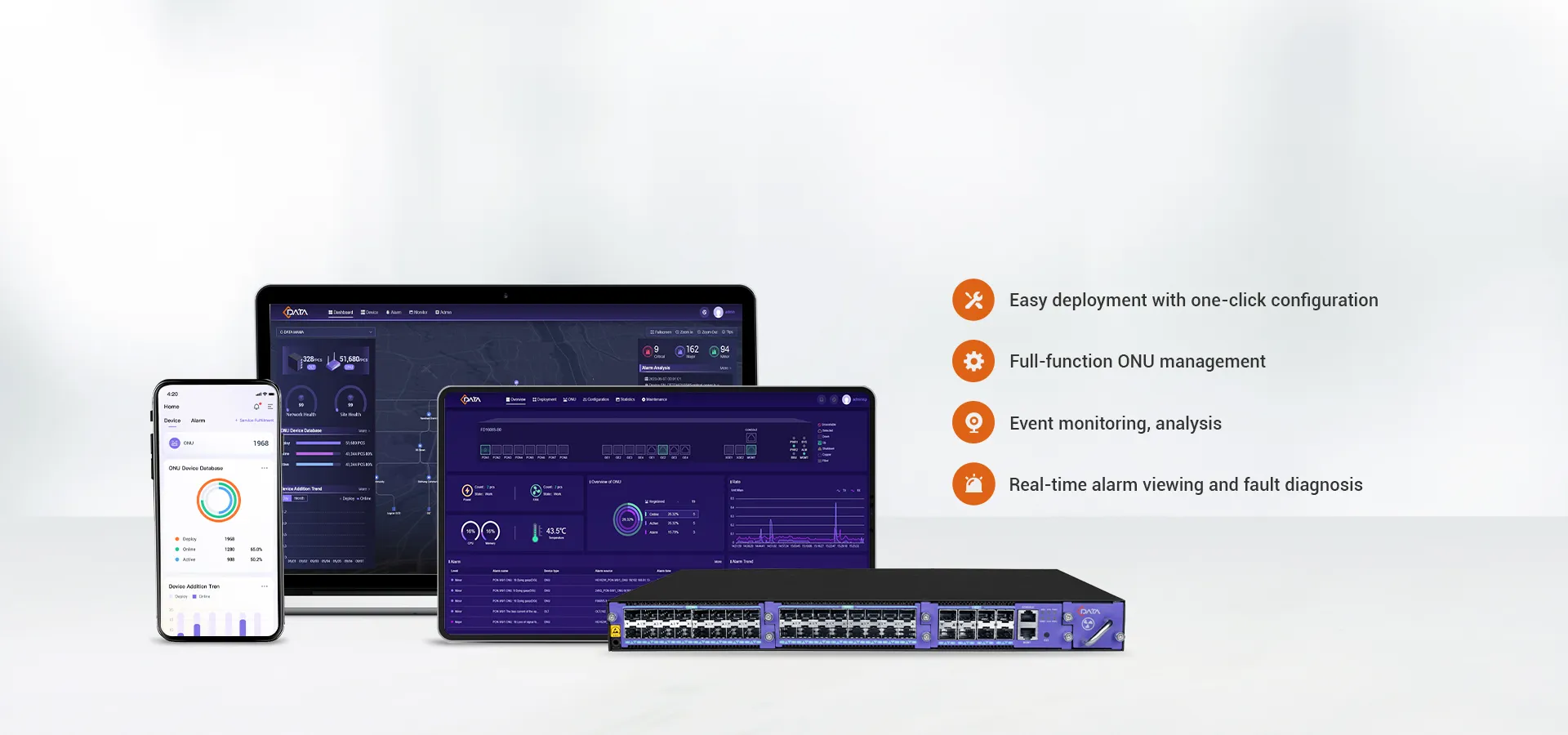

The Integrated Management System

FD1700S offers versatile operation through CLI, WEB, Telnet, and SSH. C-Data's OLT WEB3.0 and CMS provide users, enterprises, and operators with a secure, efficient, and intelligent network operation and maintenance platform. This platform achieves efficient, stable, and swift management and operation, significantly enhancing overall efficiency.

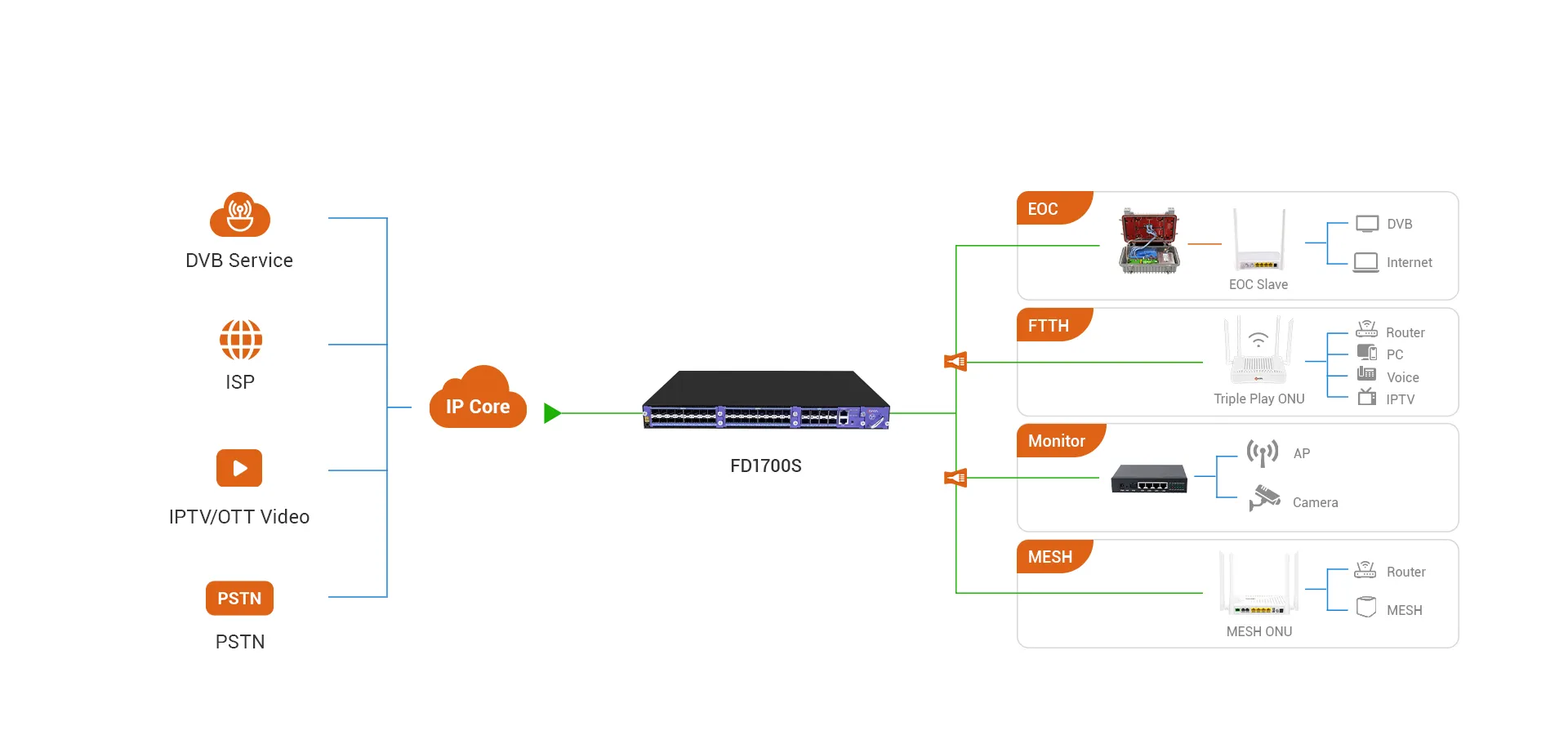

Typical Application

SPECIFICATIONS

See More 

Take Back 

ORDERING INFORMATION

No.

Product Model

Uplink ports options:

2*Optional pluggable slots

Power supply

FD1700S

4*1G(SFP)/10G SFP+
4*10G(SFP+)/25G(SFP28)

4*GPON
8*GPON
16*GPON
4*10GE EPON
8*XG(S)PON

1+1 power modules
Optional BBU

RELATED PRODUCTS

Hardware
Uplink Port	COMBO port	4* 10/100/1000M auto-negotiation Ethernet ports
	10-Gigabit	4* SFP interfaces
		2* SFP+ interfaces
PON Port	Quantity	4 (FD1604S-C1)
		4/8 (FD1604E-C1)
	Physical Interface	SFP slot
	Interface Type	GPON: ITU-TG.984.2 Class B+/Class C+/Class C++
	Max Splitting Ratio	GPON: 1:128
Management Port		1* 100/1000BASE-Tx out-band Ethernet port
		1* CONSOLE local management port
USB Port		1* USB interface (It’s used to backup configuration, upgrade program and record log information)
PON Port Attribute	Transmission Distance	20KM
	Port Rate	GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps
	Wavelength	Forwarding: 1490nm Receiving: 1310nm
	Interface Type	SC/UPC
	Fiber type	9/125μm SMF (Single Mode Fiber)
	Light Transmission Power	Class B+: +1.5 ~+5dBm	Class C+: +3 ~ +7dBm	ClassC++: +4.5 ~ +10dBm
	Receiving Sensitivity	Class B+: -28dBm	Class C+: -30dBm	Class C++: -31dBm
	Saturation Power	Class B+: -8dBm	Class C+: -12dBm	Class C++: -10dBm
Network Management Method		Support CLI, SNMP, TELNET, SSH, WEB
Business Capabilities		Support device log, device upgrade, device management, condition monitoring, configuration management, and user management.
		Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QoS and so on.
		PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on.
		Layer 3 function: support static routing, dhcp-relay and vlanif configuration.
Backplane Bandwidth		63G (FD1604S-C1)
		78G (FD1604E-C1)

Power supply
AC	100V ~ 240V, 47 ~ 63Hz
DC	-40V ~ -72V
BBU (Backup Battery Unit)	DC: 11V～14V. Function: When the regular power supply is cut off, it can be switched to the backup power supply, and when the regular power supply resumes, it will switch back to the regular power supply and charge the backup power supply.
Maximum Power	34.6W (FD1604S-C1) 34.6W (FD1604E-C1) 49.0W (FD1608E-C1)

Environment
Working Temperature	-15 ~ 50℃
Storage Temperature	-40 ~ 85℃
Ambient Humidity	5 ~ 90% (Non-condensing)
