Name: AP
Brand: Shenzhen C-Data Technology Co., Ltd.
Price: 100 USD

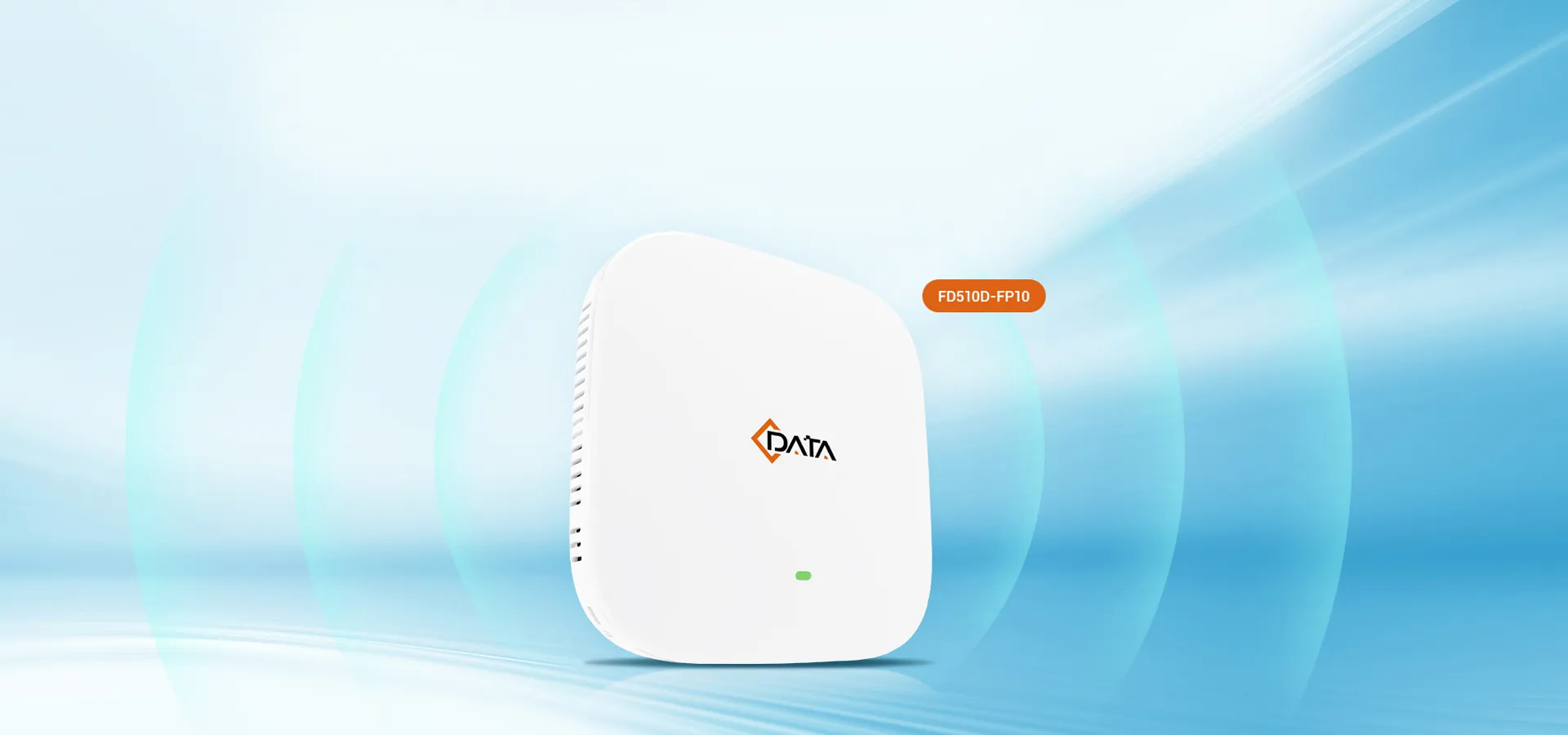

C-Data Wi-Fi 5 xPON Access Point with PoF Support

Delivering Reliable Wireless Coverage Anywhere

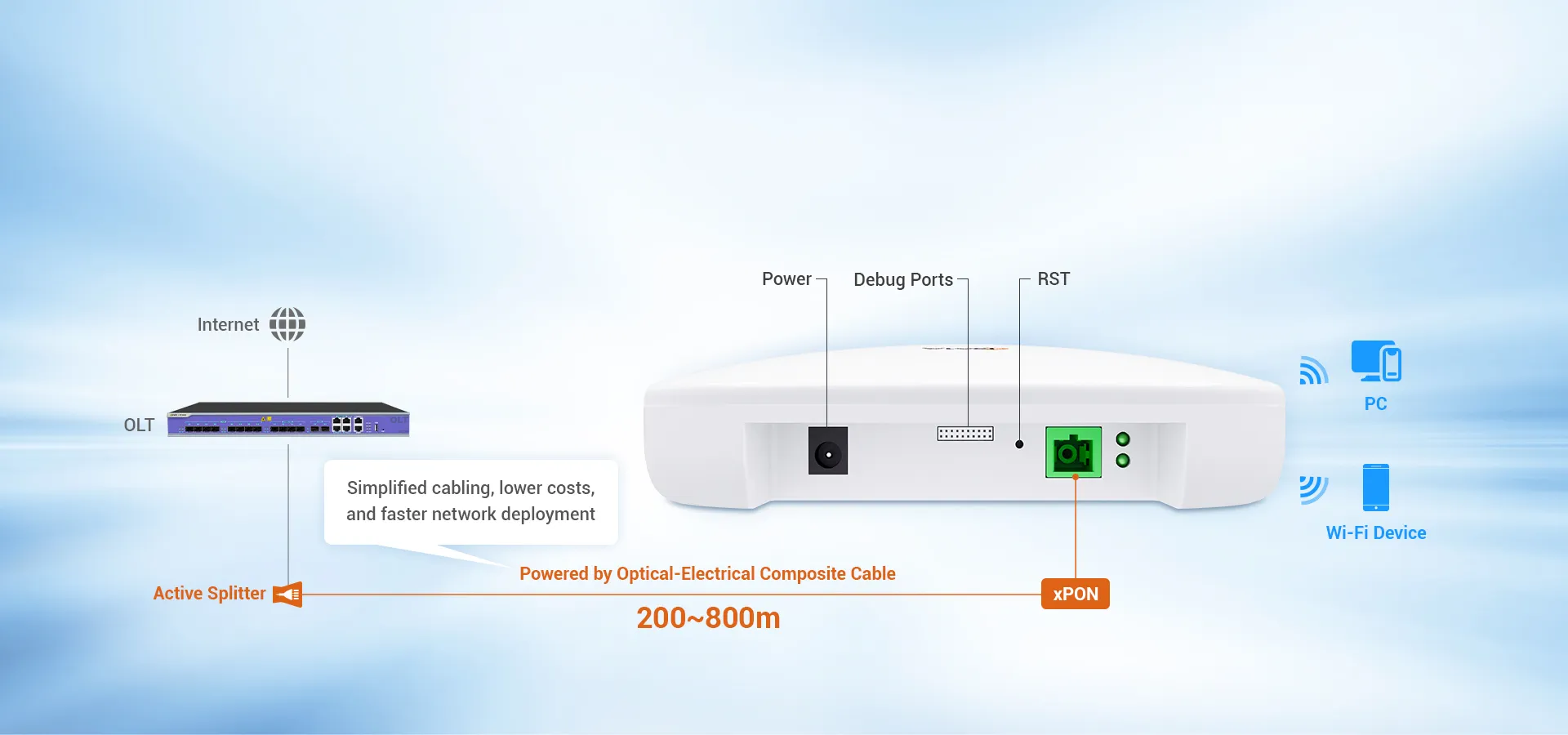

Streamlined Deployment with PoF

C-Data AP delivers both data and power through a single optical-electrical composite cable,

extending power reach to 200-800 meters and eliminating power-access limitations at the far end.

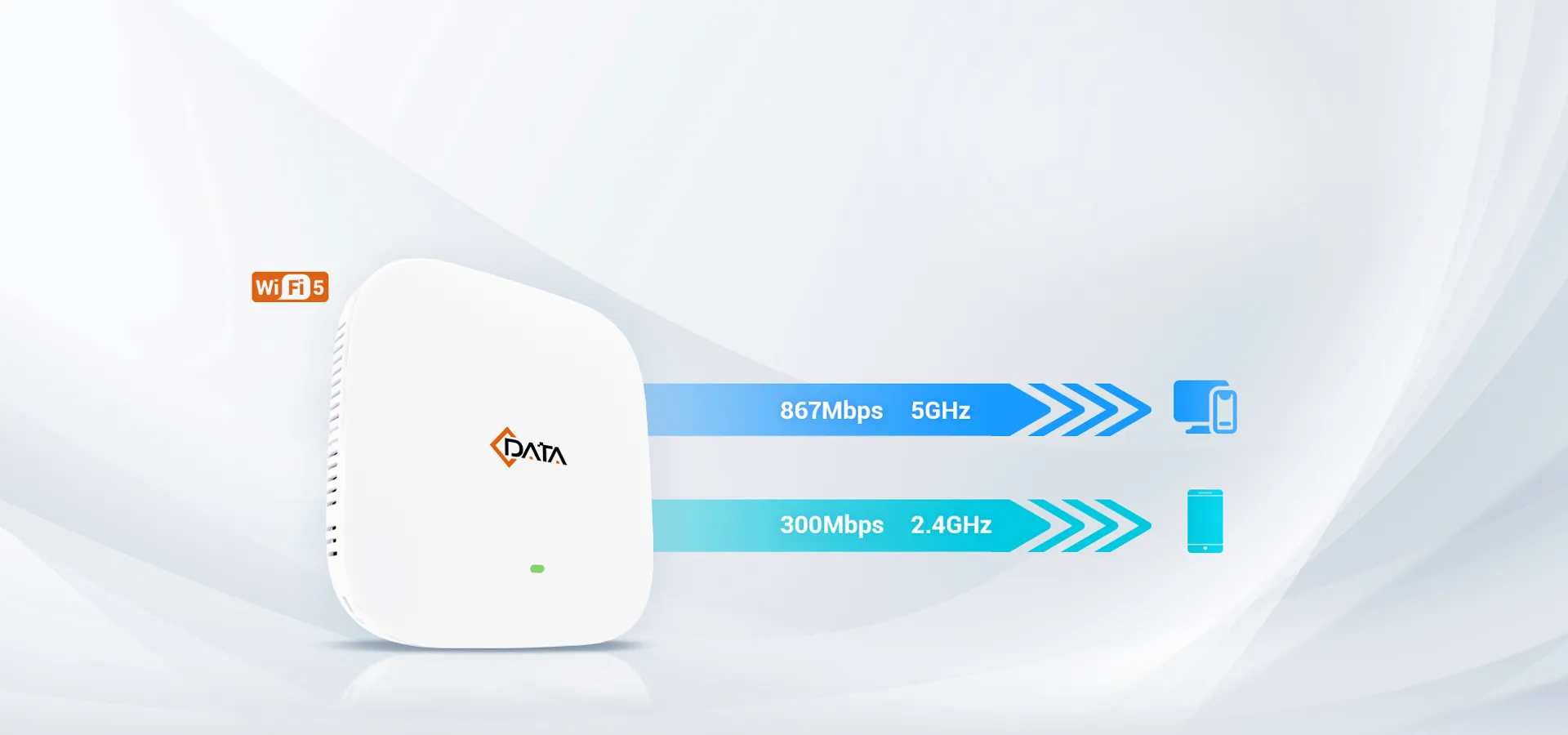

Lightning-Fast Wi-Fi 5 with Seamless Roaming

Upgrade your network with the Wi-Fi 5 AP, which provides dual-band speeds of up to 1200Mbps, enabling fast, low-latency connections.

Intelligent roaming ensures seamless, stable network experience as users move across the network.

Wide-Area Wi-Fi Coverage

Four internal 3dBi antennas are precision-tuned for ceiling-mount deployment, delivering wide, stronger and coverage,

extending fast and Wi-Fi to every corner of your home or office.

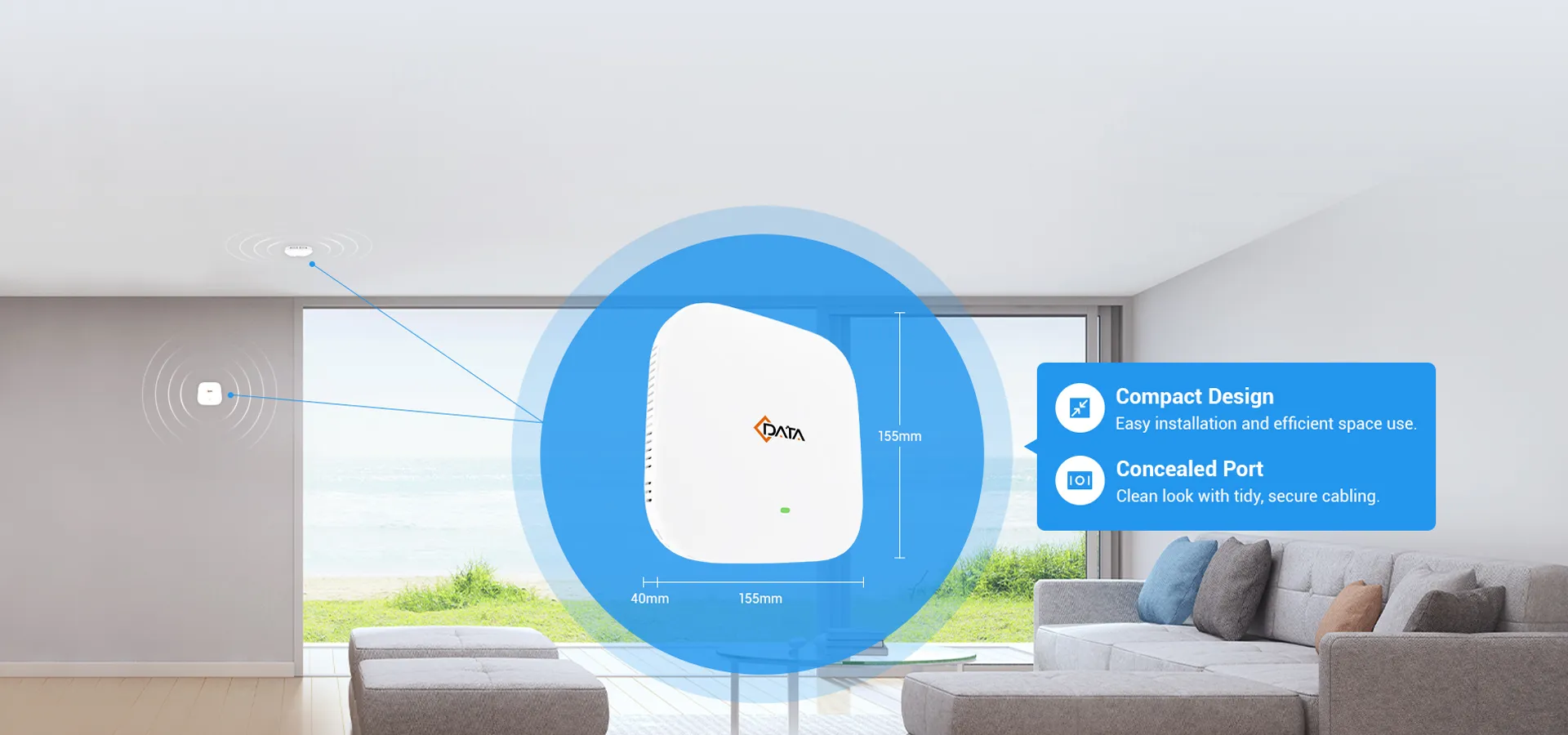

Flexible Mounting for Every Scenario

Supports both ceiling and wall mounting for flexible deployments, with a sleek, modern design that blends seamlessly into any setup.

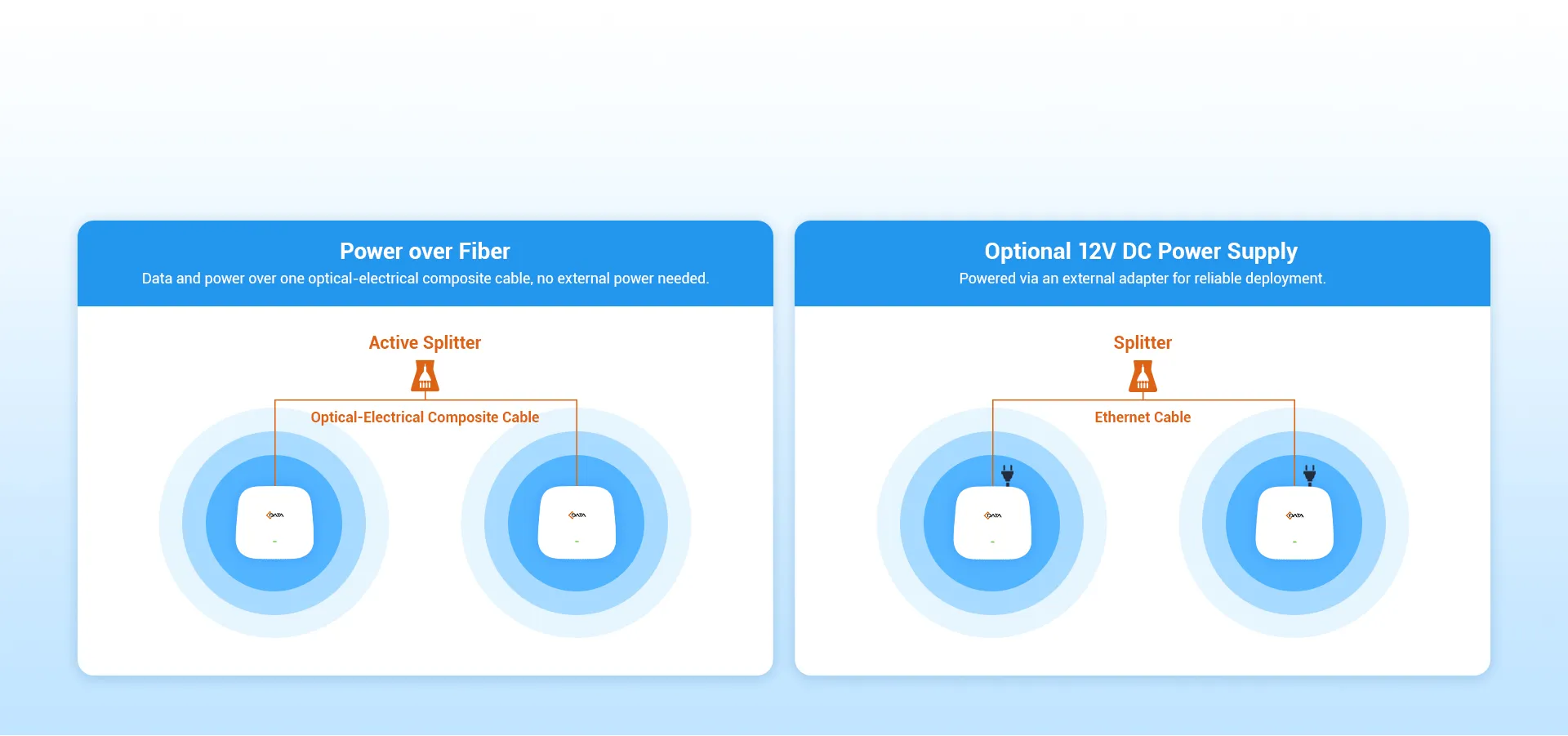

Flexible Power Options

Supports flexible power options to meet the needs of different deployment scenarios.

Remote Management, Efficient O&M

Web management platform enables remote configuration and maintenance, with an intuitive interface for simplified and efficient operations.

Diverse Application Scenarios

Specifications

See More 

Take Back 

Related Products

ITEM	FD510D-FP10
Interface	1Pin type Debugging port base (default configuration) or 1GE RJ-45 connector(optional)
	1 * SC type optoelectronic composite cable interface
	1DC power port, 1Reset, 4*Internal Wi-Fi Antennas
Indicators	PON/LOS
Pon Port	PON Mode	EPON：1000BASE-PX20+ symmetric GPON：ITU-T G.984.2 standard,Class B+
	PON Rate	EPON：1.25Gbps downstream/upstream GPON:2.488Gbps/1.244Gbps downstream/upstream
	Wavelength	Transmit: 1310nm	Receiver: 1490nm
	Receiving sensitivity	EPON：-27dBm GPON：-28dBm
	Saturated power	EPON：-3dBm GPON：-8dBm
	Transmitting power	EPON:0～4dBm GPON：0.5～5dBm
WIFI
IEEE 802.11b/g/n(2.4GHz) IEEE 802.11a/n/ac(5GHz)
Total wireless rate is 1200Mbps 2.4GHz: 40Mhz bandwidth maximum rate 300Mbps 5GHz: 80Mhz bandwidth maximum rate 867Mbps
2.4GHz EIRP: 23dBm / 5GHz EIRP: 22dBm
Power supply
POF IN (optical-electric composite cable power supply, Standard PoE protocol),
Input voltage		44-56V
External power supply adapter		12VDC/1A
External power supply adapter		≤6W
Environment
Working temperature		0 to 40ºC
Operating humidity		10% ~ 90% (Non-condensing)

Product Model

Specifications

Power Supply

FD510D-FP10

1*xPON (SC Type) + 1*GE RJ45 (optional)

PoF Input Voltage: 44-56V

External Power Adapter: 12V DC/1A

Power Consumption: ≤6W
