Multi-functional Gateway
Amlogic S905Y4 | Band Steering | 2GB+16GB | AV1 Decoding | Android 11 | BLE 5.0
ONU+OTT+WiFi
Online, Video, Audio, Entertainment...Take what you need
The Most Advanced Video Encode Format | The Open Source Version, Royalty Free | Higher Definition Video than H.265

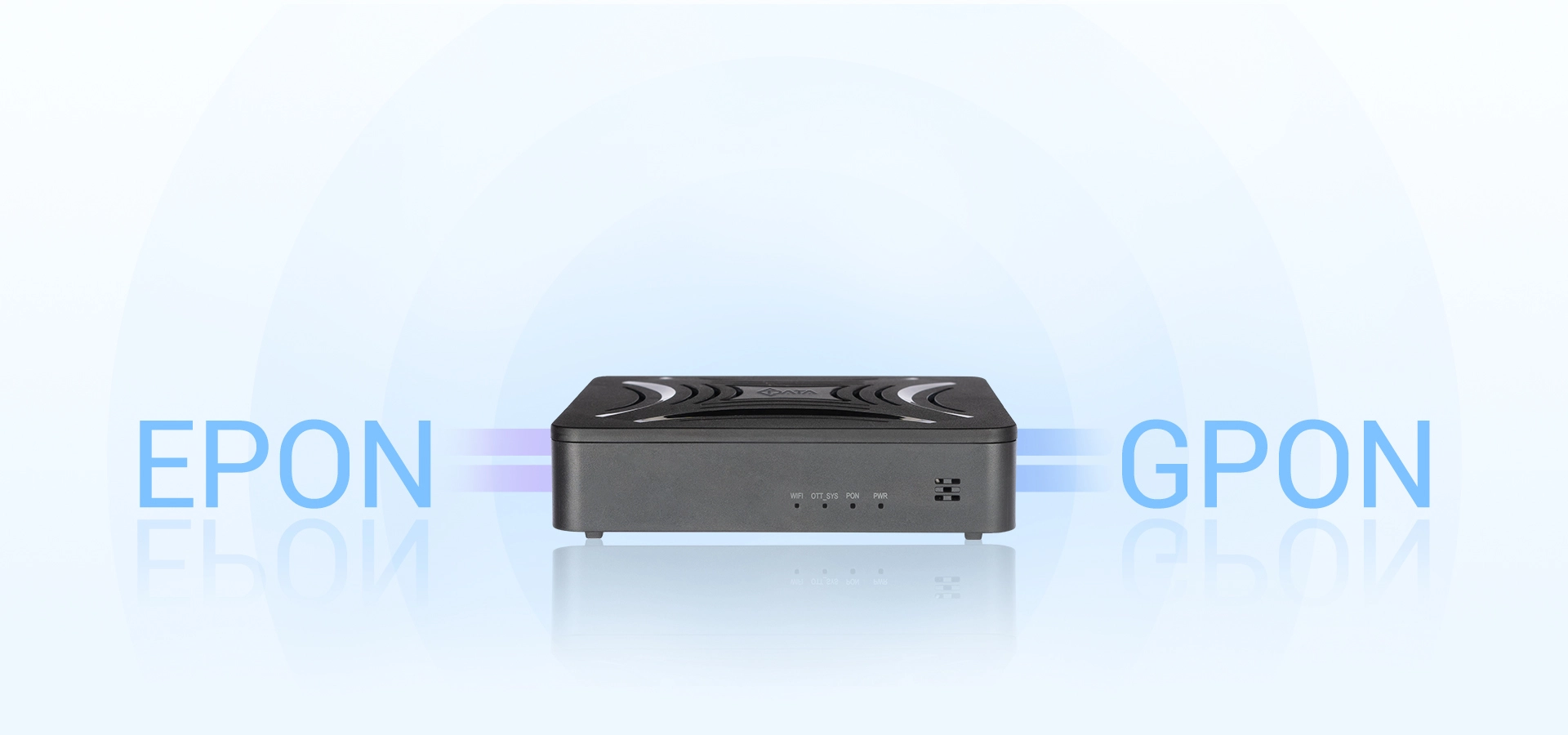

EPON/GPON Dual-mode Access, Reduce the Investment of Operators
Compatible with multi-brand OLT, easy interconnection
Band Steering, Automatic Network Switching, Convenient and Fast; Wireless AP Mode, Serve More Users, Wider Transmission Range

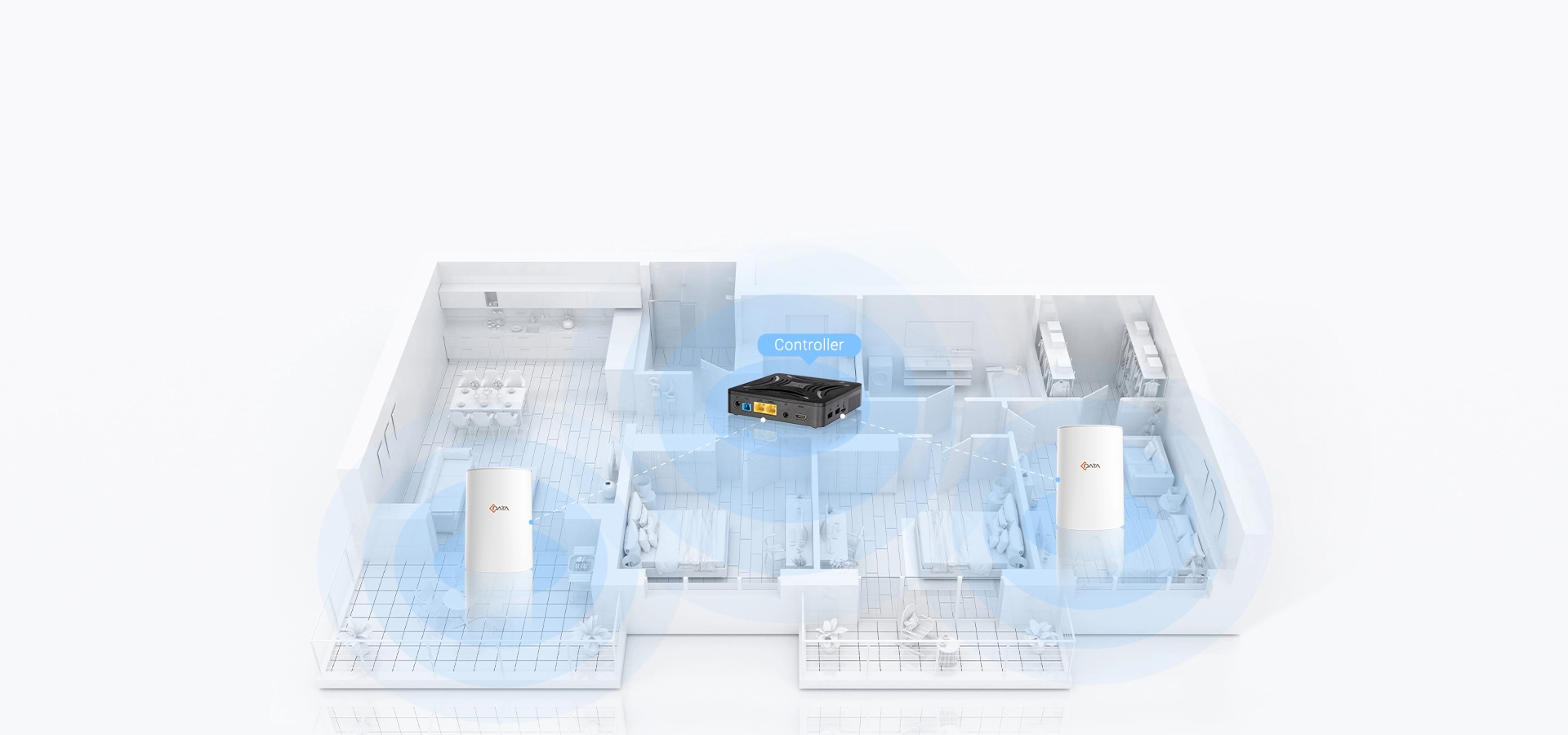

Cooperate with C-DATA mesh router to form a home wireless mesh network; As the Controller, Uniformly Configure the Network Node
Supports External Bluetooth Speakers, Remote Controls, and Headphones for Better Experience.
Android 11 is Open, Stable and More Compatible
Free to Install Various Third-Party Applications

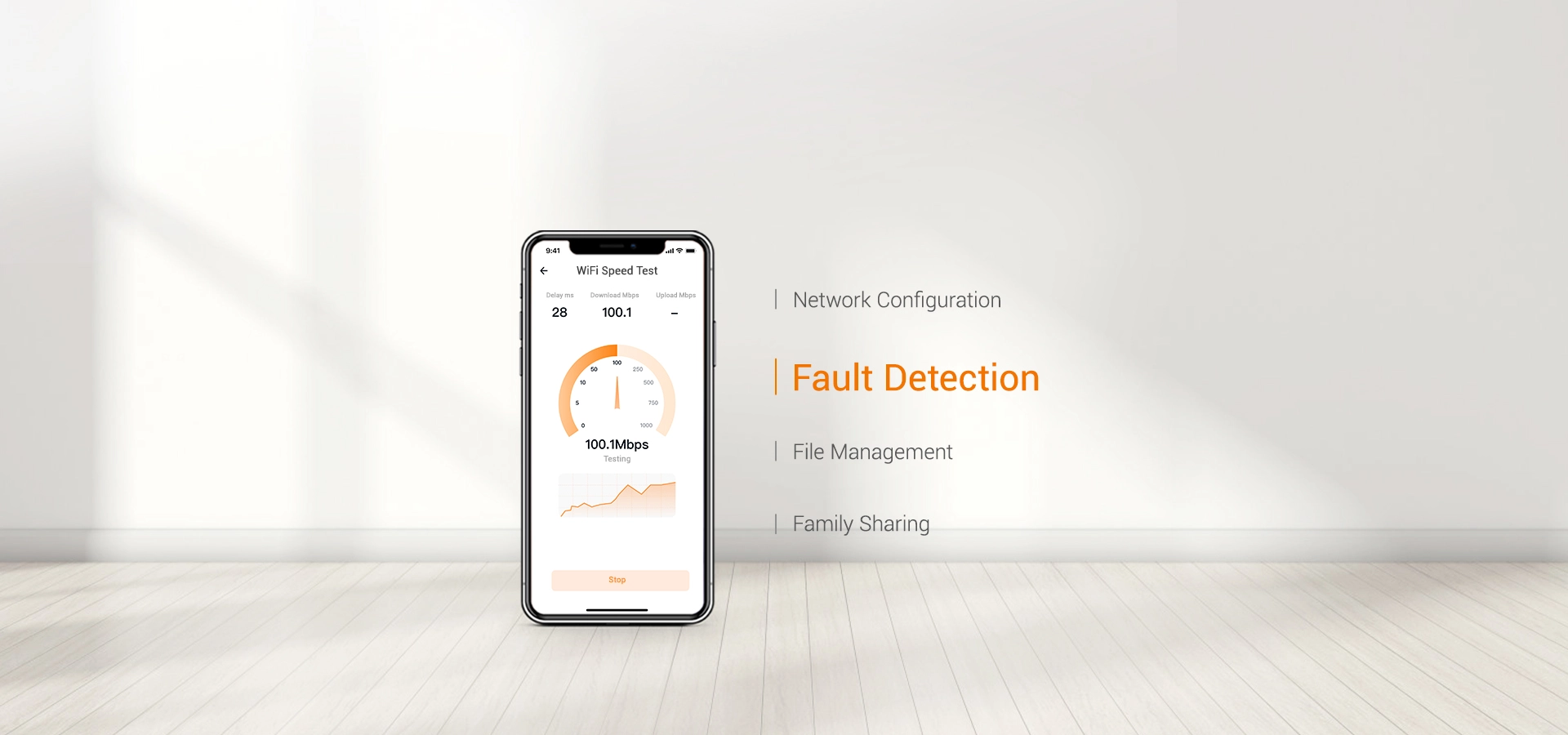

Various Problems, Easily Solved by Forlink
| Model | OpticMedia M1 |
| Hardware | Ports 2*10/100/1000 Mbps Auto-negotiation RJ45 ports WiFi 2.4G/5G RAM /ROM 2GB+16GB / 4GB+32GB / 8GB+64GB |
| Software | System Android 11 |
| Item |
|
| |
| Specifications | 1*xPON + 2*GE RJ45 + 1*HDMI + Dual-Band Wi-Fi | 1*xPON + 1*GE RJ45 + 1*HDMI + Wi-Fi | |
| GPON/EPON Port | SC/APC single mode single fiber | SC/APC single mode single fiber | |
| GPON | FSAN G.984.2 standard, Class B+ | FSAN G.984.2 standard, Class B+ | |
| EPON | 1000BASE-PX20+ symmetric | 1000BASE-PX20+ symmetric | |
| GPON | 2.488Gbps/1.244Gbps downstream/upstream | 2.488Gbps/1.244Gbps downstream/upstream | |
| EPON | 1.25Gbps downstream/upstream | 1.25Gbps downstream/upstream | |
| Wavelength | Transmit: 1310nm Receiver: 1490nm | Transmit: 1310nm Receiver: 1490nm | |
| Receiving sensitivity | GPON：-28dBm EPON：-27dBm | GPON：-28dBm EPON：-27dBm | |
| Saturated power | GPON：-8dBm EPON：-3dBm | GPON：-8dBm EPON：-3dBm | |
| Transmitting power | GPON：0.5～5dBm EPON:0～4dBm | GPON：0.5～5dBm EPON:0～4dBm | |
| User Port(LAN) | 2*10/100/1000 Mbps Auto-negotiation RJ45ports | 1*10/100/1000 Mbps Auto-negotiation RJ45ports | |
| Full Duplex / Half-Duplex | Full Duplex / Half-Duplex | ||
| RJ45, Auto-MDI/MDI-X | RJ45, Auto-MDI/MDI-X | ||
| Transmission Distance 100 Meter | Transmission Distance 100 Meter | ||
| User Port(HDMI) | 1*HDMI Type A | 1*HDMI Type A | |
| Transmission Distance 20 Meter | Transmission Distance 20 Meter | ||
| User Port(USB) | 2*USB2.0 Type A HOST | 2*USB2.0 Type A HOST | |
| Transmission Distance 5 Meter | Transmission Distance 5 Meter | ||
| User Port(AV) | 1*3.5mm AV port | 1*3.5mm AV port | |
| User Port(TF Card) | Up to 128GB capacity | Up to 32GB capacity | |
| Indicators | PWR / PON / OTT_SYS / Wi-Fi | PWR / PON / OTT_SYS/Wi-Fi | |
| Power | External 12V/1.5A DC power supply adapter | External 12V/1.5A DC power supply adapter | |
| Power consumption: <10W | Power consumption: <8W | ||
| WIFI performance parameters | IEEE802.11b/g/n/ac(2.4G/5G) | IEEE802.11b/g/n/ac(2.4G) | |
| Max rate: 1200Mbps(Dual Frequency ) | Max rate: 300M(2.4G) | ||
| Antenna gain：3dBi | Antenna gain：3dBi | ||
| Max TX power: 17dBm | Max TX power: 2.4G：17dBm | ||
| Dimension and Weight | Item Dimension | 135mm(L) x135mm(W) x32mm (H) | 135mm(L) x135mm(W) x32mm (H) |
| Item weight | about 320g | about 300g | |
| Environmental Specifications | Operating temperature | 0 to 40ºC | 0 to 40ºC |
| Operating humidity | 10% to 90%(Non-condensing) | 10% to 90%(Non-condensing) |
| NO. | Product Model | Specifications | Accessories |
| 1 | OpticMedia M1 | 1*xPON + 2*GE RJ45 + 1*HDMI + Dual-Band Wi-Fi | |
| 2 | OpticMedia M2 | 1*xPON + 1*GE RJ45 + 1*HDMI + Wi-Fi |
