FD511GW-R360
1GE+WIFI XPON ONU

Name: FD511GW-R360
Brand: Shenzhen C-Data Technology Co., Ltd.

FD511GW-R360 dual-mode ONU supports EPON and GPON two modes access. The ONU automatically switches into the corresponding PON mode by identifying the local OLT mode to complete GPON or EPON adaptive access.

FD511GW-R360 have a high reliability and provide quality of service guarantee, easy management, flexible expansion and networking. It fully meets the ITU-T and IEEE technical standards and have good compatibility with third party OLT.

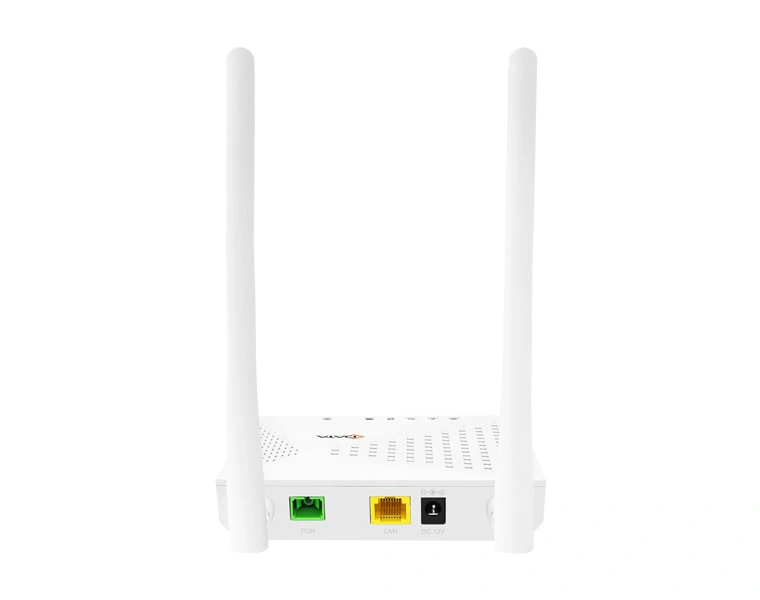

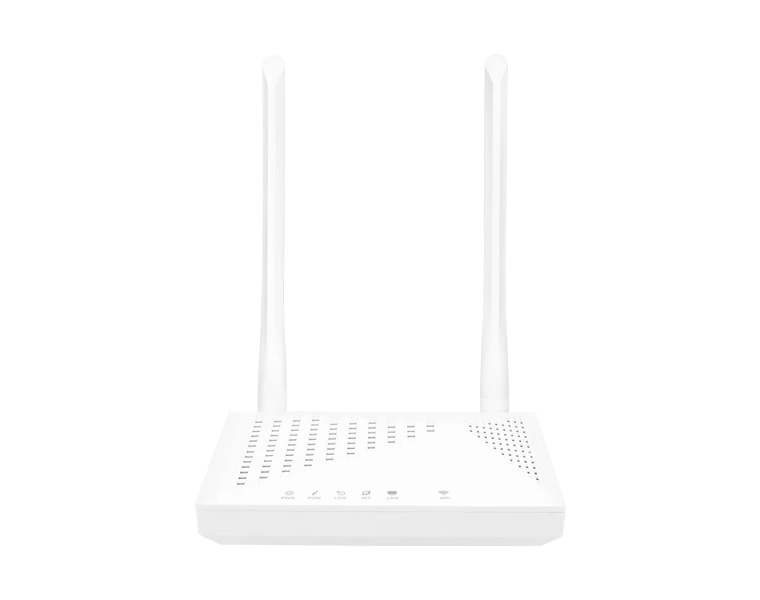

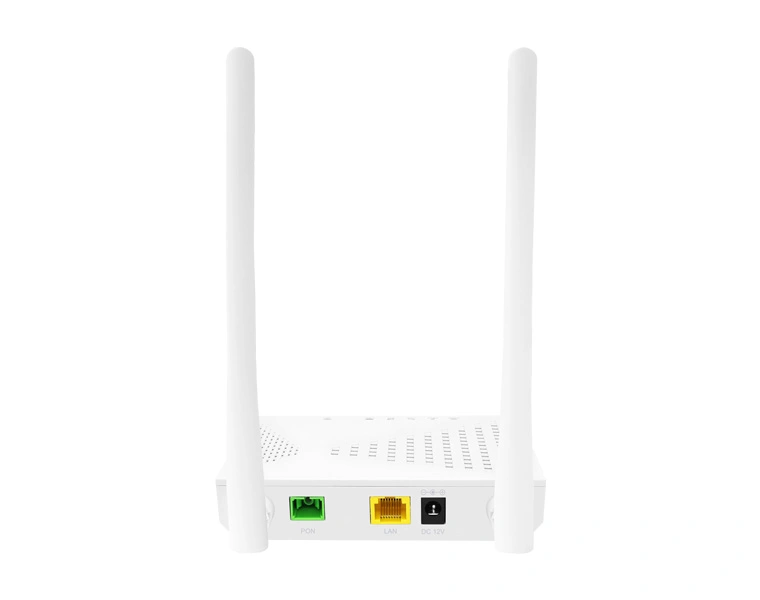

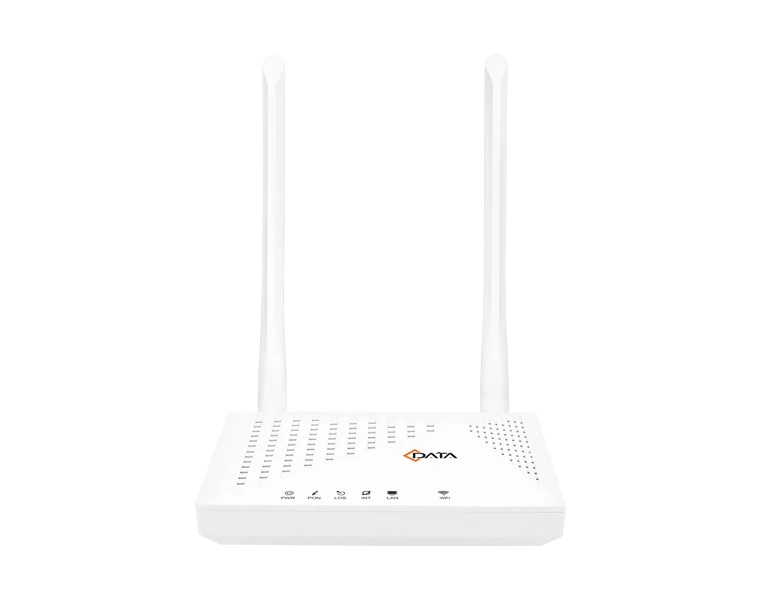

FD511GW-R360 integrates wireless function which meets 802.11 b/g/n technical standards. It has two external high gain omnidirectional antennas, the wireless transmission rate up to 300Mbps. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.

 Download  Inquiry

Technical Specifications

Item		FD511GW-R360
Specifications		1xPON + 1GE RJ45 + Wi-Fi
GPON/EPON Port		Single mode single fiber
	GPON	FSAN G.984.2 standard,Class B+
	EPON	1000BASE-PX20+ symmetric
	GPON	2.488Gbps/1.244Gbps downstream/upstream
	EPON	1.25Gbps downstream/upstream
	Wavelength	Transmit: 1310nm Receiver: 1490nm
	Receiving sensitivity	GPON：-28dBm EPON：-27dBm
	Saturated power	GPON：-8dBm EPON：-3dBm
	Transmitting power	GPON：0.5～5dBm EPON:0～4dBm
User Port(LAN)		RJ-45 connector
		1 *10/100/1000Mbps adaptive Ethernet port
		Full/half duplex
		Auto MDI/MDI-X
WIFI performance parameters		IEEE802.11b/g/n(2.4G)
		Max rate: 300M(2.4G)
		MAX TX power 2.4G:17dBm
Indicators		PWR / PON / LOS / GE / WIFI / INT / OPT
Power		External 12VDC/0.5A power supply adapter
Power		Power consumption:<4.2W
Dimension and Weight	Item Dimension	125mm(L) x 107.5mm(W) x 30.5mm (H)
Dimension and Weight	Item weight	0.20kg
Environmental Specifications	Operating temperature	0 to 40ºC
	Storage temperature	-40 to 85ºC
	Operating humidity	10% to 90%(Non-condensing)
