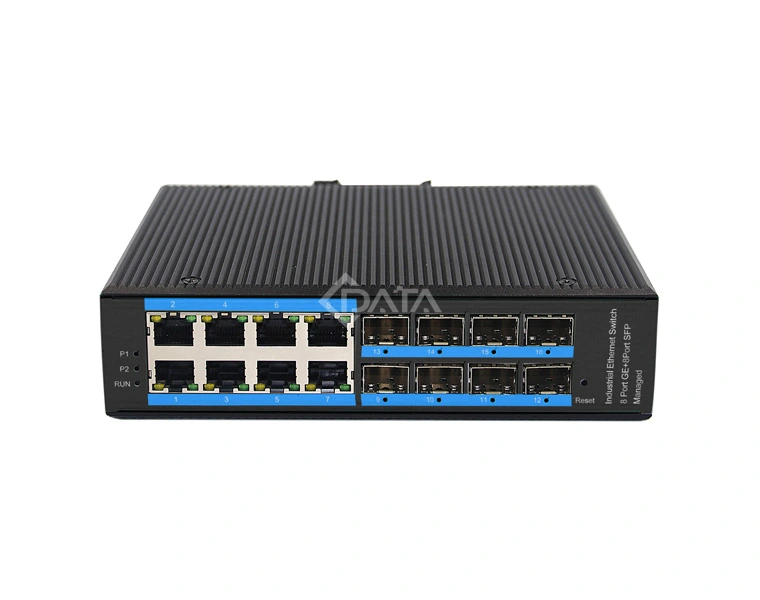

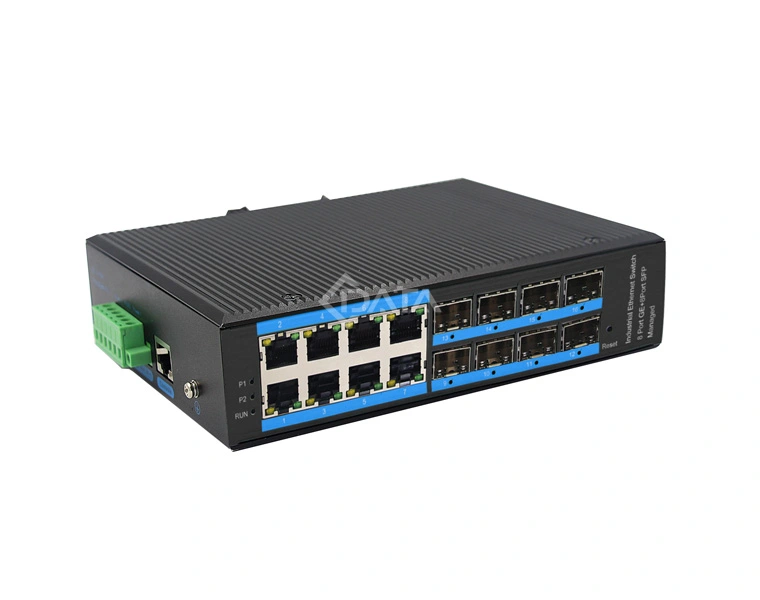

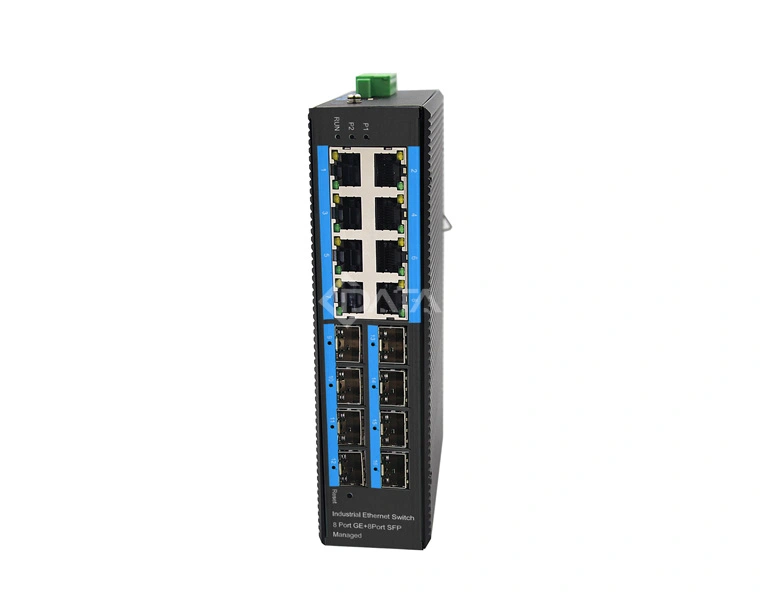

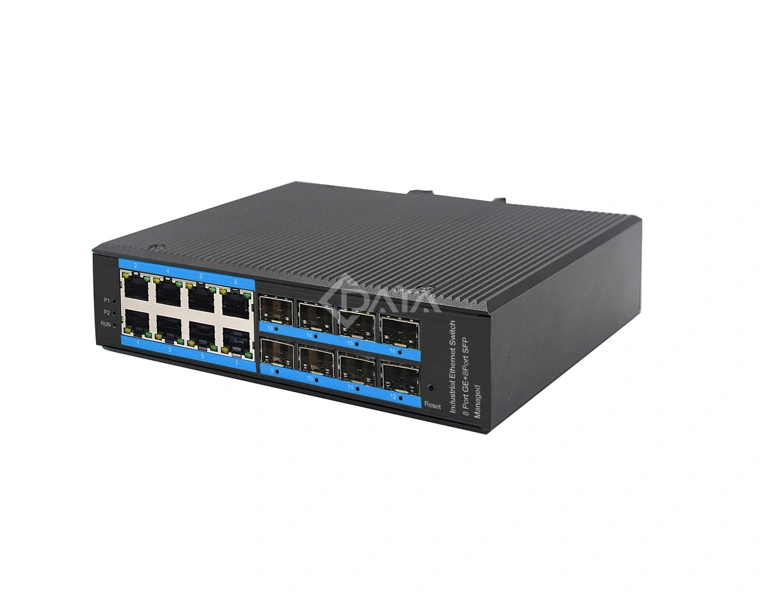

CI3088GS-POE
L2 Industrial PoE Managed Ethernet Switch 8GE + 8SFP

CI3088GS-POE an hardened 16-port Industrial Ethernet Switch, provides non- blocking wire-speed performance in harsh industrial environment. It provides 8- port 10/100/1000BASE-TX RJ45 +8G SFP delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.

Technical Specifications

Item

CI3088GS-POE

Specifications
8*RJ45 PoE + 8*1000M SFP
Downlink ports
8*10/100/1000BASE-T RJ45 ports
Uplink ports
8*SFP
Console port
1 pcs
Switching capability
76Gbps
Packets switching capability
23.8Mpps
Switching method
Storage forwarding
LED light
Power,system
Enviroment parametersWork temperature-40 to 80℃
Storage temperature-40 to 85℃
Work humidity5% to 95%
Storage humidity5% to 95%
IP class
IP40 aluminum housing
MAC table size
8K
FAN
Fanless,natural cold
MTBF
>300,000hours
Power
48 to 57V DC redundant power
Power consumption
<10W
Dimention(W*D*Hmm)
176×137×46mm
WeightProduct Weight0.88KG
Packing Weight0.98KG
Certification
CE FCC ROHS compliance
Installation
DIN rail
EMCIEC61000-4-2 (ESD)±8kV (contact), ±12kV (air)
IEC61000-4-3 (RS)10V/m (80~1000MHz)
IEC61000-4-4 (EFT)Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge)Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS)3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction)30V (cont.), 300V (1s)
PoE
IEEE802.3af/ IEEE802.3at

1-8 ports support PoE

Output Voltage: DC48V

Max. 15.4 watts (IEEE 802.3af)

Max. 30 watts (IEEE 802.3at)

PoE port Auto detect AF/AT devices

Power Pin Assignment:1/2+;3/6-

End-span( Mid-span optional)
