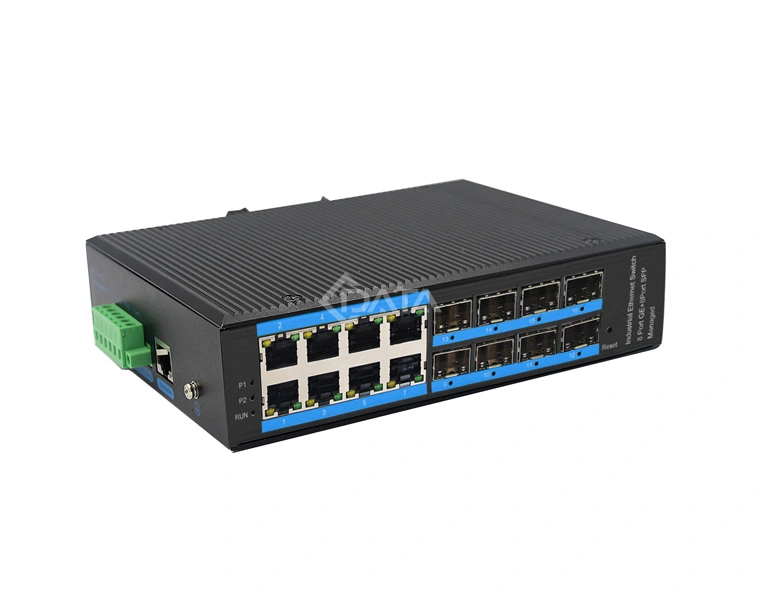

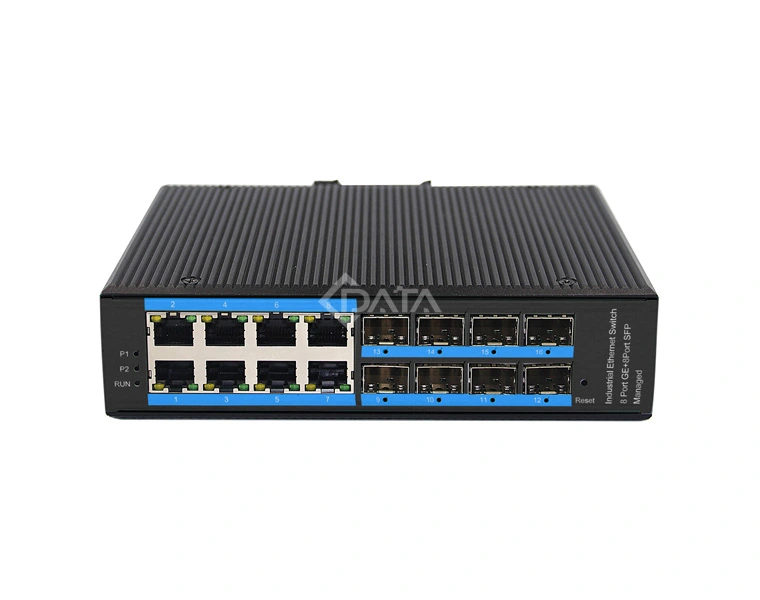

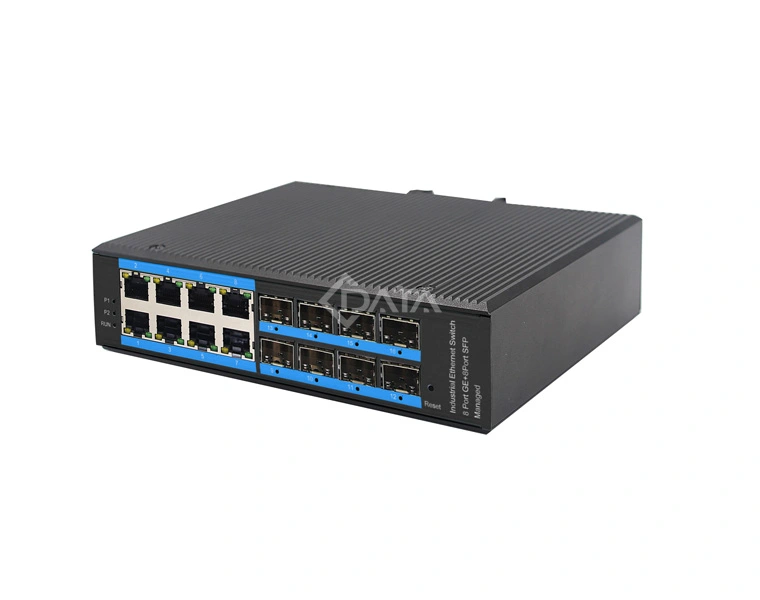

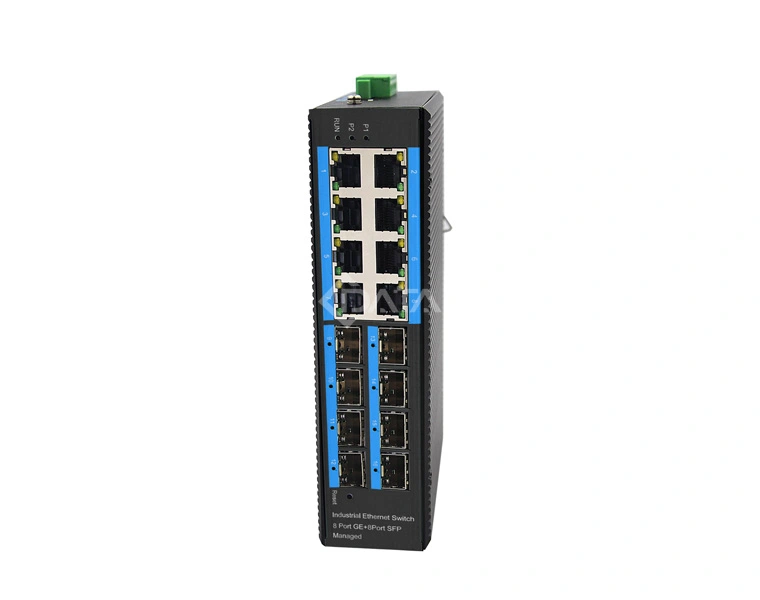

L2 Industrial Managed Ethernet Switch 8GE + 8SFP

CI3088GS an hardened 16-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It provides 8-port 10/100/1000BASE-TX RJ45 +8G SFP delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.

Technical Specifications

Specifications8*RJ45 + 8*1000M SFP
Downlink ports8*10/100/1000BASE-T RJ45 ports
Uplink ports8*SFP
Console port1 pcs
Switching capability76Gbps
Packets switching capability23.8Mpps
Switching methodStorage forwarding
LED lightPower, system
Enviroment parametersWork temperature: -40 to 80℃
Storage temperature: -40 to 85℃
Work humidity: 5% to 95%
Storage humidity: 5% to 95%
IP classIP40 aluminum housing
MAC table size8K
FANFanless, natural cold
Power12 to 52V DC redundant power
Power consumption<10W
WeightProduct Weight: 0.88KG
Packing Weight: 0.98KG
CertificationCE FCC ROHS compliance
InstallationDIN rail
EMCIEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)
IEC61000-4-3 (RS): 10V/m (80~1000MHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

Jumbo Frames9600bytes
VLANPort based VLAN
Max.4094 VLANs
Support GVRP protocol
Support Access, Trunk, Hybrid
QoSIEEE 802.1p/1Q
TOS/ Diffserv
LACPSupport Link Aggregation Control Protocol
LLDPSupport Link Layer Discovery Protocol
MulticastIGMP v1/v2/v3
IGMP snooping
Security featureSupport ACL
Support 802.1x
Support user classification management
Support mac address binding
Ring protect protocolSupport STP/RSTP/MSTP
Support ERPS (self-healing time<20ms)
Flow controlSupport 802.3x full duplex flow control
Support network storm suppression
Monitoring maintenanceSupport port mirroring
Support interface status monitoring
Support log management
Storm controlBroadcast/Multicast/Unknown Unicast storm control
DHCP SnoopingPrevent illegal DHCP server
Alarm functionSupport power supply, port, abnormal state relay output
Network managementSupport SSH/Telnet
(IP:, username/password: admin/admin)
