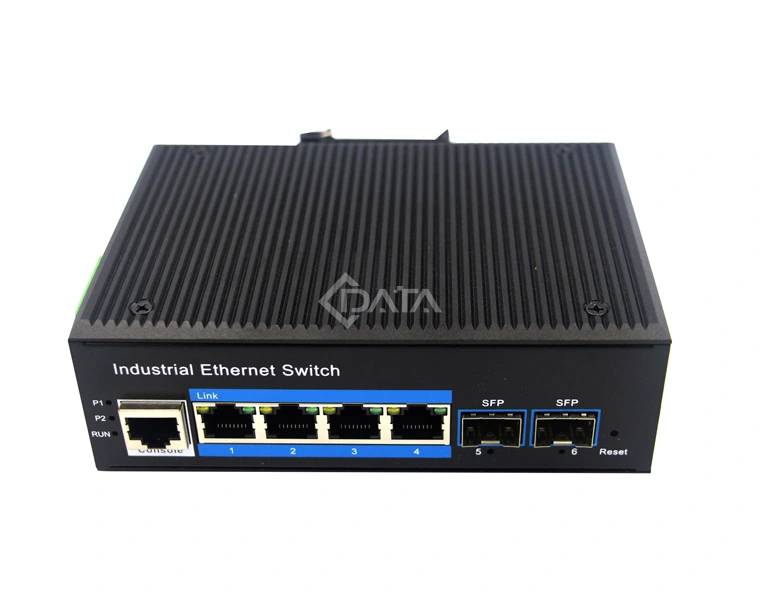

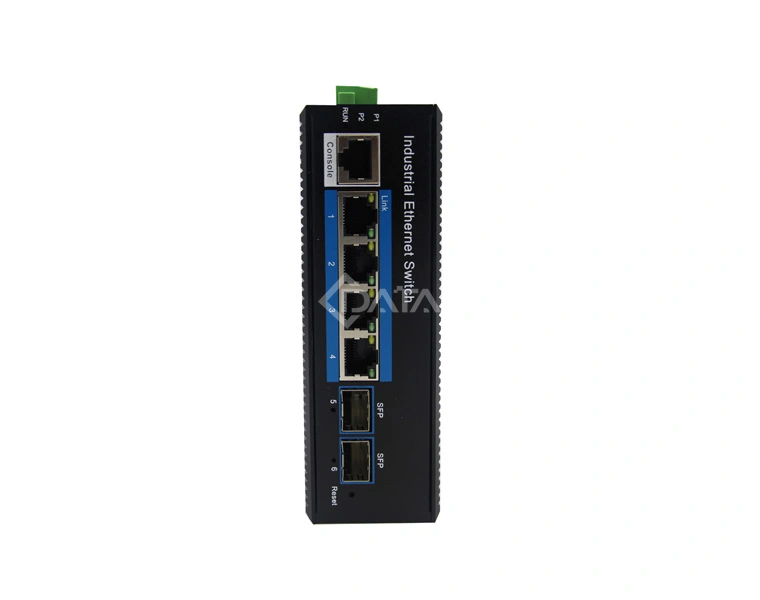

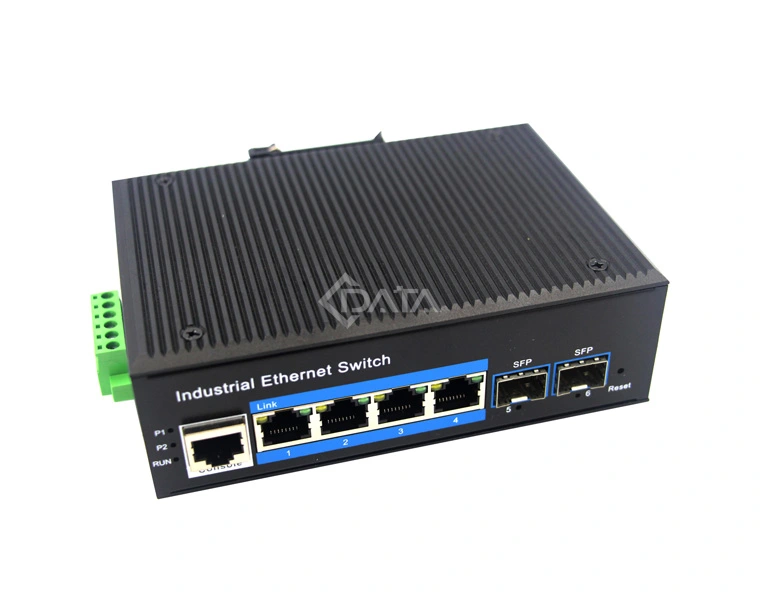

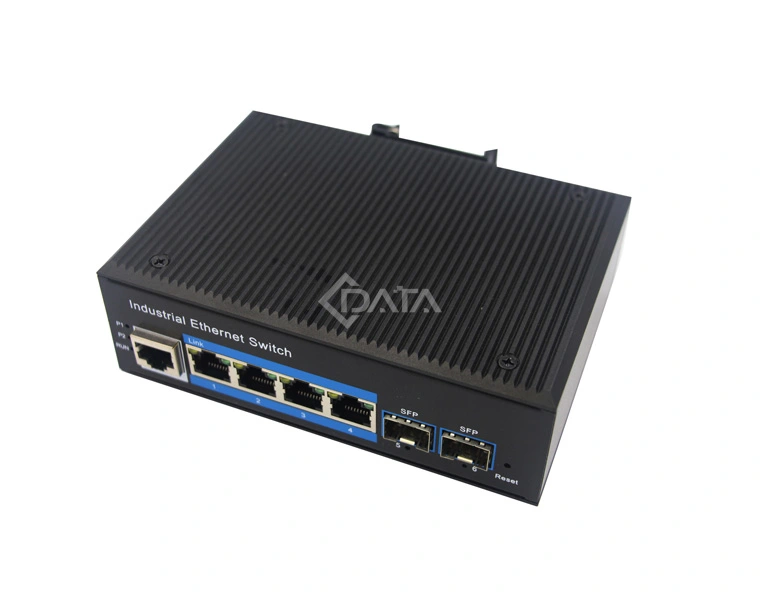

CI3042GS
L2 Industrial Managed Ethernet Switch 4GE + 2SFP

CI3042GS an hardened 6-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It provides 4-port 10/100/1000BASE-TX RJ45 +2G SFP delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.

Technical Specifications

Item
CI3042GS
Specifications4*RJ45 + 2*1000M SFP
Downlink ports4*10/100/1000BASE-T RJ45 ports
Uplink ports2*SFP
Console port1 pcs
Switching capability45.6Gbps
Packets switching capability8.92Mpps
Switching methodStorage forwarding
LED lightPower, system
Enviroment parametersWork temperature: -40 to 80℃
Storage temperature: -40 to 85℃
Work humidity: 5% to 95%
Storage humidity: 5% to 95%
IP classIP40 aluminum housing
MAC table size8K
FANFanless, natural cold
MTBF>300,000hours
Power12 to 52V DC redundant power
Power consumption<10W
Dimention(W*D*Hmm)143.7 x 103 x 44.2mm
WeightProduct Weight: 0.65KG
Packing Weight: 0.75KG
CertificationCE FCC ROHS compliance
InstallationDIN rail
EMCIEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)
IEC61000-4-3 (RS): 10V/m (80~1000MHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
