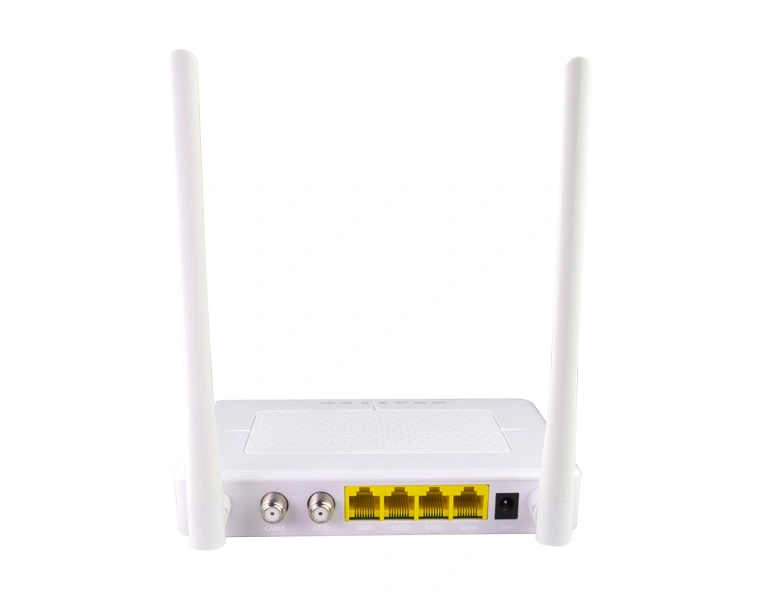

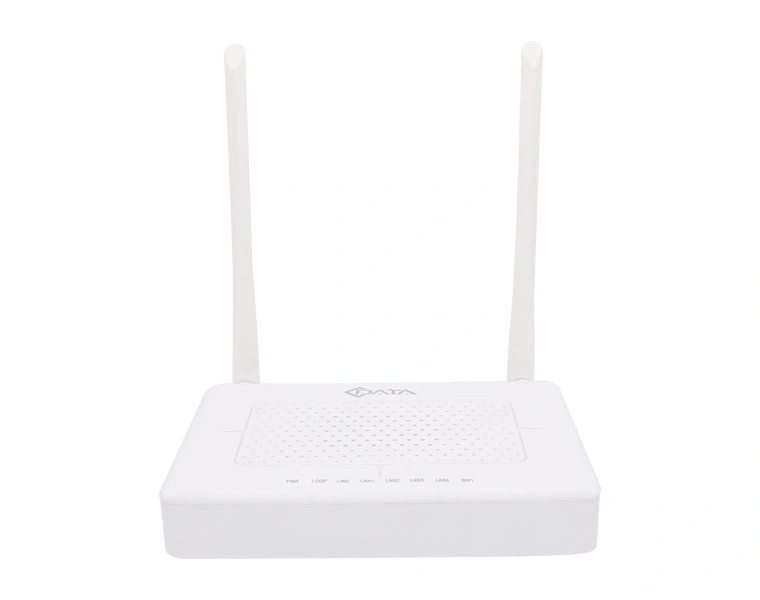

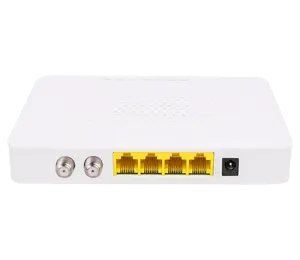

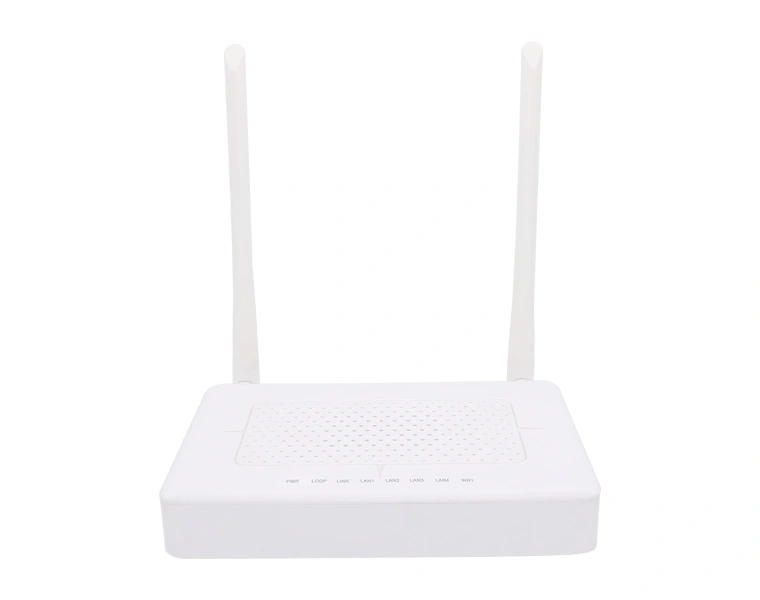

EOC Slave With 4FE & WIFI

CD5204W series is the EOC slave based on HomePlug AV solution for Ethernet access over coax. It works together with EOC master which is based on HomePlug AV solution as well to construct a two-layer Ethernet data transmission channel on CATV coax cable, provide the Ethernet access service based on the existing coax cable networking.

CD5204W series is based the Mstar chipset solution, with high anti jamming capability OFDM technology. The 7.5-65MHz low frequency band is used for EOC signals. Built in high isolation filter as CATV RF and EOC signal mixer, the EOC signal and CATV signal in 87Mhz~1Ghz can run on one cable without interference. The PHY Layer speed is 600Mbps, the MAC Layer throughput is up to 320Mpbs. CD5204W series WIFI is based the MTK chipset solution.It meets 802.11 b/g/n technical standards. It has two external antenna, and can support 2.4GHz wireless signal. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.

Technical Specifications



4*FE RJ45 + 1*RF CATV(F-Type) + Wi-Fi
Interface &indicatorRF interface1*TV(RF signal) OUTPUT, metric/inch F connector
1*CABLE(MIX)INPUT, metric/inch F connector
Ethernet interface4*10/100M auto-negotiation, RJ45
Power interface1*DC12V power supply interface
LED indicators1*power indicator
1*system indicator
1C*ABLE indicator
1*WIFI indicator
LAN indicator(each Ethernet port has 1 indicator)
PerformanceparametersRF parametersFrequency:7.5-65MHz
Output level:110±5dBuv
Receive sensibility:-65dB
Return loss:>16dB
Output impedance:75Ω
TransmissionPHY Layer:600Mbps
Throughput on MAC Layer:320Mbps
Modulation ModeOFDM– 2690-carriers
4096/1024/256/64/16/8-QAM, QPSK, BPSK, ROBO
Working ModeTDMA/CSMA
Encryption ModeAES-128
StandardEOC StandardIEEE P1901(Draft)
HomePlug AV
EthernetStandardIEEE 802.3, IEEE 802.3x, IEEE 802.3u
IEEE802.1P, IEEE802.1Q
SoftwareNetwork ManagementWEB, CLI, SNMP
Software FeaturesVLAN, QOS, Bandwidth Control, Broadcast stormlimitation
PhysicalFeaturesPower supply & ConsumptionPower adapter:12VDC 0.5A
Power consumption:<5W
Dimension160mm(L) x139.5mm(W) x 28.5mm (H)
EnvironmentAttributeWork temperature:0~55℃
Stock temperature:-30~60℃
Work humidity:10%~90%, non-condensation
Stock humidity:5%~95%, non-condensation
