Functional characteristics Specifications Pictures Related Products

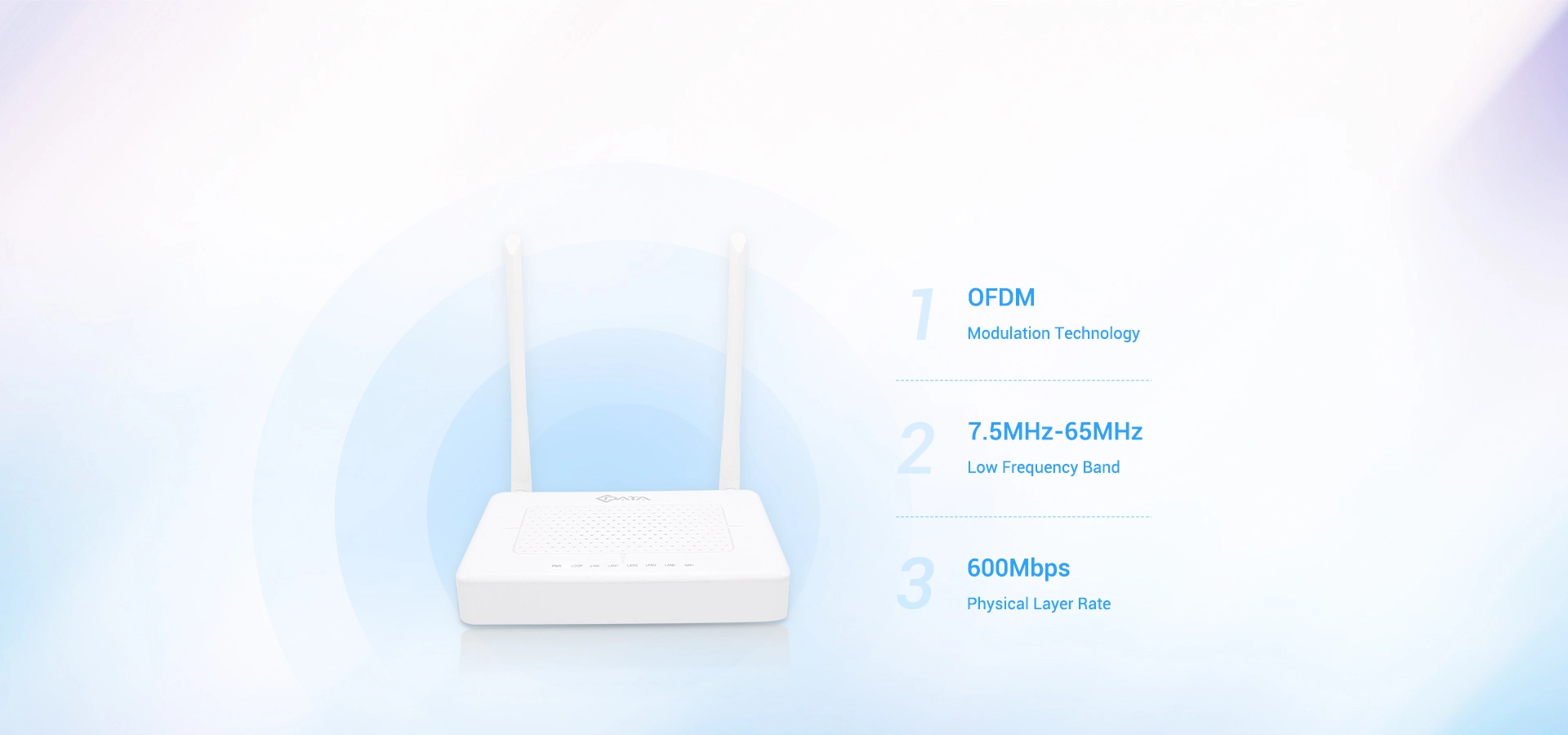

EOC SLAVE

  • HomePlug AV
    HomePlug AV
  • OFDM
    OFDM
  • 2.4GHz Wi-Fi
    2.4GHz Wi-Fi
  • CCA
    CCA

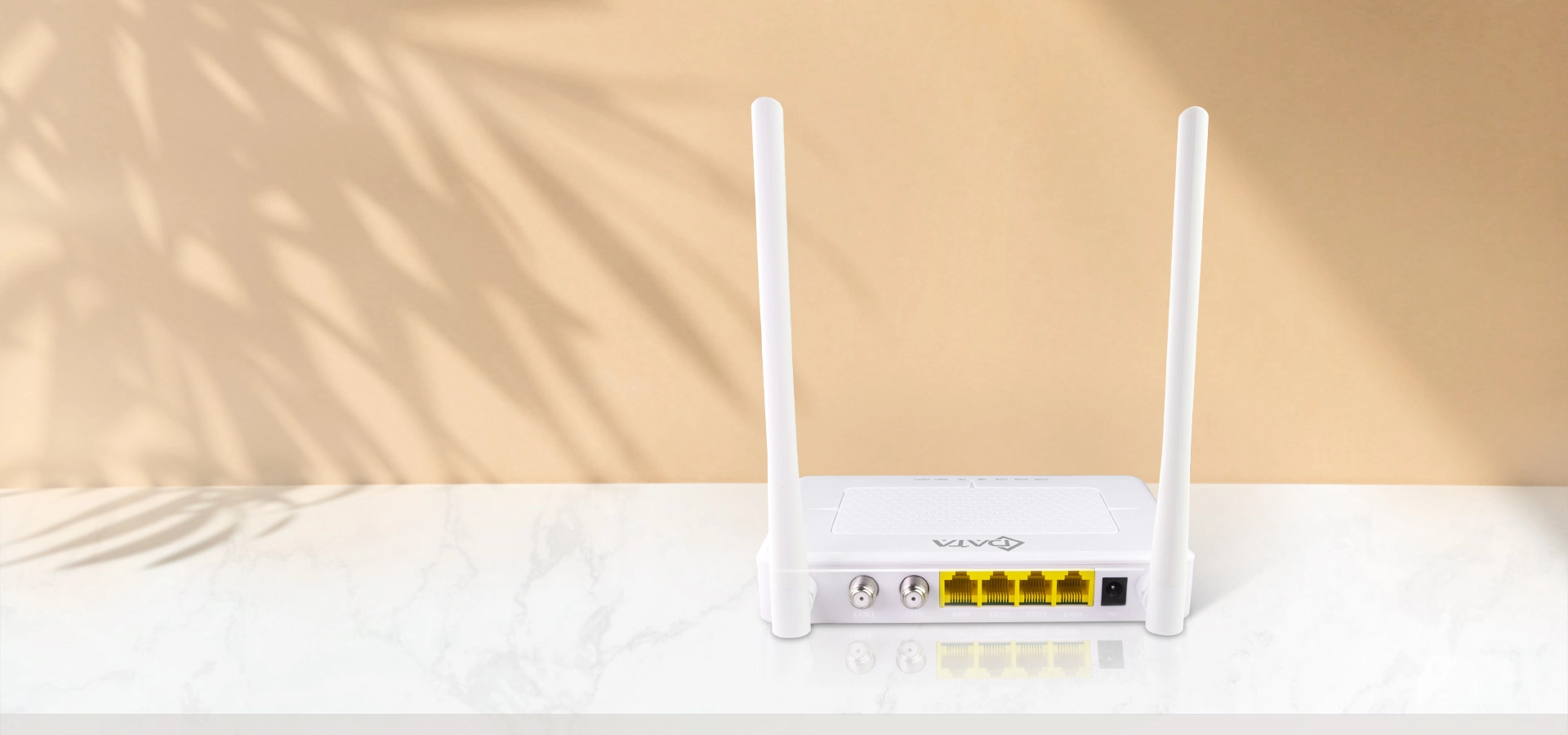

No Need for Rewiring Reducing Wiring Investment
No Need for Rewiring Reducing Wiring Investment

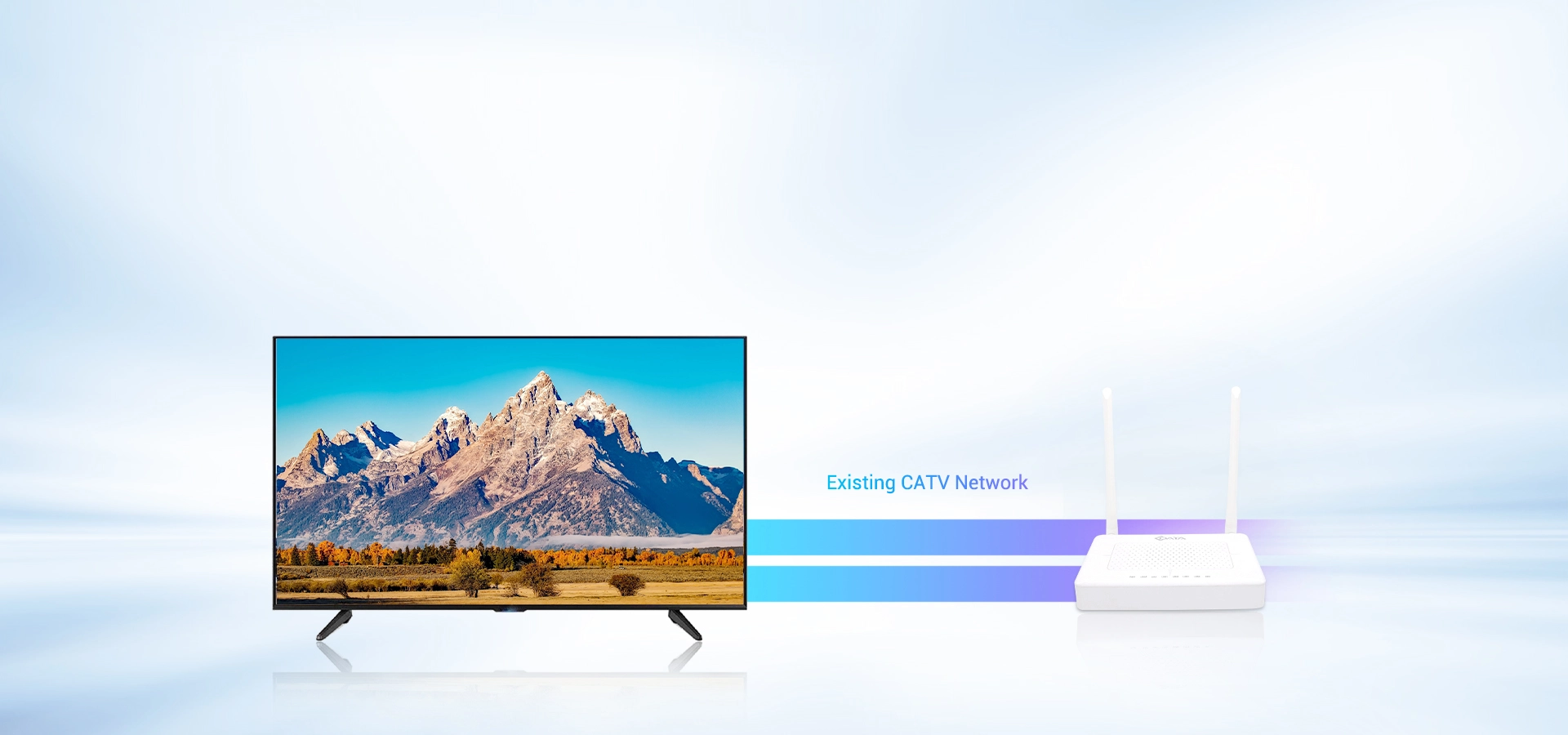

When using C-Data EOC slave for data access services, there is no need to change the existing CATV network, fully utilize the existing coaxial cable resources, and reduce the investment in line transformation.


Strong Anti-interference Ability, Stable Working
Strong Anti-interference Ability, Stable Working

C-Data EOC slaves adopt OFDM modulation technology with strong anti-interference ability, occupy the low frequency band of 7.5MHz-65MHz, and the frequency band of 600Mbps physical layer rate, without affecting the original TV broadcast frequency band.

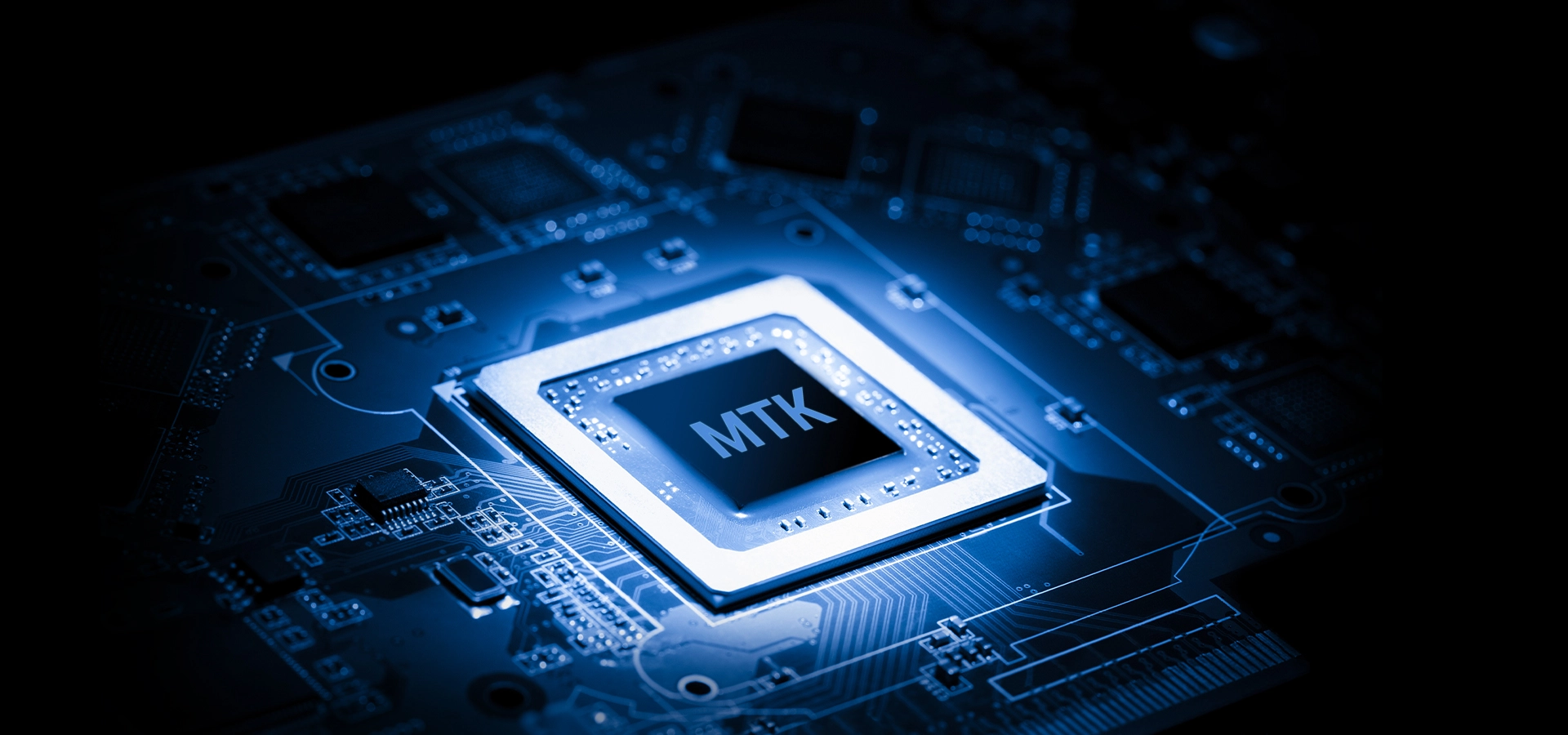

2.4G Wi-Fi ​Supports Wireless Transmission
2.4G Wi-Fi ​Supports Wireless Transmission

The WIFI part adopts MTK7628NN chip solution, supports IEEE802.11b/g/n standards, and the wireless transmission rate can reach up to 300Mbps.

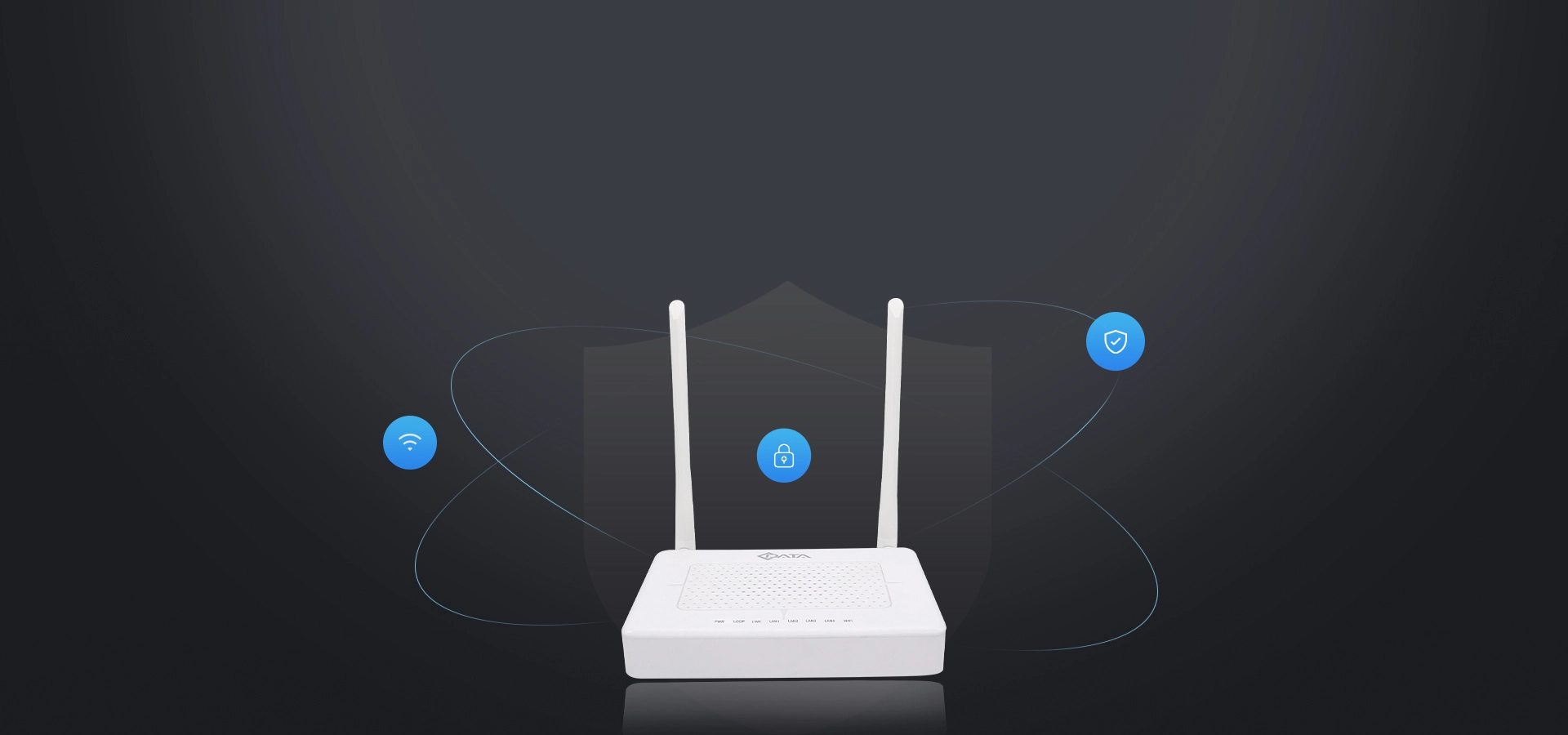

Supports Wireless Encryption Network Security is Guaranteed
Supports Wireless Encryption Network Security is Guaranteed

In terms of wireless security, it supports WEP/WPA/WPA2 and other wireless encryption standards, which greatly improves the security of network transmission.

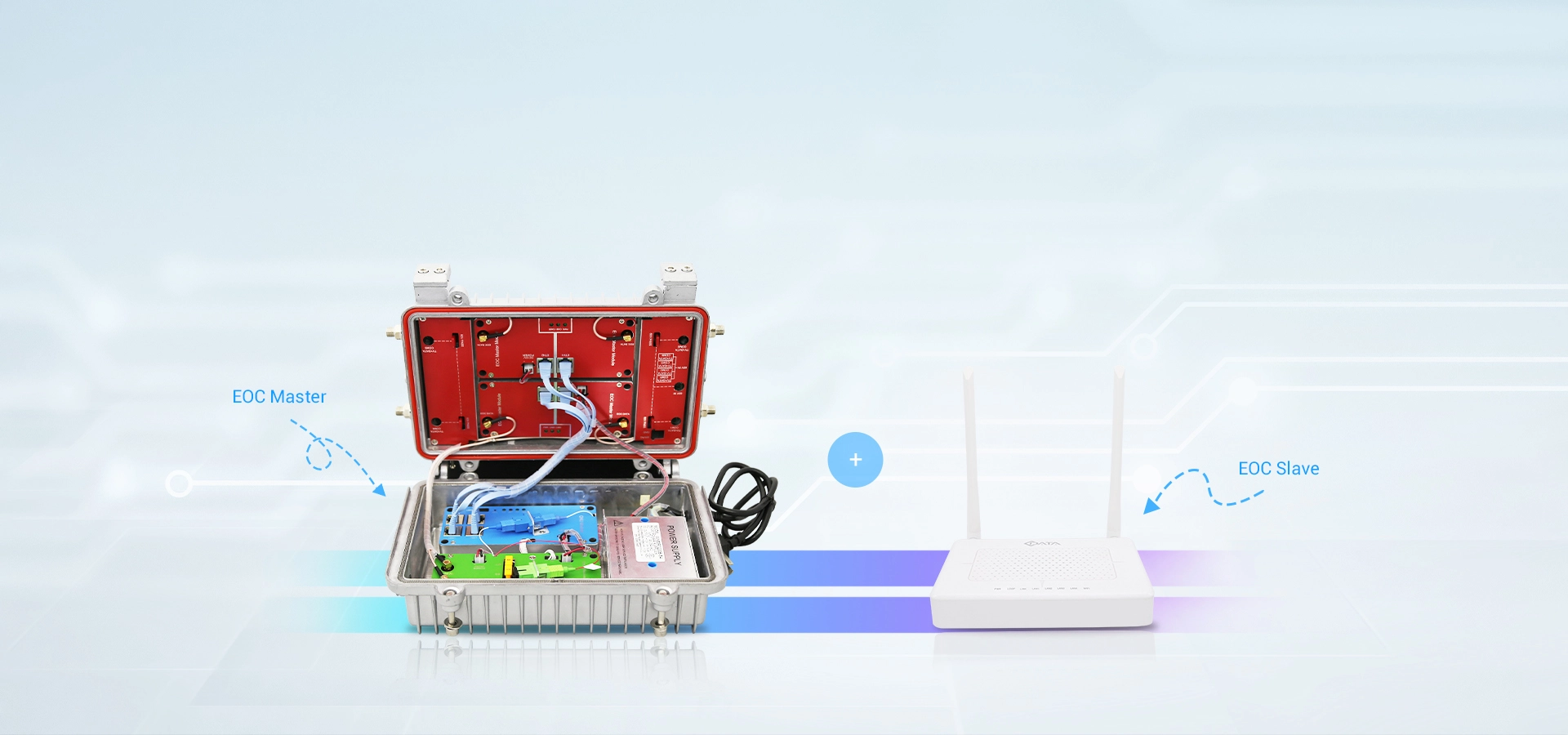

Flexible Deployment and Easy Installation
Flexible Deployment and Easy Installation

It can be used in conjunction with EOC master to build a layer 2 Ethernet data transmission channel on the cable TV coaxial network, which is convenient for networking and flexible deployment.

SPECIFICATIONS

ModelCD5204W
RF interface1*TV(RF signal) OUTPUT, metric/inch F connector, 1*CABLE(MIX)INPUT, metric/inch F connector
Ethernet interface4*10/100M auto-negotiation, RJ45
Power interface1*DC12V power supply interface
EOC StandardIEEE P1901(Draft), HomePlug AV
Ethernet StandardIEEE 802.3, IEEE 802.3x, IEEE 802.3u, IEEE802.1P, IEEE802.1Q
WIFIWIFI antenna
2 external antennas, 1 built in antennas
Throughput
IEEE 802.11b: 11Mbps, IEEE 802.11g: 54 Mbps, IEEE 802.11n: 300Mbps
Channel
13*Channel, 1,2,3,4,5,6,7,8,9,10,11,12,13
Receive sensitivity
11Mbps:≤-89dBm, 54 Mbps:≤-76dBm, HT20 MCS7:≤-72dBm, HT40 MCS7:≤-68dBm
RF output lever
802.11n: 16.5dBm
Size160mm(L) x139.5mm(W) x 28.5mm (H)
Power consumption<5W


See More
Take Back

RELATED PRODUCTS


Item


EOC SLAVE

CD5204


EOC SLAVE

CD5204W

Specifications
4*FE RJ45 + 1*RF CATV(F-Type) + 1*Mixed input(F-Type)4*FE RJ45 + 1*RF CATV(F-Type) + Wi-Fi
Interface &indicatorRF interface1*TV(RF signal) OUTPUT, metric/inch F connector
1*CABLE(MIX)INPUT, metric/inch F connector		1*TV(RF signal) OUTPUT, metric/inch F connector
1*CABLE(MIX)INPUT, metric/inch F connector
Ethernet interface4*10/100M auto-negotiation, RJ454*10/100M auto-negotiation, RJ45
Power interface1*DC12V power supply interface1*DC12V power supply interface
LED indicators1*power indicator
1*system indicator
1C*ABLE indicator
LAN indicator(each Ethernet port has 1 indicator)		1*power indicator
1*system indicator
1C*ABLE indicator
1*WIFI indicator
LAN indicator(each Ethernet port has 1 indicator)
PerformanceparametersRF parametersFrequency:7.5-65MHz
Output level:110±5dBuv		Frequency:7.5-65MHz
Output level:110±5dBuv
Receive sensibility:-65dB
Return loss:>16dB
Output impedance:75Ω		Receive sensibility:-65dB
Return loss:>16dB
Output impedance:75Ω
TransmissionPHY Layer:600Mbps
Throughput on MAC Layer:320Mbps		PHY Layer:600Mbps
Throughput on MAC Layer:320Mbps
Modulation ModeOFDM– 2690-carriers
4096/1024/256/64/16/8-QAM, QPSK, BPSK, ROBO		OFDM– 2690-carriers
4096/1024/256/64/16/8-QAM, QPSK, BPSK, ROBO
Working ModeTDMA/CSMATDMA/CSMA
Encryption ModeAES-128AES-128
StandardEOC StandardIEEE P1901(Draft)
HomePlug AV		IEEE P1901(Draft)
HomePlug AV
EthernetStandardIEEE 802.3, IEEE 802.3x, IEEE 802.3u
IEEE802.1P, IEEE802.1Q		IEEE 802.3, IEEE 802.3x, IEEE 802.3u
IEEE802.1P, IEEE802.1Q
SoftwareNetwork ManagementWEB, CLI, SNMPWEB, CLI, SNMP
Software FeaturesVLAN, QOS, Bandwidth Control, Broadcast stormlimitationVLAN, QOS, Bandwidth Control, Broadcast stormlimitation
PhysicalFeaturesPower supply & ConsumptionPower adapter:12VDC 0.5A
Power consumption：<5W		Power adapter:12VDC 0.5A
Power consumption：<5W
Dimension160mm(L) x139.5mm(W) x 28.5mm (H)160mm(L) x139.5mm(W) x 28.5mm (H)
Weight0.3kg0.3kg
EnvironmentAttributeWork temperature：0～55℃
Stock temperature：-30～60℃
Work humidity：10%～90%, non-condensation
Stock humidity：5%～95%, non-condensation		Work temperature：0～55℃
Stock temperature：-30～60℃
Work humidity：10%～90%, non-condensation
Stock humidity：5%～95%, non-condensation


ORDERING INFORMATION

NO.Product ModelSpecificationsAccessories
1CD5204-Bxx-M4104*FE RJ45 + 1*RF CATV(F-Type) + 1*Mixed input(F-Type)
