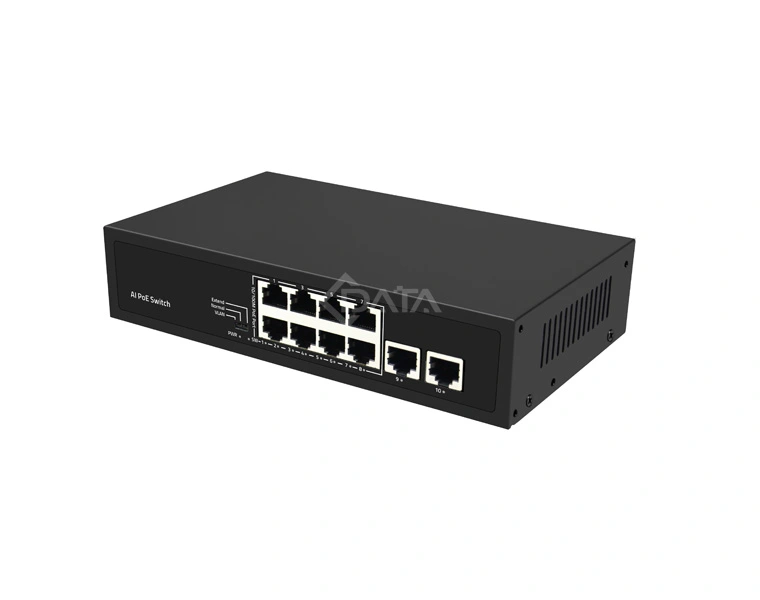

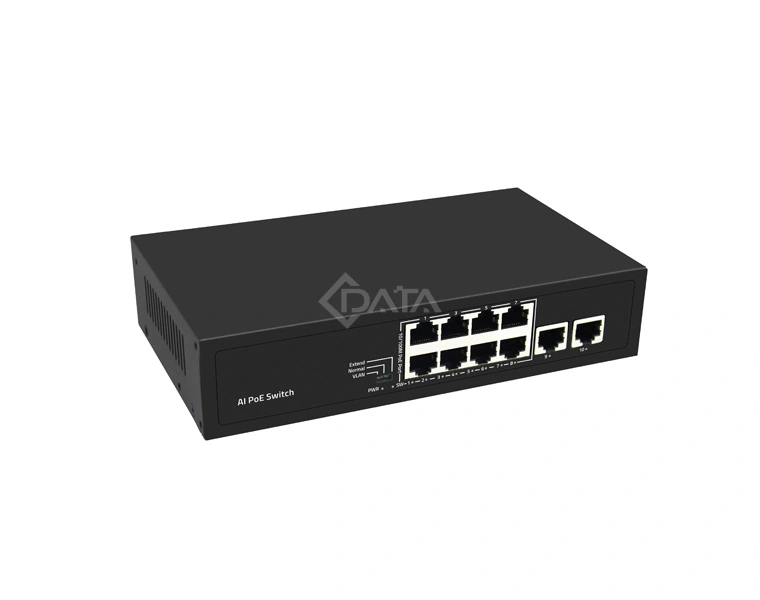

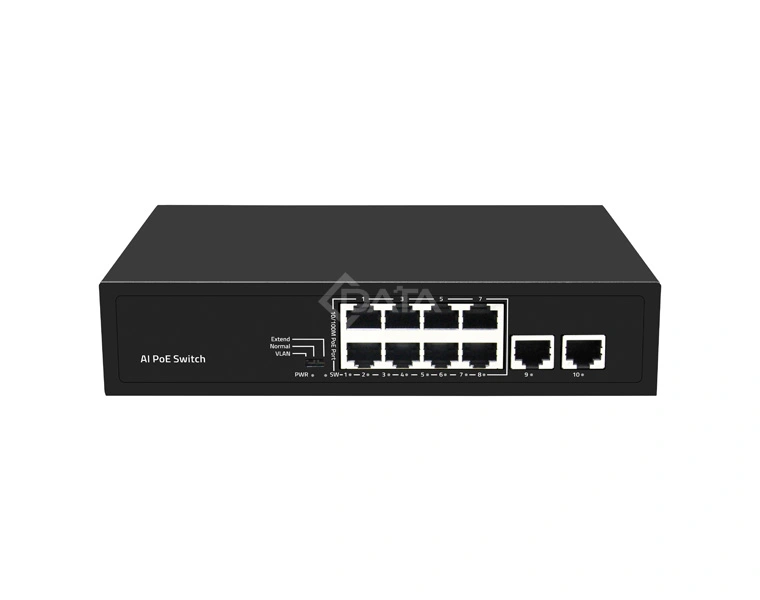

CS1082E-POE
Unmanaged Ethernet PoE Switch 8FE + 2FE

The PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It provides 8*10/100Mbps PoE ports and 2*100Mbps Uplink ports.It supports IEEE 802.3af/at standards. Advanced auto-sensing algorithm gives power to 802.3af/at end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.

The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.

Technical Specifications

Item
CS1082E-POE
Specifications
8*RJ45 PoE + 2*100M RJ45
Downlink ports
8*10/100M BASE-T RJ45
Uplink ports
2*10/100M BASE-T RJ45
Switching capability
2Gbps
Packets switching capability
1.488Mpps
Switching method
Storage forwarding
LED light
PWR(power supply)

SW(DIP)

1-6 Green(Link&Data)
MAC table size
1K

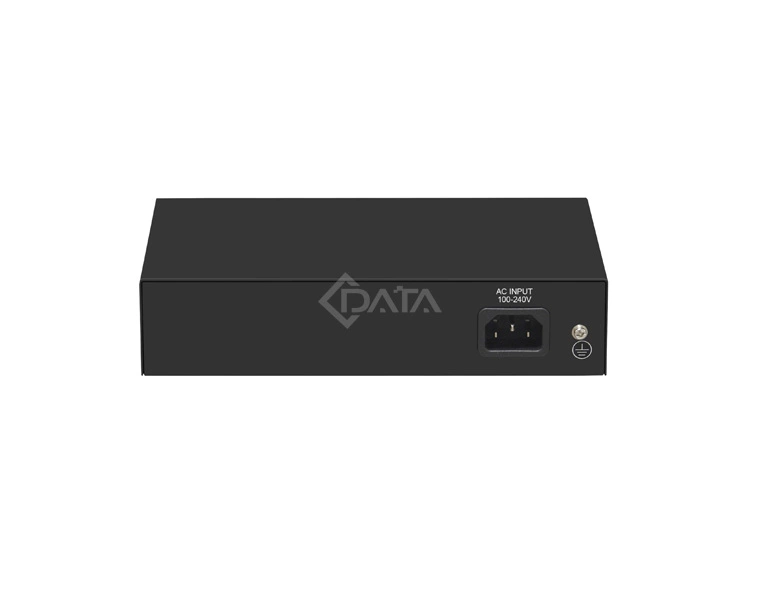

Input PowerInput VoltageInput: 100-240V AC, 50/60Hz
PoE Power
Max Power: 120W

PoE Standard: IEEE802.3af/at

Max. 30W output of single PoE port
Enviroment parametersWork temperature-10 - to 50℃
Storage temperature-40 - 70℃
Work humidity10% to 90%
Storage humidity10% to 95%
Dimention(W*D*Hmm)
200*118*44 mm
Weight
N.W: 0.6Kg; G.W: 0.9Kg
Certification compliance
FCC CE ROHS
Installation
Desktop
